Yaesu FT-411 MKII Operating Manual

144 mhz fm transceiver
Hide thumbs Also See for FT-411 MKII:
Table of Contents

Advertisement

Quick Links

See also: Technical Supplement

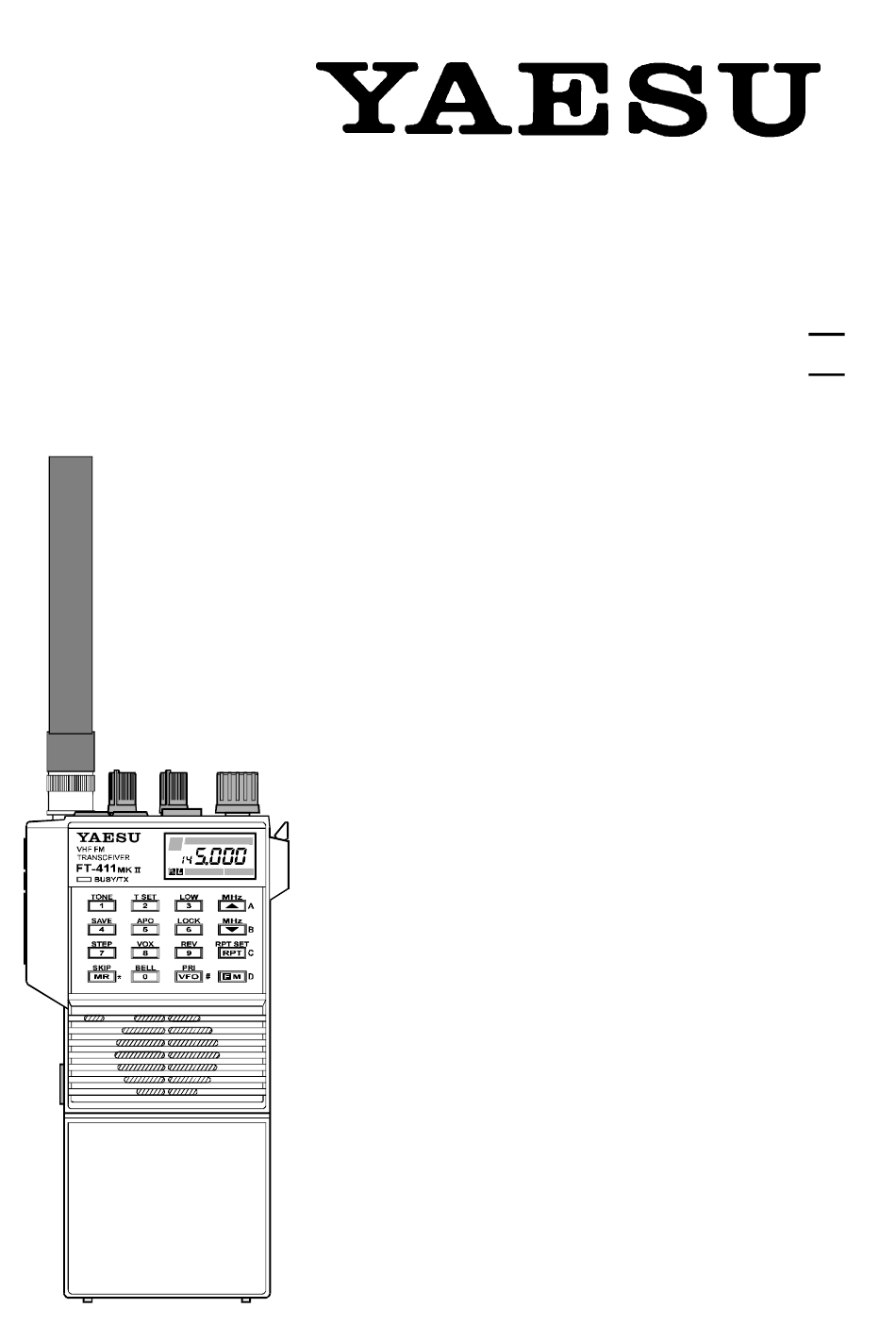

144 MH
FM TRANSCEIVER
Z
FT- 411
MKII
O
M
PERATING
ANUAL
YAESU MUSEN CO., LTD.
1-20-2 Shimomaruko, Ota-Ku, Tokyo 146-8649, Japan
YAESU U.S.A.
17210 Edwards Rd., Cerritos, CA 90703, U.S.A.
YAESU EUROPE B.V.
P.O. Box 75525 1118 ZN, Schiphol, The Netherlands
YAESU UK LTD.
Unit 12, Sun Valley Business Park, Winnall Close
Winchester, Hampshire, SO23 0LB, U.K.
YAESU GERMANY GmbH
Am Kronberger Hang 2, D-65824 Schwalbach, Germany
YAESU HK LTD.
11th Floor Tsim Sha Tsui Centre, 66 Mody Rd.,
Tsim Sha Tsui East, Kowloon, Hong Kong

Advertisement

Table of Contents
loading

Related Manuals for Yaesu FT-411 MKII

Summary of Contents for Yaesu FT-411 MKII

  • Page 1 144 MH FM TRANSCEIVER FT- 411 MKII PERATING ANUAL YAESU MUSEN CO., LTD. 1-20-2 Shimomaruko, Ota-Ku, Tokyo 146-8649, Japan YAESU U.S.A. 17210 Edwards Rd., Cerritos, CA 90703, U.S.A. YAESU EUROPE B.V. P.O. Box 75525 1118 ZN, Schiphol, The Netherlands YAESU UK LTD.

  • Page 2: Table Of Contents

    Contents Specifications ......................2 Accessories & Options ....................3 Controls & Connectors .................... 4 Top Panel ......................4 Side Panel ......................5 Front Panel ......................6 Accessories & Options ....................7 Battery Packs and Cases ..................7 Battery Removal and Replacement ................ 8 Battery Chargers ....................
  • Page 3 CTCSS tone*, and includes a bargraph S/PO meter. Yaesu’s power saver system can be set by the operator for optimum sampling/standby ratio, or can be turned off for packet operation. And our new APO (Au- tomatic Power Off) system shuts off the transceiver to avoid dead batteries if you doze off or are called away unexpectedly.

  • Page 4: Specifications

    Specifications GENERAL Frequency coverage (MHz): 144 to 147.9995 (version A) 144 to 145.9875 (version B) Channel steps: 5, 10, 12.5, 20 & 25 kHz Standard repeater shift: 600 kHz Emission type: Supply voltage: 5.5 to 15.0 VDC Current consumption: Stby (1sec Save) 7mA; Rcv: 150mA; Transmit (6W): 1300 mA;...

  • Page 5: Accessories & Options

    Mobile Hanger Bracket Availability of accessories may vary: some accessories are supplied as standard per local regulations and requirements, others may be unavailable in some regions. Check with your Yaesu dealer for additions to the above list. FT-411 PERATING ANUAL...

  • Page 6: Controls & Connectors

    Controls & Connectors ANEL • ‡ † … EAR Jack This 2-conductor mini phone jack provides audio output for an external earphone or optional Speaker/Mic (listed on previous page). When a plug is installed in this jack the front panel loud- speaker is disabled.

  • Page 7: Side Panel

    Controls & Connectors ANELS • LAMP Button Press this button to illuminate the display and keypad when • necessary. ‚ ‚ Monitor (Burst) Button In the USA version, this button opens the squelch momen- ƒ tarily without disturbing the setting of the SQL control. In the European version, this button activates the 1750 Hz Burst tone generator.

  • Page 8: Front Panel

    Controls & Connectors RONT ANELS • BUSY/TX Indicator Lamp • This LED indicator glows green when the noise squelch is open during reception, and ƒ red when transmitting. ‚ Keypad These sixteen keys select the various operat- ‚ ing features of the transceiver during recep- tion, and generate DTMF (Dual Tone Multi Frequency) tone pairs during transmission.

  • Page 9: Accessories & Options

    In some countries, one or more of the above may be supplied with the transceiver. If not, contact the nearest Yaesu dealer to purchase the desired battery pack or case. We do not recommend the use of any other type of battery with the FT-411 , and using another Ⅱ...

  • Page 10: Battery Removal And Replacement

    Accessories & Options ATTERY EMOVAL AND EPLACEMENT • Make sure that the VOL control is set into the OFF click-stop, and remove the protec- tive soft or hard case, if used. ‚ Grasp the upper portion of the transceiver with your left hand, so that your palm is over the speaker and your left thumb is on the UNLOCK button.

  • Page 11: Speaker/Microphones

    Accessories & Options NC-29 5-hour Quick Charger The NC-29 is a universal battery charger with quick and trickle charging modes for the FNB-11H, FNB-12, FNB-14 and FNB-17 Ni-Cd packs. The quick mode is automati- cally selected initially, to bring the battery pack up to full charge as fast as safely possible using an internal timer.

  • Page 12: Antenna Considerations

    Accessories & Options NTENNA ONSIDERATIONS While the supplied YHA-16 rubber flex antenna is convenient for short-range operation, the standard BNC connector allows use of a higher gain antenna for extended range base or mobile operation. However, any antenna used with the FT-411 must have an imped- Ⅱ...

  • Page 13: Operation

    Operation descriptions, keep the • FT-411 Operator’s Quick Reference Card” handy in case Ⅱ you need to refresh your memory. RELIMINARY PERATING NFORMATION Before operating the transceiver for the first time, charge the battery pack completely (if using Ni-Cd batteries) as described on pages 8 and 9. If using the FBA-17 battery case, install the batteries as described on page 8.

  • Page 14: Important Keypad Information

    Operation MPORTANT EYPAD NFORMATION If the keypad beeper is enabled, each key on the keypad produces its own beep (or combi- nation) when the key action is accepted. If you don’t hear a beep when a key is pressed, either the volume is set too low, or the keystroke was not accepted. During transmission, key tones are the DTMF tone pairs (which are also transmitted).

  • Page 15: Vfo Frequency & Step Selection

    Operation VFO F & S REQUENCY ELECTION Make sure the keypad is unlocked, and press the [PRI(VFO)] button, if necessary, to select the VFO mode (see box below). The FT-411 has two vfos, labelled “A” and “B”, either Ⅱ of which can be used for all of the procedures described in this manual. You can change vfos with the [PRI(VFO)] button at any time, allowing one to serve as a 50th memory.

  • Page 16: Transmitting

    Operation RANSMITTING Press [F/M] and then [LOW(3)] to toggle between high and low power output. The pitch of the keypad beeper will indicate whether high or low power is being selected, and “LOW” is displayed above the 1 MHz digit when low power is selected (we recommend using low power whenever possible to minimize possible interference to other stations and prolong battery life).

  • Page 17: Changing The Standard Repeater Shift

    Operation once for minus shift, or twice for plus shift (“–” or “+” displayed above the 10 kHz fre- quency digit). When you press the PTT switch to transmit (or [F/M] and [REV(9)] to reverse transmit and receive frequencies), the display will shift down or up by the pro- grammed offset, if in band (or else ‘Err’...

  • Page 18: Memory Storage

    Operation EMORY TORAGE The FT-411 offers forty-six general purpose memories, numbered 1 through 46, and Ⅱ three special memories, labelled C, L and U. All of these memories can store separate receive and transmit frequencies or repeater shift, and tone squelch data (if the optional FTS-17A is installed).

  • Page 19: Hiding And Erasing Memories

    Operation You can retune a selected memory by pressing the [SKIP(MR)] key: a dotted underline (..) appears under the channel box at the upper left, and you can tune the displayed memory frequency in the same ways as described for the vfos. If you want to store the new ‚...

  • Page 20: Scanning

    Operation CANNING Before starting the scanner, make sure the SQL control is set to squelch off the noise on a clear channel. Scanning is activated and deactivated by the [ p ] / [ q ] keys. Just press and hold either key for more than ½-second to start the scanner.

  • Page 21: Priority Channel Monitoring

    Operation To cancel PMS operation, stop scanning, if necessary (DIAL knob, [ p ] / [ q ] keys or PTT), and press the [SKIP(MR)] key to return to regular memory operation, or the [PRI(VFO)] key to return to VFO mode. RIORITY HANNEL ONITORING...

  • Page 22: Tone Squelch/Pager Operation

    Operation QUELCH AGER PERATION The FT-411 can be used to silently monitor for calls on busy channels, and to transmit Ⅱ CTCSS tones, when the optional FTS-17A Tone Squelch Unit is installed. The transmit (encode) function superimposes a subaudible tone (at a frequency too low to be heard) on the transmitted carrier, while the decode function monitors receiver audio through a narrow filter at the same subaudible frequency, keeping the squelch closed until a matching tone is received.

  • Page 23: Power Saver

    Operation OWER AVER The Power Saver allows the transceiver to monitor a frequency for activity while drawing as much as 400% less current than is required for normal squelched reception. This is done by removing power from all circuits (except a timer and the display) for programmable intervals.

  • Page 24: Apo (Automatic Power-Off)

    Operation APO (A UTOMATIC OWER This feature automatically puts the transceiver to sleep if the keypad/DIAL knob, PTT or [CALL/DTMF] buttons are not used for a selectable period of 10, 20 or 30 minutes. One minute before going to sleep, a warning melody will sound ( ), and the APO clock icon will begin to blink.

  • Page 25: System Reset

    Operation To store a DTMF memory: • Activate the DTMF memory mode as just described. ‚ Press and hold the [F/M] key for ½-second (until the second beep sounds). ƒ ‚ Within 5 seconds of step , press a numbered key corresponding to the DTMF memory number you want to store.

  • Page 26: In Case Of Problems

    In Case of Problem The basic features of this transceiver are not complicated, but it is still possible to get lost, at least until you have had the chance to learn all of the functions of the keypad and display. If the display shows nothing at all, check the power switch (VOL control), and if necessary, remove the battery pack and check that the contacts are clean.

  • Page 27: Data Cloning

    DATA Cloning It is possible to copy all of the stored data from one transceiver to another (both must be FT-411 ’s, of course) without having to re-enter everything from the keypad. To do Ⅱ this, you will need to construct a cable with two 2.5 mm micro phone plugs, and follow the procedure here: •...

  • Page 28: Getting The Most From Your Batteries

    Getting the Most from Your Batteries How long the batteries last between charges or replacement depends largely on your oper- ating habits, and how you care for the batteries (if using a rechargeable Ni-Cd pack). The FT-411 offers a variety of ways to conserve battery consumption, and thus to extend Ⅱ...
  • Page 29 Getting the Most from Your Batteries Power and Charge Life Chart Battery Model Power (Watts) Charge Life* (hours, approx.) Dry Cell Case FBA-17 (UM-3 × 6) 6.0 (w/ Manganese) 18.0 (w/ Alkaline) 7.2 V Ni-Cd Packs FNB-17 (600 mAh) 12.0 FNB-14 (1000 mAh) 12 V Ni-Cd Packs FNB-11H (700 mAh)
  • Page 30 Note FT-411 PERATING ANUAL MKII...
  • Page 31 CAUTION! Changes or modifications to this device not expressly approved by Yaesu Musen could void the user's authorization to operate this device. 1. Changes or modifications to this device not expressly approved by Yaesu Musen could void the user's authorization to operate this device.
  • Page 32 Copyright 1999 No portion of this manual Yaesu Musen Co., Ltd. may be reproduced All rights reserved. without the permission of Yaesu Musen Co., Ltd. Printed in Japan 9904o-0K E 2 5 8 0 1 5 0 0...
