weBoost Home 4G Quick Install Manual

Note:
RECOMMENDED: INSTALLING THE LIGHTNING SURGE
To Outside
PROTECTOR
(SOLD SEPARATELY)
Antenna
INSTALL THE LIGHTNING SURGE PROTECTOR (LSP) CLOSE
Lightning
TO THE SIGNAL BOOSTER. ATTACH THE CABLE FROM THE
Surge Protector
(sold separately) OUTSIDE ANTENNA TO THE SURGE PROTECTOR. ENSURE
THE LSP IS PROPERLY GROUNDED.
Ground Wire
(not included)
#859992-75 ohm may be purchased at
To Signal Booster
www.weboost.com or by calling 800-204-4104.
IT IS VERY IMPORTANT TO POWER YOUR SIGNAL BOOSTER
USING A SURGE PROTECTED AC POWER STRIP WITH AT LEAST A
1000 JOULE RATING.
FAILURE TO DO THIS WILL VOID YOUR WARRANTY IN THE EVENT
OF A POWER SURGE OR LIGHTNING STRIKE.
Modern energy efficient dual-pane windows with coatings will weaken the cellular signals
as they pass through because of a metal oxide film applied during manufacturing. If you
have dual-pane windows with energy efficient coatings, we recommend one of the other
mounting options which you can find in the full Install Guide at:
www.weboost.com/us/installguide/home4G.
Product Registration
Thank you for purchasing this weBoost product. Please take time to
register your new product at our website:
www.weboost.com/us/productregistration
Registering is quick and easy, it only takes 2-3 minutes to complete.
Your information is secure, we don't share or sell your information
to other third parties.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and (2) This device must accept any interference
received, including interference that may cause undesired operation.
RF Safety: Any antenna used with this device must be located at least 8 inches from all persons .
FCC ID: PWO460001 IC: 4726A-460001
3301 East Deseret Drive, St. George, UT 84790
web: www.weboost.com email: support@weboost.com
phone: 866-294-1660 local: 435-673-5021 fax: 435-656-2432
How It Works
Your cell phone is an essential part of your life. weBoost is here to
ensure you have seamless connections on all your cellular devices.
The Home 4G cellular signal booster is a effective solution to all
those times you've had to walk into another room, or even outside,
to find a stronger, more reliable cell signal. Installation is simple and
can be completed with minimal tools.
Signal Received
and Transmitted
NEED ASSISTANCE? WE CAN HELP!
Contact our U.S.- BASED CUSTOMER SUPPORT:
n C ontact our U.S.- based customer support team at
1-866-294-1660 or email at support@weboost.com
n Go online for how to resolve the most common issues at
www.weboost.com/us/customersupport
n F ind a weBoost Certified Installer on our web site at
www.weboost.com/us/installers
Installation is simple, but we're here to make it even easier.
111498_Rev01_10.08.14
For Sales Information Please Contact RoadTrucker Inc (www.RoadTrucker.com)
8312 Sidbury Rd.; Wilmington, NC 28411 - (800) 507-0482 / (910) 686-4281
Home 4G
Desktop
Panel
Antenna Antenna
See install guide for additional mounting options.
Home 4G
™
Quick Install Guide
For more information refer to full Install Guide at:
www.weboost.com/us/installguide/home4G
Package Contents

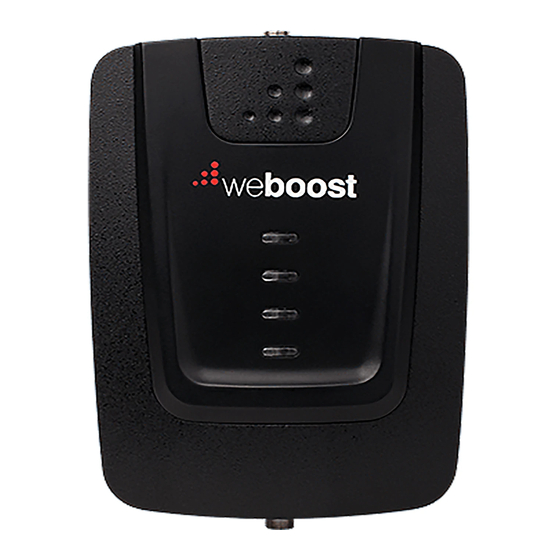

Home 4G Signal Booster Cradle Antenna Kit
Desktop Antenna AC Power Supply
TM
Cellular Signal Booster
Quick Install Diagram 460101
Finding Signal / Install Inside Window Mount Cradle
Insert the Outside Antenna into the Cradle
Connect Coax Cable to Outside Antenna
Need help? www.WilsonElectronics.com Tech Support 866-294-1660
Mon.- Fri. Hours: 7 am to 6 pm MST
Connect Cables to Home 4G
Connect Power Supply
Coax Cable
Cable Connector
