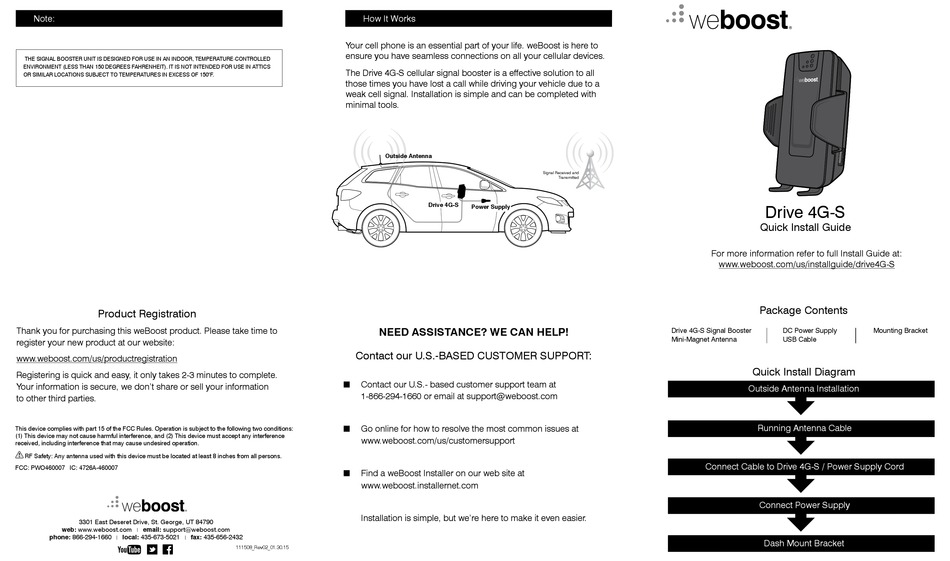

weBoost Drive 4G-S Quick Install Manual

Note:
THE SIGNAL BOOSTER UNIT IS DESIGNED FOR USE IN AN INDOOR, TEMPERATURE-CONTROLLED
ENVIRONMENT (LESS THAN 150 DEGREES FAHRENHEIT). IT IS NOT INTENDED FOR USE IN ATTICS
OR SIMILAR LOCATIONS SUBJECT TO TEMPERATURES IN EXCESS OF 150°F.
Product Registration
Thank you for purchasing this weBoost product. Please take time to
register your new product at our website:
www.weboost.com/us/productregistration
Registering is quick and easy, it only takes 2-3 minutes to complete.
Your information is secure, we don't share or sell your information
to other third parties.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and (2) This device must accept any interference
received, including interference that may cause undesired operation.
RF Safety: Any antenna used with this device must be located at least 8 inches from all persons .
FCC: PWO460007 IC: 4726A-460007
3301 East Deseret Drive, St. George, UT 84790
web: www.weboost.com email: support@weboost.com
phone: 866-294-1660 local: 435-673-5021 fax: 435-656-2432
How It Works
Your cell phone is an essential part of your life. weBoost is here to
ensure you have seamless connections on all your cellular devices.
The Drive 4G-S cellular signal booster is a effective solution to all
those times you have lost a call while driving your vehicle due to a
weak cell signal. Installation is simple and can be completed with
minimal tools.
Outside Antenna
NEED ASSISTANCE? WE CAN HELP!
Contact our U.S.-BASED CUSTOMER SUPPORT:
n C ontact our U.S.- based customer support team at
1-866-294-1660 or email at support@weboost.com
n Go online for how to resolve the most common issues at
www.weboost.com/us/customersupport
n F ind a weBoost Installer on our web site at
www.weboost.installernet.com
Installation is simple, but we're here to make it even easier.
111508_Rev02_01.30.15
Signal Received and
Transmitted

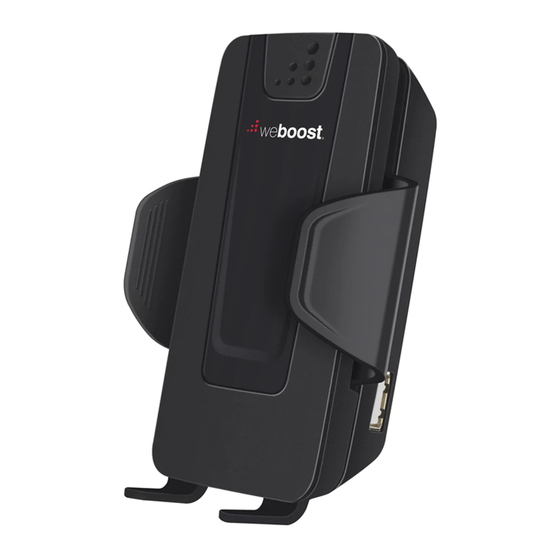

Drive 4G-S
Power Supply
Drive 4G-S
Quick Install Guide
For more information refer to full Install Guide at:
www.weboost.com/us/installguide/drive4G-S
Package Contents
Drive 4G-S Signal Booster DC Power Supply
Mini-Magnet Antenna USB Cable
TM
Cellular Signal Booster
Quick Install Diagram
460101
Outside Antenna Installation
Running Antenna Cable
Connect Cable to Drive 4G-S / Power Supply Cord
Need help? www.WilsonElectronics.com Tech Support 866-294-1660
Mon.- Fri. Hours: 7 am to 6 pm MST
Connect Power Supply
Dash Mount Bracket
Mounting Bracket
