Chapter 7. Firewall and Client
Configuration
Additional configuration for the firewall and the SIP clients is required to make the Telecom-
muting Module work properly. The amount and nature of the configuration depends on
which Telecommuting Module Type was selected.
The DMZ type

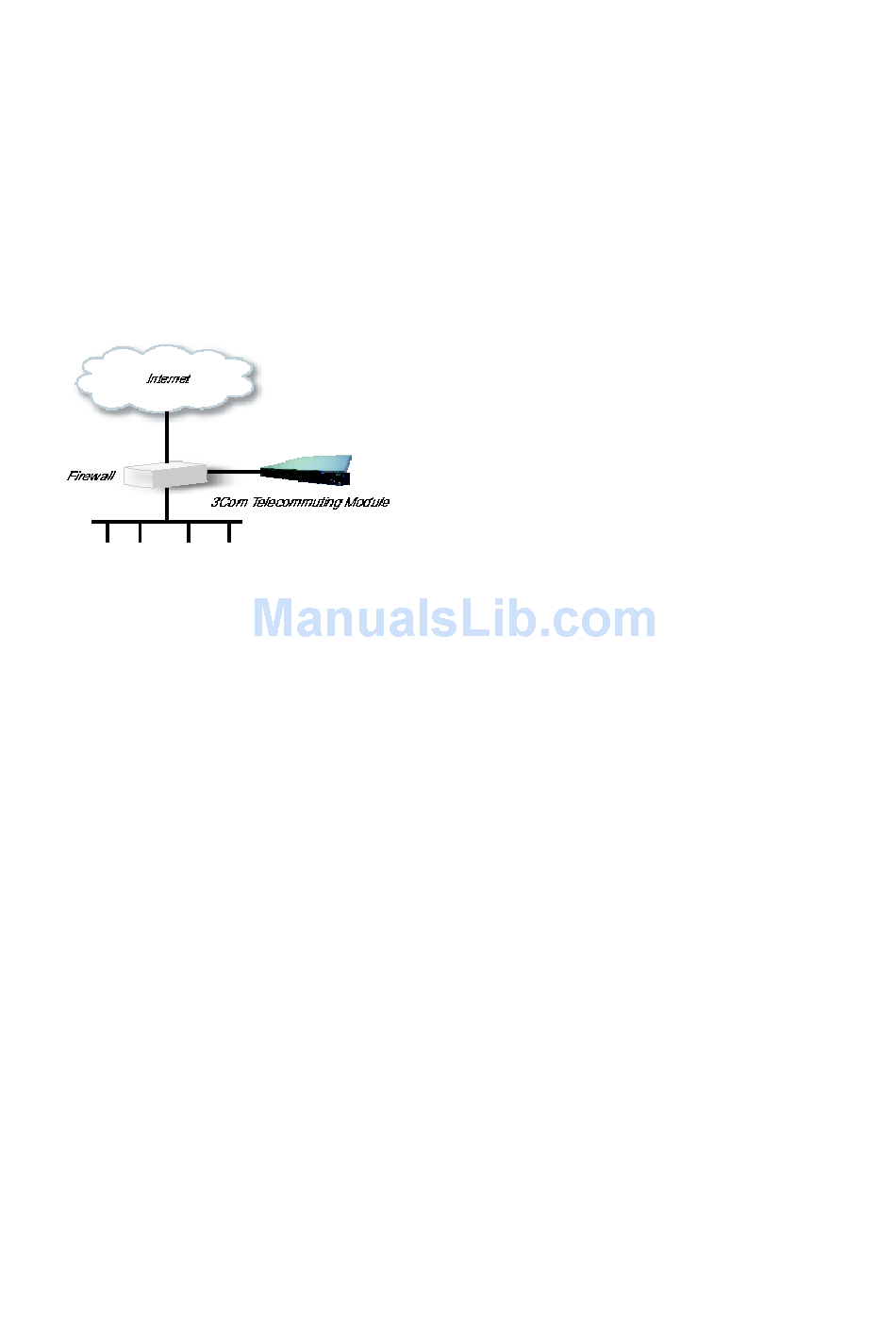

Using the DMZ type, the network configuration should look like this:
The Firewall
The firewall to which the Telecommuting Module is connected should have the following
configuration:
SIP over UDP
Let through UDP traffic between the Internet (all high ports) and the Telecommuting
•
Module (port 5060). You must allow traffic in both directions.
Let through UDP traffic between the internal networks (all high ports) and the Telecom-
•
muting Module (port 5060). You must allow traffic in both directions.
Let through UDP traffic between the Internet (all high ports) and the Telecommuting
•
Module (the port interval for media streams which was set on the Basic Settings page).
You must allow traffic in both directions.
Let through UDP traffic between the internal networks (all high ports) and the Telecom-
•
muting Module (the port interval for media streams which was set on the Basic Settings
page). You must allow traffic in both directions.
Let through UDP traffic between the Telecommuting Module (all high ports) and the In-
•
ternet (port 53). You must allow traffic in both directions. This enables the Telecommuting
Module to make DNS queries to DNS servers on the Internet. If the DNS server is located
on the same network as the Telecommuting Module, you don't have to do this step.
NAT between the Telecommuting Module and the Internet must not be used.
•
NAT between the Telecommuting Module and the internal networks must not be used.
•
SIP over TCP/TLS
