Dynojet Power Commander V Installation Instructions Manual page 6

FIG.K
FIG.L
Unplug
FIG.M
I20-034 www.powercommander.com
Unplug

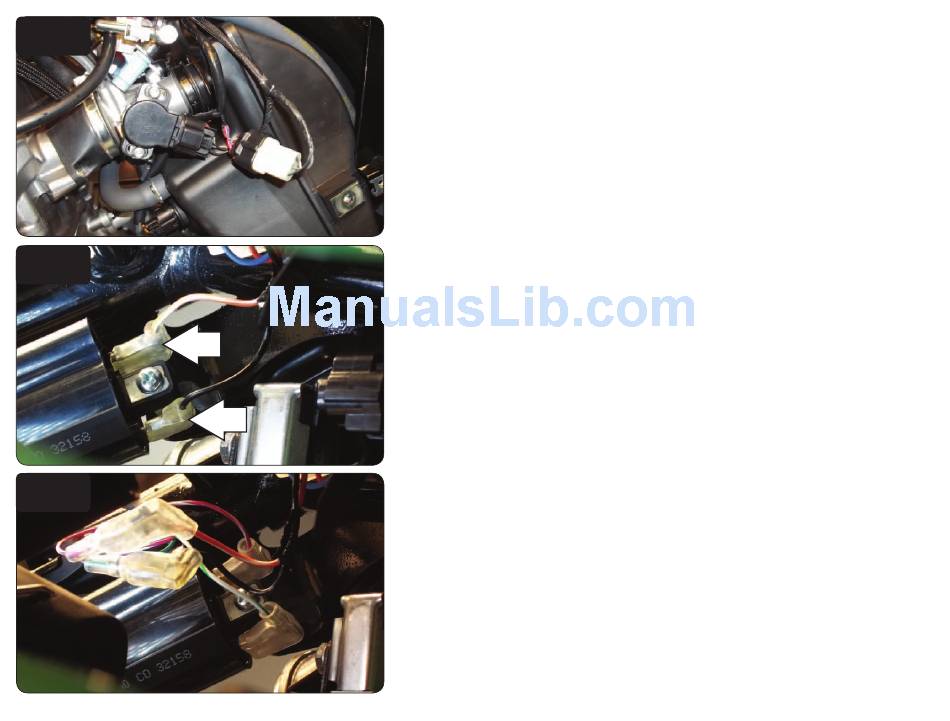

16 Plug the pair of 3-pin connectors of the PCV wiring harness in-line of the
bike's TPS and the stock wiring harness (Fig. K).
17 Locate and unplug the stock ORANGE/WHITE wire and the stock BLACK
wire from the left side Ignition Coil (Fig. L).
18 Plug the pair of PCV leads with RED/WHITE wires in-line of the stock
ORANGE/WHITE wire and the left Ignition Coil.
19 Plug the pair of PCV leads with GREEN and WHITE/GREEN wires in-line of
the stock BLACK wire and the left Ignition Coil (Fig. M).
2014 Suzuki GW250 PCV - 6
