Advanced subwoofer amplifier interface

Advertisement

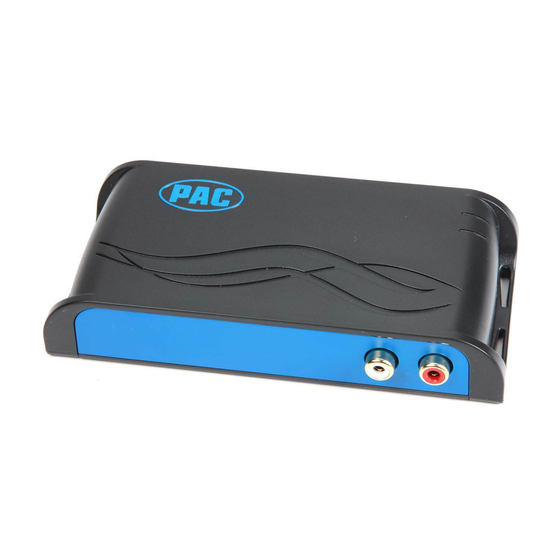

APSUB-GM61
Introduction and Features
The APSUB-GM61 provides a 2-channel non-fading output for use with an aftermarket amplifier and subwoofer. Using
the full range, fixed level head unit output, in conjunction with MOST data, the APSUB-GM61 delivers a variable 5v RMS
pre-amp output with bass equalization and level control capabilities. The signal has a 350Hz / 24dB Linkwitz-Riley low
pass filter applied. A data controlled remote amplifier turn on wire is also provided by the APSUB-GM61.
Important Notes
1. This interface is compatible in vehicles with or without Bose that are equipped with IO4, IO5 or IO6 model radios.
2. In some non-Bose radios, there may be absence of audio from the left channel when in AM, FM, and XM sources. The
APSUB-GM61 is capable of providing a work-around by passing the right channel audio through the left and right channels
when in the AM, FM and XM sources. All other sources will still offer left and right separation. See the troubleshooting
section on page 6 for additional details.
3. If originally equipped, the factory amplifier must remain in the vehicle, and connected after the APSUB-GM61 has been installed.
4. The remote output is rated at 2A of current. If more current is needed, an external relay must be used.
5. When the bass level control knob is not connected to the APSUB-GM61, the output level will default to 100%.
6. The level control knob must be connected in order to manually adjust the minimum volume settings.
7. The minimum volume level is set to a default value. If you are happy with this level in your particular application, then
additional adjustment is not required. Please refer to the Setup and Configuration section on page 2 for more details.
8. The factory radio's speed controlled volume and surround sound mode are not supported by the APSUB-GM61 outputs.
9. No adjustments can be made manually using the programming button or the factory SWC when the module is connected to a PC.
10. If the vehicle is equipped with Active Noise Cancellation (ANC), the ANC can be disabled using the included ANC-GM03
harness. See page 3.
The aftermarket amplifier must have a very solid ground and the amplifier power/ground connections
should be made before connecting the RCA's or Remote Turn On to the APSUB-GM61

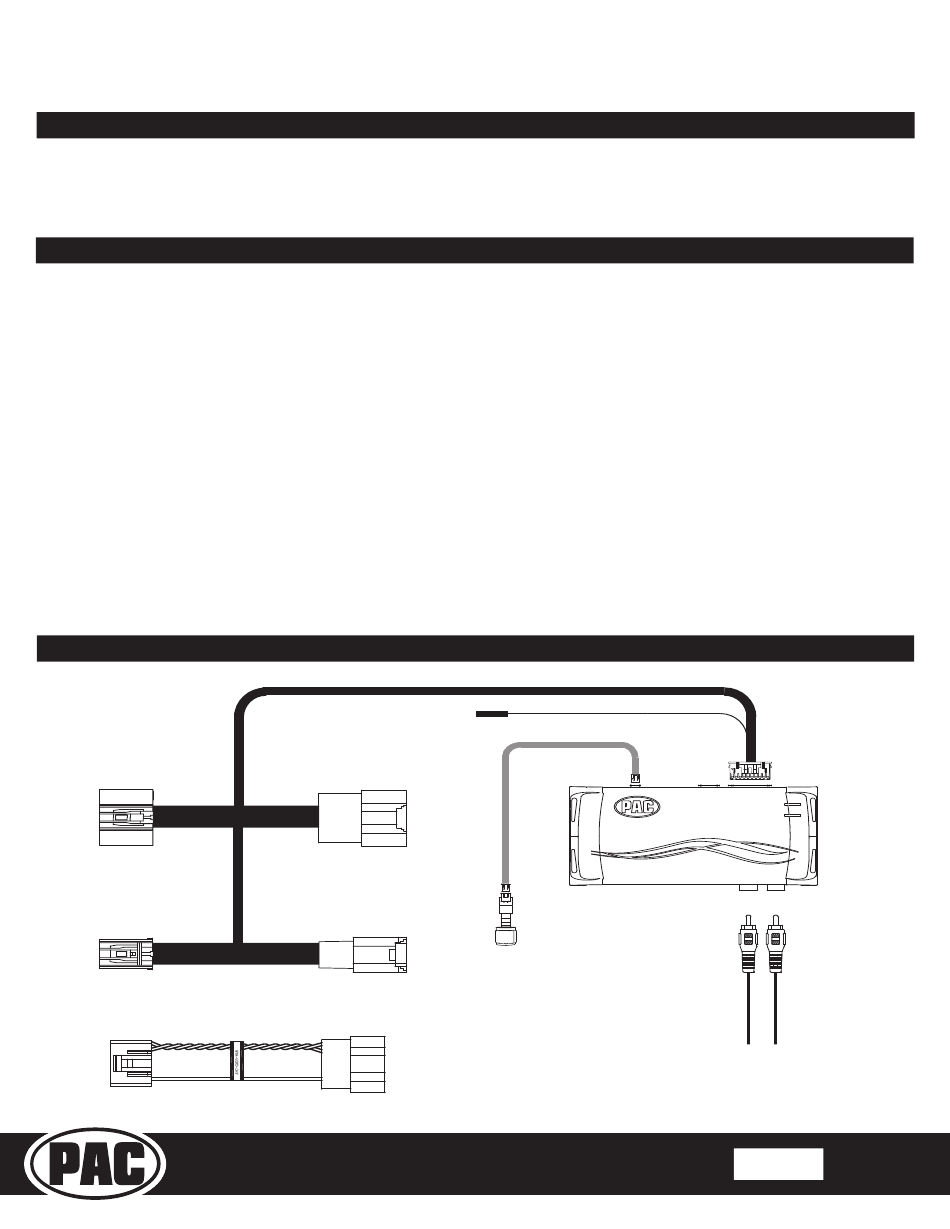

Wiring Connection Chart
To Tuner
AP4-GM61-HAR
To Factory
Amplifier
ANC-GM03-HAR
Pacific Accessory Corporation
Remote Turn On Output
2A Max Output
To Vehicle
Harness
To Amplifier
Harness
© 2020 AAMP Global. All rights reserved. PAC is a Power Brand of AAMP Global.
PAC-Audio.com
Advanced Subwoofer Amplifier Interface
for Select General Motors Vehicles
Non-Fading
Level Control
Knob
Subwoofer Outputs
To Aftermarket
Amplifier
Rev: V1
Date: 091120
Page 1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the APSUB-GM61 and is the answer not in the manual?

Questions and answers

Summary of Contents for PAC APSUB-GM61

  • Page 1 The APSUB-GM61 provides a 2-channel non-fading output for use with an aftermarket amplifier and subwoofer. Using the full range, fixed level head unit output, in conjunction with MOST data, the APSUB-GM61 delivers a variable 5v RMS pre-amp output with bass equalization and level control capabilities. The signal has a 350Hz / 24dB Linkwitz-Riley low pass filter applied.
  • Page 2: Module Layout

    4. If you would like to adjust the minimum volume, do so using one of the methods outlined on the next page. If you are happy with the default levels, no adjustments are necessary. © 2020 AAMP Global. All rights reserved. PAC is a Power Brand of AAMP Global. Rev: V1 Page 2 PAC-Audio.com...
  • Page 3 4. Press and hold the track up button on the radio dash panel controls for approximately ten seconds. PLEASE NOTE: The radio will respond to the SWC commands during this process, this is normal and has no effect on the APSUB-GM61 operation.
  • Page 4 F2: 100Hz Center Frequency | 2.00 Q Factor 60HZ Bass 80HZ Frequency 100HZ 120HZ 0.50 Bass 1.00 Q Factor 1.50 2.00 © 2020 AAMP Global. All rights reserved. PAC is a Power Brand of AAMP Global. Rev: V1 Page 4 PAC-Audio.com Date: 091120 Pacific Accessory Corporation...
  • Page 5: Firmware Updates

    The AmpPRO PC app will also allow you to update the interface with new firmware as it becomes available. Please visit www.pac-audio.com or contact our tech support department to see if there is a firmware update for your interface. To view Product Software and Hardware Version, connect the interface to your PC and select "About".
  • Page 6: Restoring Factory Settings

    3. No audio out of the left channel when in AM, FM or XM bands (only seen in non-Bose applications) - If you have access to the APSUB-GM61, flip DIP switch 3 down (on). If you do not have access to the APSUB-GM61, press and hold the Home button (on the radio control panel) for 12 seconds until 2 chimes are heard through the radio.
