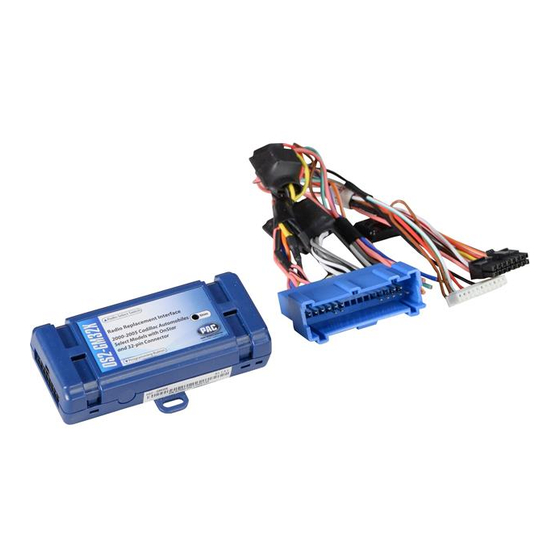

OS2-GM32X

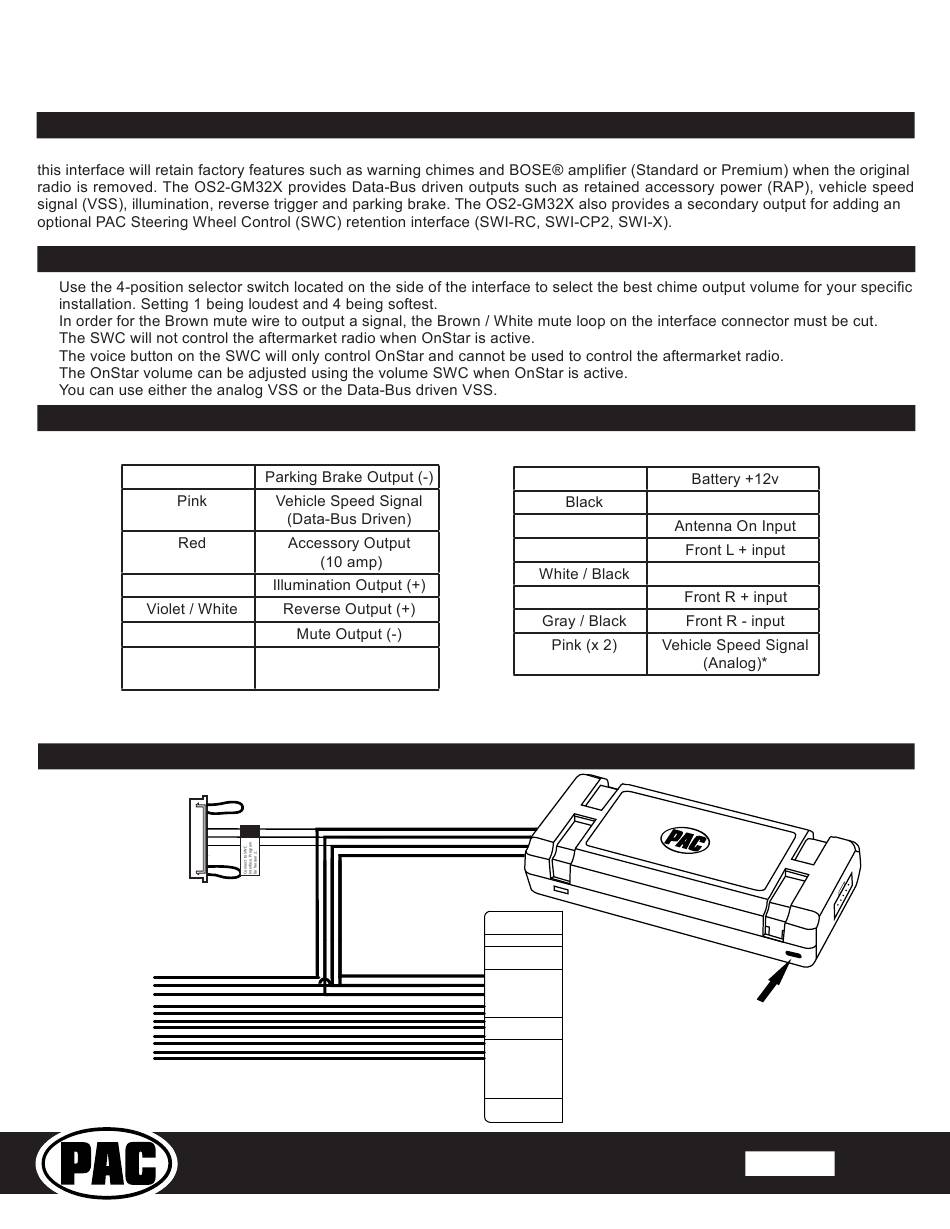

Introduction & Features
The OS2-GM32X interface allows the replacement of a factory radio in select General Motors vehicles with Class II radios. Using
Important Notes
1.
2.
3.
4.
5.
6.
Wiring Connection Chart
Interface Connector
Green
Orange / White
Brown
Brown / White
Loop
Illustration / Schematic
To optional SWC interface
Aftermarket Radio
Connections
P
ifi A
C
ti
Mute Loop
© 2017 AAMP Global. All rights reserved. PAC is a Power Brand of AAMP Global.
PAC-audio.com
Radio Replacement Interface with OnStar Retention for
select General Motors Vehicles with 32-Pin Connector
Vehicle Connector
Yellow
Blue
White
Gray
* These wires may not be present in
all vehicle harnesses.
To Vehicle
Connector
Ground
Front L - input
Acc On
LED
Page 1
Rev. 051517
