- Page 1 Quick Installation Guide GS-7505 | 5-Port PoE Gigabit Ethernet Switch Product Information I-1. Package Contents GS-7505 PoE Switch Power Adapter Quick Installation Guide 4 x Foot Pads...

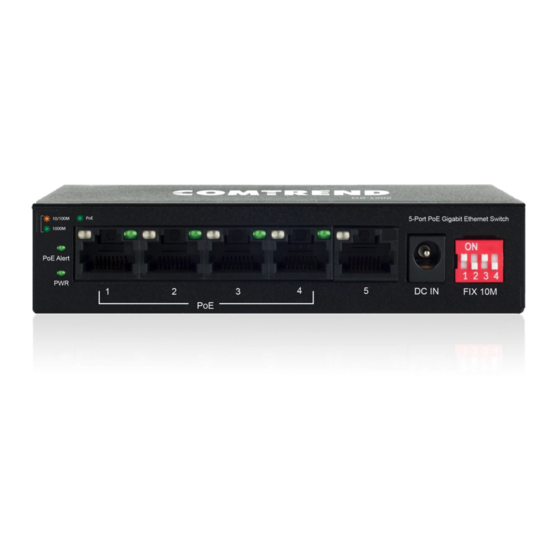

- Page 2 I-2. Hardware Overview Front Panel The front panel of the switch consists of: 5 x 10/100/1000Mbps RJ-45 Ports 1-4 RJ-45 Ports are PoE-Capable Dip Switch Panel PoE Alert LED PWR LED Port LED Indicator Bank ...
- Page 3 I-3. DIP Switch Definition DIP Switch Status Description This mode makes PoE Ports 1-2 operate at auto-negotiation 10Mbps speed duplex mode only, but the delivery distance of PoE power and network data (Extend) can reach 200m. This mode makes PoE Ports 1-2 Off (Default) operate as a general switch.
- Page 4 I-4. LED Indicator PWR: LED Status Mode Description Green Power on Power off or fail PoE Alert: LED Status Mode Description PoE power output over Green 120W PoE power output under 120W PoE: Mode LED Status Description 1000Mbps Green On/Blinking connected/data transmitting 10/100Mbps...
- Page 5 Quick Setup II-1. Switch to End Device 1. Connect the switch to local power with the included power cable. 2. Use a standard Cat5/5e Ethernet cable to connect the switch to the end devices as shown below. Switch ports will automatically adjust to the link rate of the device to which it’s connected.
-
Page 6: Troubleshooting
Troubleshooting The following information should help you diagnose basic setup or installation problems. Power LED is OFF: If the Power LED fails to light up, then check if the power cord is properly connected to external power adapter and the power source.
