Valcom Pagepac Plus V-5335621 Manual page 9

FM-14 Log Current Microphone (see Figure 8)
The wire for the FM-14 Log Current Microphone does not have to be shielded. This can be a phone line
existing in the building. Use a RJ-11 connector at the microphone. When connecting the MIC, use a
RJ-11 connector or wire directly to the terminal strip marked MIC ONLY.
Output
Level
Manual Use of the Ambient Level Controller (see Figure 7)
The ALC may be used without the FM-14 MIC. In this mode the ALC becomes a leveler or limiter for a
manual control of the sound system. The Telco input or the line input may be in this mode. The SPL
meter will not function but all other functions will work in the normal way. The manual level control on the
front panel will set the level of the sound system [Blue knob].
1/4 Modular
Cord
Line Out
+ -
C1 C

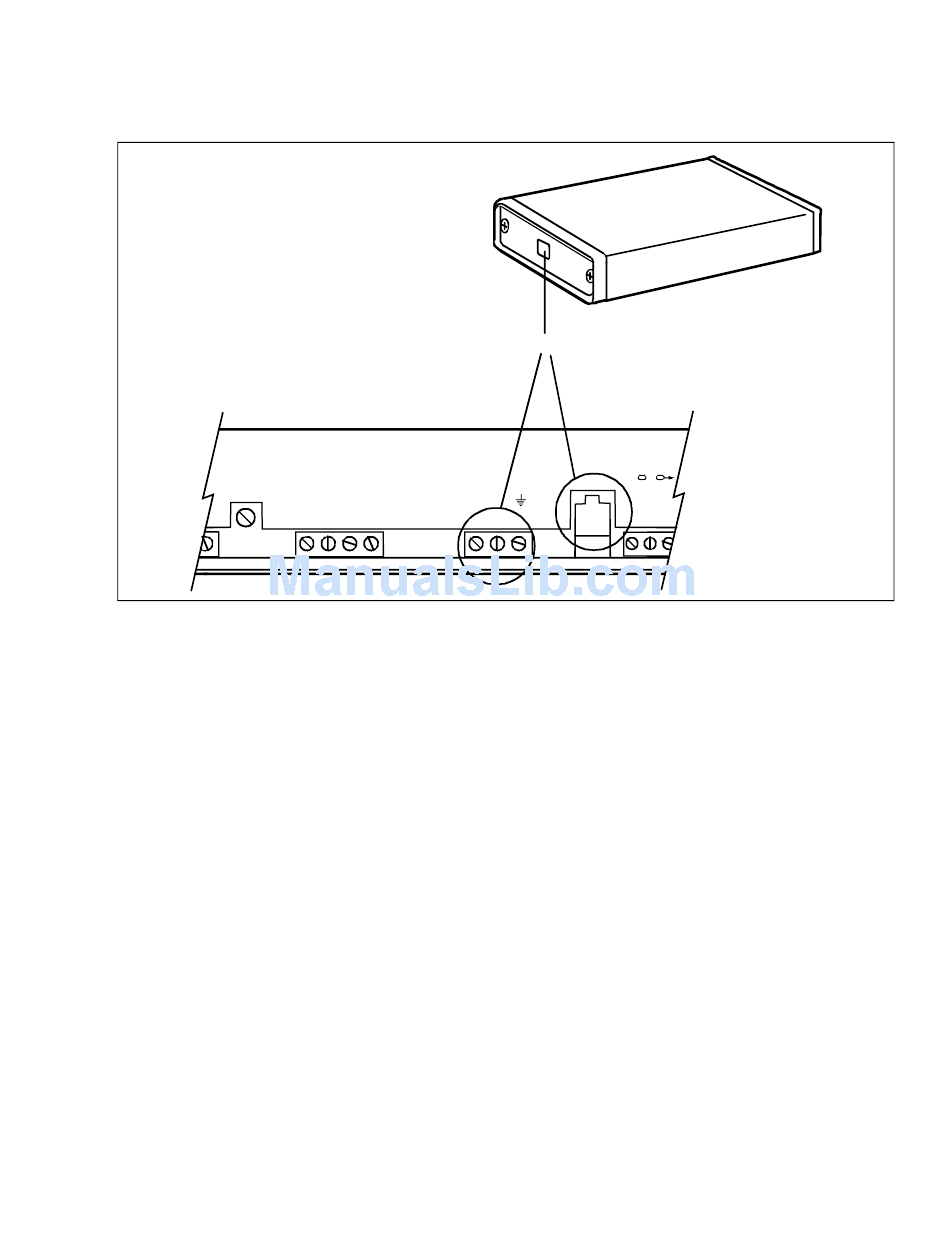

Figure 8. Connection of the FM-14 Log Current Microphone
OR
Full Modular
Cord
Mic Only
Mic Only
