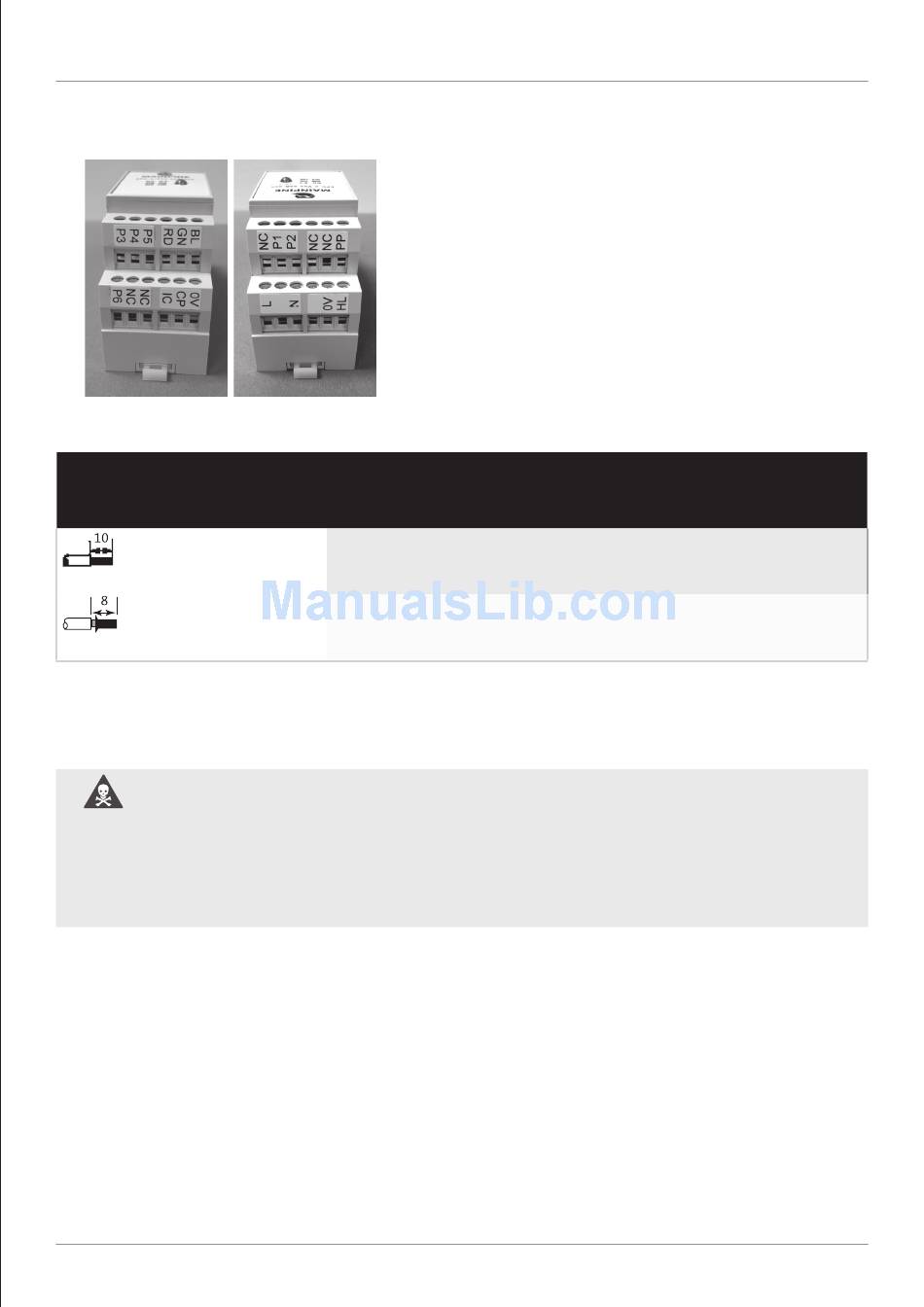

CONNECTION
FREE CABLE VERSION
STRIPPED LENGTH
Single-Core
Finely Stranded
NOTICE
The temperature stability of the cable used must be designed for at least for 75°C . Failure to observe this can result in injury to
persons or property damage .
WARNING: THE CONDUCTOR CROSS-SECTIONS MUST BE DESIGNED CORRE-
SPONDING TO A STANDARD-COMPLIANT SYSTEM CONFIGURATION.
The cables that are to be connected must be designed according to the respective type of circuit . Failure to observe this notice can
result in injury to persons or property damage .
"Free" means that the charging cable is not permanently connected and that
the user is expected to provide their own .
Relay 3 (P5/P6) is energized for cables connected which support 63A current
capacities . Otherwise, relay 2 (P3/P4) is energized for cables connected which
support 32A current capacities . Otherwise, relay 1 (P1/P2) is energized when
the cable supports 16A current capacity .
PERMISSIBLE CONDUCTOR
CROSS-SECTIONS OF
TERMINALS
0,5 . . . 2 .5 mm2
• with core ends prepared: 0 .5 . . . 2 .5 mm2
• without core ends prepared: 0,5 . . . 2 .5 mm2
LINE TYPES ACCORDING TO
AWG
20 . . . 14
20 . . . 14
11
