FLIR N357B8 SERIES Quick Start Manual

Compatible Accessories
For a full list of compatible accessories, visit
flir.com/security/cameramounts

Safety Precautions

• Use an appropriate low-voltage power cable to prevent fire or electrical shock.
• Make sure to install the camera in an area that can support the camera weight.
• There are no user-serviceable parts inside the camera. Do not disassemble the
camera.
• Do not clean the lens cover with an abrasive cleaning material. Use a soft cloth
to clean the lens cover.
• Camera is rated for outdoor use (IP66), but is not intended for submersion in
water.
• Extend the Ethernet cable run for your camera up to 300ft. You can use an
RJ45 coupler or network switch to connect male ends of Ethernet cable
together. A maximum of 3 connections is recommended.
Weights & Dimensions
3.9" / 97mm
2.4lbs / 1.1kg
10.7" / 273mm

FCC Notice

This equipment has been tested and found to comply with the limits for a Class A digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference when the equipment is operated
in a commercial environment. This equipment generates, uses, and can radiate radio
frequency energy and, if not installed and used in accordance with the instruction manual,
may cause harmful interference to radio communications. Operation of this equipment
in a residential area is likely to cause harmful interference in which case the user will be
required to correct the interference at his own expense.
Using the RJ45 Cap (Optional)
Ethernet
connector
Fit the outer seal over your camera's Ethernet connector
1
and insert the inner seal into the cap housing.
2 Run the stripped end of an Ethernet cable through the
parts of the RJ45 cap, as shown above.
3
Terminate the Ethernet cable with an RJ45 plug, and plug
the cable into your camera's Ethernet connector.
4
Screw the cap housing onto the Ethernet connector.
5 Screw the cap-sealing nut tightly into the cap
housing.
The supplied RJ45 cap is weather-resistant. Seal the cap with
silicone if it will be exposed to precipitation regularly.
Weight
Resources
Visit us online for up-to-date software and complete
3.7"
95mm
1
2
3
4
FLIR Systems, Inc., Copyright © 2017
As our products are subject to continuous improvement, FLIR Systems Inc. reserves the right to
modify product design, specifications and prices, without notice and without incurring any obligation.
E&OE
Outer seal
Cap housing
Cap-sealing nut
RJ45 plug Inner
seal
ATTENTION:

Need Help?

instruction manuals
Visit flir.com/security/pro
Search for the model number
of your product
Click on your product in the
search results
Click on the Downloads tab
N357B8_QSG_EN_R2

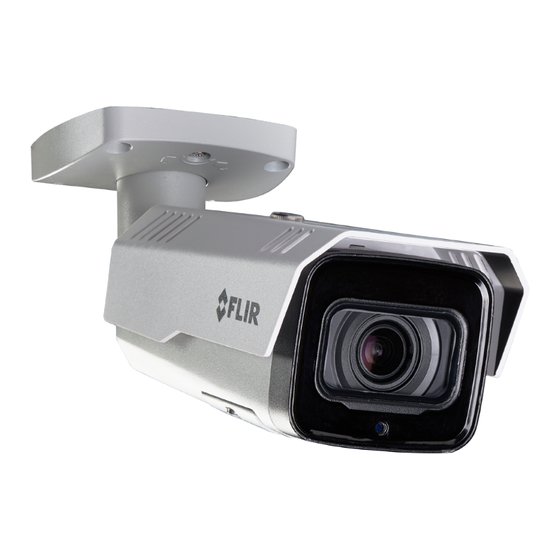

8MP Motorized Varifocal
Network Bullet Camera
QUICK START GUIDE
English Version 2.0
flir.com/security/pro
MODEL: N357B8
SERIES
