FLIR N347BW4 SERIES Quick Start Manual

Compatible Accessories
This security camera has several mounting options:
Accessories Model Numbers
Junction Box S1JF2G
Corner Mounts S1JF2G with S1RA2G
Pole Mounts S1JF2G with S4PA2G

Safety Precautions

• Use an appropriate low-voltage power cable to prevent fire
or electrical shock.
• Make sure to install the camera in an area that can support
the camera weight.
• There are no user-serviceable parts inside the camera. Do
not disassemble the camera.
• Do not clean the lens cover with an abrasive cleaning
material. Use a soft cloth to clean the lens cover.
• Camera is rated for outdoor use (IP66), but is not intended
for submersion in water.
• Extend the Ethernet cable run for your camera up to 300ft.
You can use an RJ45 coupler or network switch to connect
male ends of Ethernet cable together. A maximum of 3
connections is recommended.
Weights & Dimensions
3.9" / 97.8mm
2.4lbs / 1.1kg
10.7" / 273mm
Using the RJ45 Cap (Optional)
Ethernet
connector
1 Fit the outer seal over your camera's Ethernet connector
and insert the inner seal into the cap housing.
2 Run the stripped end of an Ethernet cable through the
parts of the RJ45 cap, as shown above.
3
Terminate the Ethernet cable with an RJ45 plug, and plug
the cable into your camera's Ethernet connector.
4
Screw the cap housing onto the Ethernet connector.
5 Screw the cap-sealing nut tightly into the cap
housing.
The supplied RJ45 cap is weather-resistant. Seal the cap with
silicone if it will be exposed to precipitation regularly.

FCC Notice

This equipment has been tested and found to comply with
the limits for a Class A digital device, pursuant to Part
15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference when
the equipment is operated in a commercial environment. This
equipment generates, uses, and can radiate radio frequency
energy and, if not installed and used in accordance with the
instruction manual, may cause harmful interference to radio
communications. Operation of this equipment in a residential
area is likely to cause harmful interference in which case the
user will be required to correct the interference at his own
expense.
Weight
IT'S ALL ON THE WEB!
flir.com/security/pro
FLIR Systems, Inc., Copyright © 2017
As our products are subject to continuous improvement, FLIR Systems
3.7"/
Inc. reserves the right to modify product design, specifications and
prices, without notice and without incurring any obligation. E&OE
95mm
Outer seal
Cap housing
Cap-sealing nut
RJ45 plug
Inner
seal
ATTENTION:
VISIT
N347BW4_QSG_EN_R2

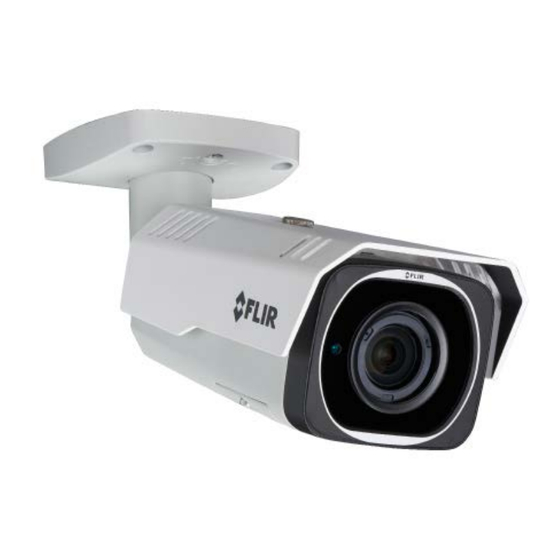

4MP Motorized Varifocal
Network Bullet Camera
QUICK START GUIDE MODEL: N347BW4
English Version 2.0
flir.com/security/pro
SERIES
