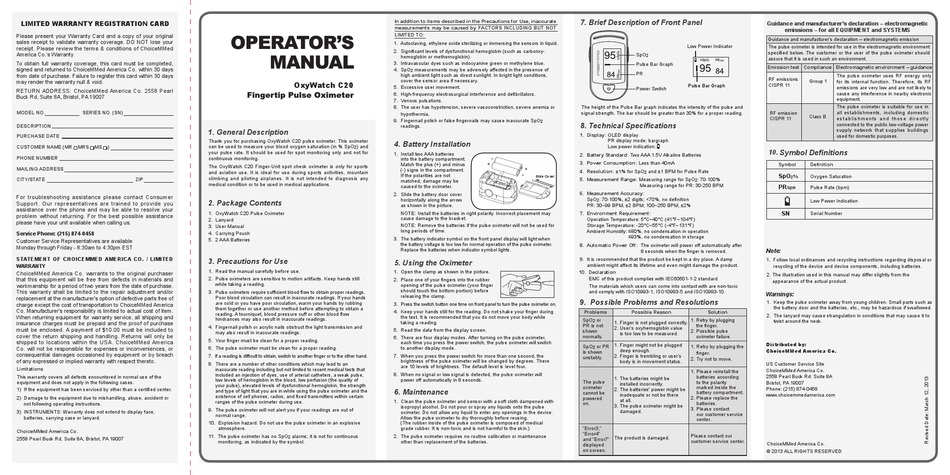

ChoiceMMed OxyWatch C20 Operator's Manual

LIMITED WARRANTY REGISTRATION CARD

Please present your Warranty Card and a copy of your original
sales receipt to validate warranty coverage. DO NOT lose your
receipt. Please review the terms & conditions of ChoiceMMed
America Co.'s Warranty.
To obtain full warranty coverage, this card must be completed,
signed and returned to ChoiceMMed America Co. within 30 days
from date of purchase. Failure to register this card within 30 days
may render the warranty null & void.
RETURN ADDRESS: ChoiceMMed America Co. 2558 Pearl
Buck Rd, Suite 8A, Bristol, PA 19007
MODEL NO. SERIES NO. (SN)
DESCRIPTION
PURCHASE DATE
CUSTOMER NAME (MR. MRS. MS. )
PHONE NUMBER
MAILING ADDRESS
CITY/STATE ZIP
For troubleshooting assistance please contact Consumer
Support. Our representatives are trained to provide you
assistance over the phone and may be able to resolve your
problem without returning. For the best possible assistance
please have your unit available when calling us.
Service Phone: (215) 874-0458
Customer Service Representatives are available
Monday through Friday - 8:30am to 4:30pm EST
STATEMENT OF CHOICEMMED AMERICA CO. / LIMITED
WARRANTY
ChoiceMMed America Co. warrants to the original purchaser
that this equipment will be free from defects in materials and
workmanship for a period of two years from the date of purchase.
This warranty shall be limited to the repair adjustment and/or
replacement at the manufacturer's option of defective parts free of
charge except the cost of transportation to ChoiceMMed America
Co. Manufacturer's responsibility is limited to actual cost of item.
When returning equipment for warranty service, all shipping and
insurance charges must be prepaid and the proof of purchase
must be enclosed. A payment of $10.00 must be included to
cover the return shipping and handling. Returns will only be
shipped to locations within the USA. ChoiceMMed America
Co. will not be responsible for expenses or inconveniences, or
consequential damages occasioned by equipment or by breach
of any expressed or implied warranty with respect thereto.
Limitations
This warranty covers all defects encountered in normal use of the
equipment and does not apply in the following cases.
1) If the equipment has been serviced by other than a certified center.
2) Damage to the equipment due to mishandling, abuse, accident or
not following operating instructions.
3) INSTRUMENTS: Warranty does not extend to display face,
batteries, carrying case or lanyard.
ChoiceMMed America Co.
2558 Pearl Buck Rd, Suite 8A, Bristol, PA 19007
OxyWatch C20

1. General Description

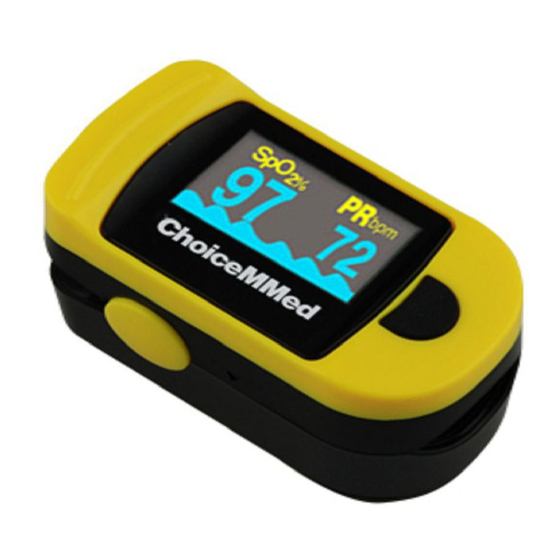

Thank you for purchasing OxyWatch C20 pulse oximeter. This oximeter
can be used to measure your blood oxygen saturation (in % SpO ) and
2
your pulse rate. It should be used for spot monitoring only and not for
continuous monitoring.
The OxyWatch C20 Finger-Unit spot check oximeter is only for sports
and aviation use. It is ideal for use during sports activities, mountain
climbing and piloting airplanes. It is not intended to diagnosis any
medical condition or to be used in medical applications.

2. Package Contents

1. OxyWatch C20 Pulse Oximeter
2. Lanyard
3. User Manual
4. Carrying Pouch
5. 2 AAA Batteries

3. Precautions for Use

1. Read the manual carefully before use.
2. Pulse oximeters are sensitive to motion artifacts. Keep hands still
while taking a reading.
3. Pulse oximeters require sufficient blood flow to obtain proper readings.
Poor blood circulation can result in inaccurate readings. If your hands
are cold or you have poor circulation, warm your hands by rubbing
them together or use another method before attempting to obtain a
reading. A tourniquet, blood pressure cuff or other blood flow
hindrances may also result in inaccurate readings.
4. Fingernail polish or acrylic nails obstruct the light transmission and
may also result in inaccurate readings.
5. Your finger must be clean for a proper reading.
6. The pulse oximeter must be clean for a proper reading.
7. If a reading is difficult to obtain, switch to another finger or to the other hand.
8. There are a number of other conditions which may lead to an
inaccurate reading including but not limited to recent medical tests that
included an injection of dyes, use of arterial catheters, a weak pulse,
low levels of hemoglobin in the blood, low perfusion (the quality of
your pulse), elevated levels of dysfunctional hemoglobin, the strength
and type of light that you are in while using the pulse oximeter and the
existence of cell phones, radios, and fixed transmitters within certain
ranges of the pulse oximeter during use.
9. The pulse oximeter will not alert you if your readings are out of
normal range.
10. Explosion hazard: Do not use the pulse oximeter in an explosive
atmosphere.
11. The pulse oximeter has no SpO alarms; it is not for continuous
2
monitoring, as indicated by the symbol.
In addition to items described in the Precautions for Use, inaccurate
measurements may be caused by FACTORS INCLUDING BUT NOT
LIMITED TO:
1. Autoclaving, ethylene oxide sterilizing or immersing the sensors in liquid.
2. Significant levels of dysfunctional hemoglobin (such as carbonxy-
hemoglobin or methemoglobin).
3. Intravascular dyes such as indocyanine green or methylene blue.
4. SpO measurements may be adversely affected in the presence of
2
high ambient light such as direct sunlight. In bright light conditions,
cover the sensor area if necessary.
5. Excessive user movement.
6. High-frequency electrosurgical interference and defibrillators.
7. Venous pulsations.
8. The user has hypotension, severe vasoconstriction, severe anemia or
hypothermia.
9. Fingernail polish or false fingernails may cause inaccurate SpO
2
readings.
4. Battery Installation
1. Install two AAA batteries
into the battery compartment.
Match the plus (+) and minus
(-) signs in the compartment.
If the polarities are not
Slide Cover
matched, damage may be
caused to the oximeter.
2. Slide the battery door cover
horizontally along the arrow
as shown in the picture.
NOTE: Install the batteries in right polarity. Incorrect placement may
cause damage to the bracket.
NOTE: Remove the batteries if the pulse oximeter will not be used for
long periods of time.
3. The battery indicator symbol on the front panel display will light when
the battery voltage is too low for normal operation of the pulse oximeter.
Replace the batteries when indicator symbol lights.

5. Using the Oximeter

1. Open the clamp as shown in the picture.
2. Place one of your fingers into the rubber
opening of the pulse oximeter (your finger
should touch the bottom portion) before
releasing the clamp.
3. Press the switch button one time on front panel to turn the pulse oximeter on.
4. Keep your hands still for the reading. Do not shake your finger during
the test. It is recommended that you do not move your body while
taking a reading.
5. Read the data from the display screen.
6. There are four display modes. After turning on the pulse oximeter,
each time you press the power switch, the pulse oximeter will switch
to another display mode.
7. When you press the power switch for more than one second, the
brightness of the pulse oximeter will be changed by degrees. There
are 10 levels of brightness. The default level is level four.
8. When no signal or low signal is detected, the pulse oximeter will
power off automatically in 8 seconds.

6. Maintenance

1. Clean the pulse oximeter and sensor with a soft cloth dampened with
isopropyl alcohol. Do not pour or spray any liquids onto the pulse
oximeter. Do not allow any liquid to enter any openings in the device.
Allow the pulse oximeter to dry thoroughly before reusing.
(The rubber inside of the pulse oximeter is composed of medical
grade rubber. It is non-toxic and is not harmful to the skin.)
2. The pulse oximeter requires no routine calibration or maintenance
other than replacement of the batteries.

7. Brief Description of Front Panel

Low Power Indicator
SpO
2
Pulse Bar Graph
PR
Pulse Bar Graph
Power Switch
The height of the Pulse Bar graph indicates the intensity of the pulse and
signal strength. The bar should be greater than 30% for a proper reading.

8. Technical Specifications

1. Display: OLED display
PR display mode: bargraph
Low power indication:
2. Battery Standard: Two AAA 1.5V Alkaline Batteries
3. Power Consumption: Less than 40mA
4. Resolution: ±1% for SpO and ±1 BPM for Pulse Rate
2
5. Measurement Range: Measuring range for SpO : 70-100%
2
Measuring range for PR: 30-250 BPM
6. Measurement Accuracy:
SpO : 70-100%, ±2 digits; <70%, no definition
2
PR: 30~99 BPM, ±2 BPM; 100~250 BPM, ±2%
7. Environment Requirement:
Operation Temperature: 5°C~40°C (41°F~104°F)
Storage Temperature: -20°C~55°C (-4°F~131°F)
Ambient Humidity: ≤80%, no condensation in operation
≤93%, no condensation in storage
8. Automatic Power Off: The oximeter will power off automatically after
8 seconds when the finger is removed.
9. It is recommended that the product be kept in a dry place. A damp
ambient might affect its lifetime and even might damage the product.
10. Declaration
EMC of this product complies with IEC60601-1-2 standard
The materials which users can come into contact with are non-toxic
and comply with ISO10993-1, ISO10993-5 and ISO10993-10.

9. Possible Problems and Resolutions

Problems Possible Reason Solution
SpO or 1. Retry by plugging
2
1. Finger is not plugged correctly.
PR is not the finger.
2. User's oxyhemoglobin value
shown 2. Possible pulse
is too low to be measured.
normally. oximeter failure.
1. Finger might not be plugged
SpO or PR 1. Retry by plugging the
2
deep enough.
is shown finger.
2. Finger is trembling or user's
unstably.
2. Try not to move.
body is in movement status.
1. Please reinstall the
batteries according
1. The batteries might be
The pulse
to the polarity
installed incorrectly.
oximeter marked inside the
2. The batteries' power might be
cannot be battery compartment.
inadequate or not be there
2. Please replace the
powered
at all.
on. batteries.
3. The pulse oximeter might be
3. Please contact
damaged.
our customer service
center.
"Error3,"
"Error4"
Please contact our
The product is damaged.
and "Error7"
customer service center.
displayed
on screen.
Guidance and manufacturer's declaration – electromagnetic
emissions – for all EQUIPMENT and SYSTEMS
Guidance and manufacturer's declaration – electromagnetic emission
The pulse oximeter is intended for use in the electromagnetic environment
specified below. The customer or the user of the pulse oximeter should
assure that it is used in such an environment.
Emission test Compliance Electromagnetic environment – guidance
The pulse oximeter uses RF energy only
RF emissions
Group 1 for its internal function. Therefore, its RF
CISPR 11
emissions are very low and are not likely to
cause any interference in nearby electronic
equipment.
The pulse oximeter is suitable for use in
RF emission all establishments, including domestic
Class B
CISPR 11 e s t a b l i s h m e n t s a n d t h o s e d i r e c t l y
connected to the public low-voltage power
supply network that supplies buildings
used for domestic purposes.
Symbol Definitions
10.
Symbol Definition
SpO
% Oxygen Saturation
2
PR
Pulse Rate (bpm)
bpm
Low Power Indication
SN
Serial Number
Note:
1. Follow local ordinances and recycling instructions regarding disposal or
recycling of the device and device components, including batteries.
2. The illustration used in this manual may differ slightly from the
appearance of the actual product.
Warnings:
Note:
1. Keep the pulse oximeter away from young children. Small parts such as
The illustration used in this manual may differ slightly from the
the battery door and the batteries, etc., may be hazardous if swallowed.
appearance of the actual product.
2. The lanyard may cause strangulation in conditions that may cause it to
Warnings: twist around the neck.
Distributed by:
ChoiceMMed America Co.
US Customer Service Site
ChoiceMMed America Co.
2558 Pearl Buck Rd: Suite 8A
Bristol, PA 19007
Phone: (215) 874-0458
www.choicemmedamerica.com
ChoiceMMed America Co.
© 2013 ALL RIGHTS RESERVED
