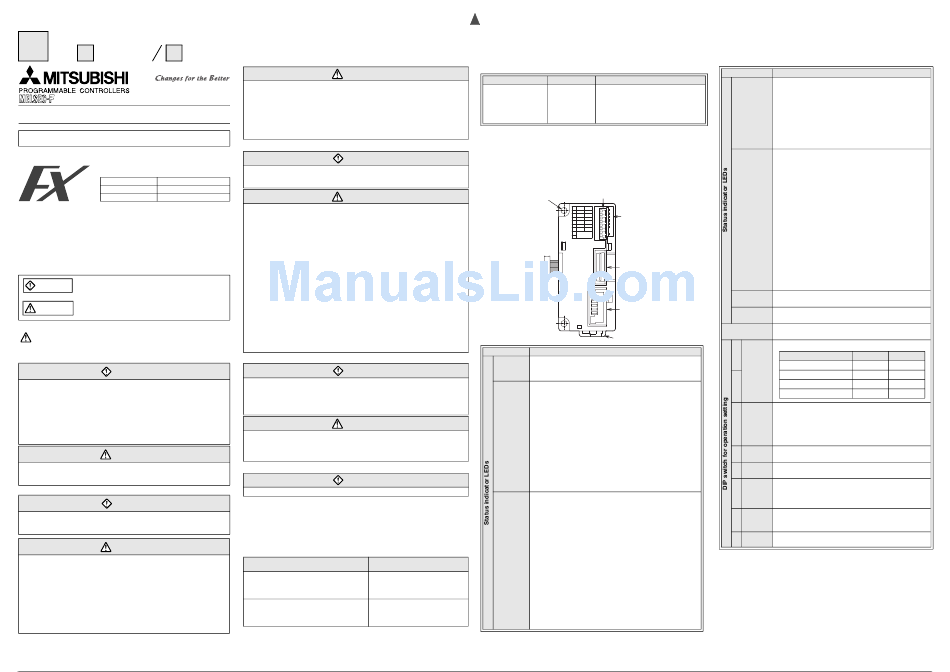

Mitsubishi FX2N-64CL-M User Manual

Side
B
Side Side
A B
JAPANESE ENGLISH
CC-Link/LT Master Block Model FX -64CL-M
2N
Please read this manual thoroughly before starting to use the product and
handle the product properly.
User's Manual (Hardware Volume)
MODEL FX -64CL-M
2N
MANUAL Number JY997D05401B
Date JANUARY 2003
GSAFETY PRECAUTIONSG
This manual describes the name of each part, outside dimensions and
specifications of the CC-Link/LT master block for Mitsubishi Programmable
Controller (PLC).
For the design and construction of the CC-Link/LT system, refer to the CC-
Link/LT Master Block Users Manual.
These GSAFETY PRECAUTIONSG are classified into two categories:
"DANGER" and "CAUTION".
Procedures which may lead to dangerous conditions or
DANGER
cause death or serious injury if not carried out properly.
Procedures which may lead to dangerous conditions or
cause minor to medium injury, or physical damage, if
CAUTION
not carried out properly.
Depending on certain circumstances, procedures indicated by
CAUTION
may also be linked to serious ramifications.
It is important to follow the directions for usage.
[DESIGN PRECAUTIONS]
DANGER
• Construct an interlock circuit in the sequence program so that the
system works correctly using the communication information when an
error in the data link occurs.
If such an interlock circuit is not provided, accidents may be caused by
erroneous output or malfunction.
• When a remote I/O unit fails, inputs/outputs may randomly become ON
or OFF, therefore build an external monitoring circuit that will monitor any
input signals that could cause a serious accident.
Accident may be caused by erroneous output or malfunction.
CAUTION
• Use the master block without applying any force on the master block and
the flat cable dedicated to the CC-Link/LT.
Otherwise, such cables may break or fail.
[INSTALLATION PRECAUTIONS]
DANGER
• Shut down all phases of the power supply outside the master block, then
attach or remove the master block. If the power is not disconnected at all
phases an electric shock or serious damage to the product may occur.
CAUTION
• Use the master block in the environment described in this manual.
If the master block is used in an improper environment, then electrical
shock, fire, malfunction, product damage or product deterioration may
occur.
• Securely fix the master block with DIN rail or mounting screws. When
using mounting screws, securely tighten them within the specified torque
range.
If the screws are too loose, the module may detach from its installed
position, short circuit, or malfunction. If the screws are too tight, the
screws may be damaged, which may cause the module to detach from
its installed position or short circuit.
CAUTION
• Pay attention that foreign objects such as cuttings or wiring chips do not enter
the master block. It may cause fire, product failure or malfunction.
• During installation and wiring works, adhere dust-proof sheets supplied
together with the master block on the sides of the master block so that foreign
objects such as cutting chips and wiring chips do not enter the inside.
Otherwise, foreign objects may cause fire, failure or malfunction.
• Before operating the system, remove the dust-proof sheets so that heat can
be released. It may cause fire, product failure or malfunction.
[WIRING PRECAUTIONS]
DANGER
• Shut down all power supplies, before starting the wiring work. If the power is
not disconnected from all sources an electric shock or serious product
damage may occur.
CAUTION
• CC-Link/LT network wiring uses the flat cable dedicated to the CC-Link/LT
specified by CC-Link Partner Association (CLPA), and perform wiring in
accordance with the specifications described in this manual.
If any cable other than the dedicated flat cable is used or if wiring is
performed in a method not conforming to the specifications, normal data
transmission cannot be assured.
• Do not bind the flat cable dedicated to CC-Link/LT together with major circuits
or power cables. Keep the dedicated flat cable away from major circuits and
power cables by 100 mm (3.93") or more.
It may cause malfunction due to noise interference.
• Accommodate the flat cable dedicated to CC-Link/LT inside a duct, or fix it
with clamps.
If the dedicated flat cable is loose or is pulled for movement or carelessness,
the master block and the dedicated flat cable may be damaged or
malfunction due to imperfect connection.
• Correctly wire the master block while confirming the rated voltage and
terminal arrangement of the master block. It may cause fire or product failure.
• Hold the connector area when disconnecting the flat cable dedicated to CC-
Link/LT from the master block.
If the cable area is pulled, the master block or the dedicated cable may be
damaged or malfunction.
[STARTING AND MAINTENANCE PRECAUTIONS]
DANGER
• Do not touch the terminals when the power is ON. It may cause an electric
shock or malfunction.
• Make sure to shut down all phases of the power supply outside the master
block before starting cleaning. If all phases of the power supply are not shut
down, the master block may be seriously damaged or malfunction.
CAUTION
• Do not disassemble or modify the master block. Doing so may cause failure,
malfunction, injury, or fire.
• The case of the master block is made of resin. Do not drop or apply strong
impacts to the master block.
[DISPOSAL PRECAUTIONS]
DANGER
• When disposing of this product, treat it as industrial waste.
G G G G Notification of CE markingG G G G
This notification does not guarantee that an entire mechanical module produced
in accordance with the contents of the notification comply with the following
standards. Compliance to EMC standards of the entire mechanical module
should be checked by the user / manufacturer.
Standards with which this product complies
Type : Programmable Controller (Open Type Equipment)
Models : Products manufactured from February 1st, 2003.
Electromagnetic Compatibility Standards
Remark
(EMC)
EN61000-6-4:2001
Electromagnetic compatibility Following item is examined:
-Generic standards - Emission standard for - Radiated Emissions
Industrial environment
EN61131-2:1994 Programmable controllers Following items are examined:
/A11: 1996 -Equipment requirements and - RF Immunity - Fast transients
tests - ESD
/A12: 2000 - Damped oscillatory wave
For more details please contact the local Mitsubishi Electric sales site.
- Notes For compliance to EMC regulation.
It is necessary to install the FX -64CL-M in a shielded metal control panel.
2N
Associated Manuals
Manual name Manual No. Description
CC-Link/LT Master
Block Model FX - This manual contains the specifications,
2N
64CL-M User's Manual JY997D06201 wiring, handling, etc. of the CC-Link/LT
(Detailed Volume) master block.
(Japanese only)
1. Product Outline
The CC-Link/LT master block FX -64CL-M can be connected to the FX Series
2N
PLC.
By using this master block, the CC-Link/LT system can be constructed while
setting the FX Series PLC as the master station.
2. Part Name and Setting
DIP switch for operation setting
2-φ4.5(0.18") mounting hole
(M4 mounting screw)
ON OFF
8 - -
Status indicator LEDs
7 TEST ONLINE
6 CONFIG ONLINE
5 - -
4 - -
3 16pts. 4pts.
2
B RATE
1
FX -64CL-M
2N
Extension cable
Extension connector
connected to PLC
connected to extension
block/unit or special
block/unit of the PLC
LINK
Connector for
CC-Link/LT interface
Hook for installation to DIN rail
Name Description
<ONLINE mode/CONFIG mode/TEST mode>
POWER Lit: Power is supplied
Extinguished: Power is not supplied
<ONLINE mode>
Lit: Master block is operating normally
Extinguished:Master block is abnormal
Power is interrupted
EEPROM read error (sum mismatch)
occurred
<CONFIG mode>
RUN
Lit: Master block is operating normally
Extinguished:Master block is abnormal
Power is interrupted
<TEST mode>
Lit: Master block is operating normally
Extinguished:Master block is abnormal
Power is interrupted
<ONLINE mode>
Lit: Communication speed setting error occurred
EEPROM read error (sum mismatch) occurred
Flickering:Power supplied for communication is abnormal
DIP switch for operation setting was changed
during operation
Extinguished:Master block is operating normally
<CONFIG mode>
Lit: Communication speed setting error occurred
EEPROM write error occurred
ERR.
Flickering:Power supplied for communication is abnormal
DIP switch for operation setting was changed
during operation
Extinguished:Master block is operating normally
<TEST mode>
Lit: Communication speed setting error occurred
Flickering:Power supplied for communication is abnormal
DIP switch for operation setting was changed
during operation
Extinguished:Master block is operating normally
Name Description
<ONLINE mode/CONFIG mode>
Lit: Data link is being executed
Extinguished: Data link is stopped
<TEST mode>
Lit: Self-loop back Test was finished normally
L RUN
Extinguished:Self-loop back Test was finished
abnormally
(Extinguished while the self-loop back
Test is being executed)
<ONLINE mode>
Lit: Use station number discrepancy
(when BFM#32(20h) to #95(5Fh) is edited, the
station numbers are checked.)
Outside-control-range station error occurred
Flickering: Stations are abnormal
Extinguished:Data link is being executed normally
<CONFIG mode>
Lit: Use station number discrepancy
L ERR.
(when BFM#32(20h) to #95(5Fh) is edited, the
station numbers are checked.)
Flickering: All stations are abnormal
Extinguished:Data link is being executed normally
<TEST mode>
Lit: Self-loop back Test was finished abnormally
Extinguished:Self-loop back Test was finished normally
(Extinguished while the self-loop back
Test is being executed)
<ONLINE mode/CONFIG mode/TEST mode>
SD
Lit: Data is being sent
<ONLINE mode/CONFIG mode/TEST mode>
RD.
Lit: Data is being received
Connector to connect the flat cable dedicated to the CC-
Interface
Link/LT (24G/DB/DA/+24 V)
Communication speed setting
1
Communication speed SW1 SW2
156 kbps OFF
B RATE
625 kbps ON
2.5 Mbps OFF
2
Setting disabled ON
Point mode setting
(Select the number of I/O points per station.)
16pts/ OFF :4-point mode (4 input points and 4 output points
3
4pts in each station)
ON :16-point mode (16 input points and 16 output
points in each station)
Setting is disabled.
4 --
(Make sure that it is OFF during operation.)
Setting is disabled.
5 --
(Make sure that it is OFF during operation.)
CONFIG mode
CONFIG/
OFF :ONLINE mode (normal operation)
6
ON :CONFIG mode (The information on connected
ONLINE
stations is saved in the EEPROM.)
TEST mode
TEST/
7 OFF :ONLINE mode (normal operation)
ONLINE
ON :TEST mode (Self-loop back Test)
Setting is disabled.
8 --
(Make sure that it is OFF during operation.)
• Factory default, all bits of the DIP switch are set OFF.
• The Test mode is selected when both the CONFIG and TEST mode are
set ON simultaneously.
• For each setting, the status at the time of power ON is valid.
(If a setting is changed after the power is ON, such a change is invalid.)
CONFIGMODE
• BFM #32 (20h) to #95 (5Fh) changed value while online will cause a
L ERR.
• No remote module attached during power ON will result in no L ERR.
• Remote module removed during operation will result in no L ERR.
OFF
OFF
ON
ON
