This manual contains text, diagrams and explanations which will guide the reader in the correct installation
and operation of the FX
attempting to install or use the unit. Further information can be found in the FX PROGRAMMING MAN-
UAL, FX series hardware manuals.
If in doubt at any stage during the installation of the FX
professional electrical engineer who is qualified and trained to the local and national standards.

1. INTRODUCTION

The RS232C interface block FX
FX
/FX
/FX
series PLC to realize full duplex serial data communication with another RS232C
2NC
3U
3UC
interface such as a personal computer, bar code reader, printer, etc.
1) Two or more devices with RS232C interfaces can be connected to an FX
PLC by using the RS232C special function block. Up to 8 special function block can be connected to
the FX
/FX
/FX
2N
3U
PLC. (Refer to section 2.1)
2) Communication requires no protocol
Full-duplex asynchronous communication between RS232C devices is specified through buffer mem-
ory (BFM). The FROM/TO instruction is used for the buffer memory.
3) The send/receive buffer can accommodate 512 bytes/256 words.
When the RS232C interlink connection mode is used, data exceeding 512 bytes/256 words can also
can be received.
4) ASCII/HEX conversion function
The function to convert and send and a hexadecimal numeric (0 to F) saved in the send data buffer as
well as the function to convert a received ASCII code into a hexadecimal numeric (0 to F) and save it
to the receive buffer are provided.
*1 Up to 7 special function block can be connected to the FX

2. Specifications

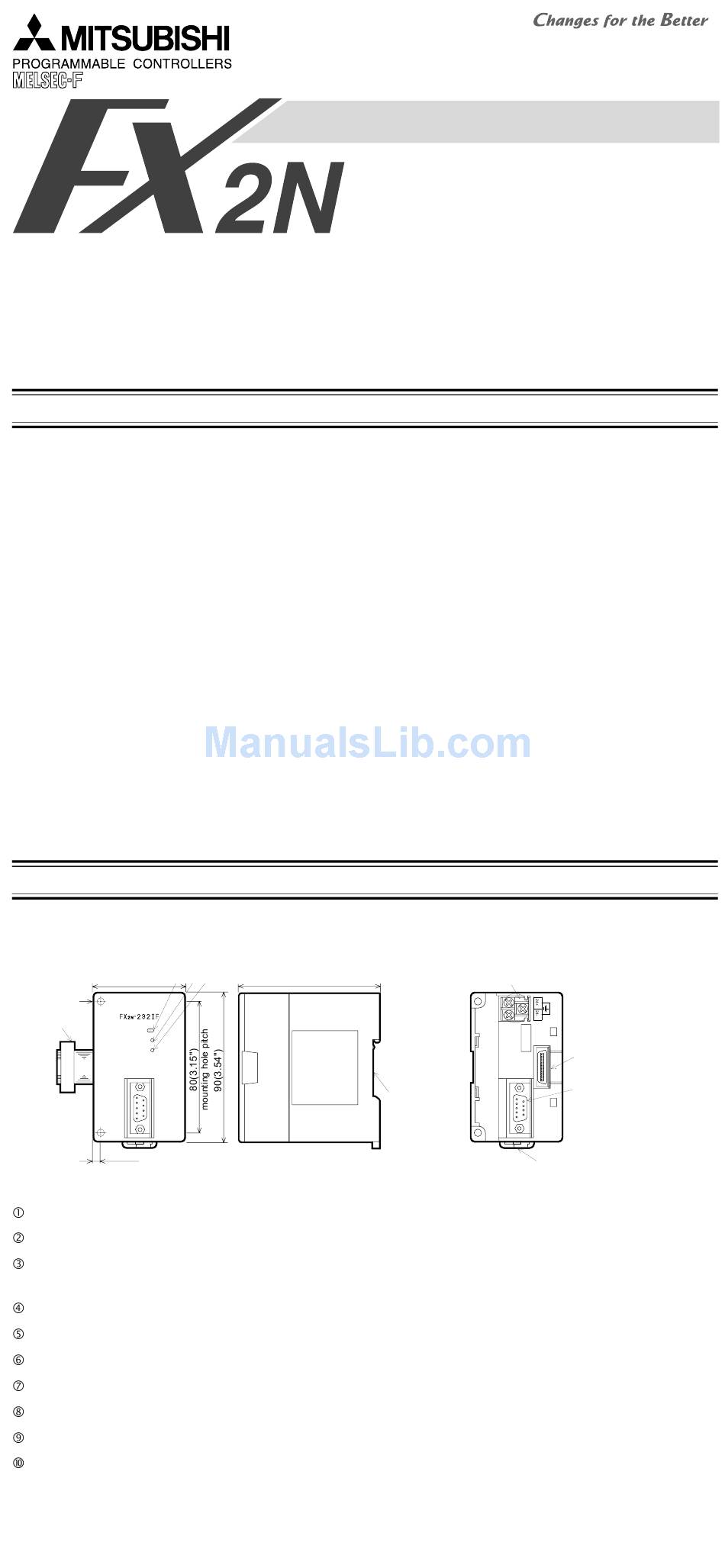

2.1 External Dimensions and Part Names

Dimensions:mm(inches)
55(2.17")
POWER
SD
RD
4(0.16")
Extension cable
Mounting hole (2-φ4.5(0.18"))
POWER LED :Lit when both the 5V DC power supplied from the main unit and the 24V DC power
supplied from the external terminal are supplied.
SD LED:Lit while data is sent to the RS232C equipment connected to the 232IF.
RD LED:Lit while data is received from the RS232C equipment connected to the 232IF.
Terminal screws (M3 (0.12"))
Next step extension connector
RS232C connector (9-pin D-SUB connector: #4-40unc inch screw thread)
DIN rail clip
DIN rail groove (35(1.38"))
-232IF RS232C Interface Block. It should be read and understood before
2N
-232IF (hereinafter referred to as "232IF") is connected to the FX
2N
*1
series PLC. Up to 4 special function block can be connected to the FX
3UC
Weight: Approx. 0.3 kg
➂ ➃ ➄
85(3.35")
FX
-232IF RS232C INTERFACE BLOCK
2N
HARDWARE MANUAL
-232IF RS232C Interface Block always consult a
2N
-32MT-LT PLC
3UC
Accessory:Special block No. label
JY992D73501B
/FX
/FX
2N
2NC
POWER
SD
RD
FX -232IF
2N
/
2N
/FX
series
3U
3UC
2NC

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FX2N-232IF and is the answer not in the manual?

Questions and answers

Summary of Contents for Mitsubishi FX2N-232IF

  • Page 1 -232IF RS232C INTERFACE BLOCK HARDWARE MANUAL JY992D73501B This manual contains text, diagrams and explanations which will guide the reader in the correct installation and operation of the FX -232IF RS232C Interface Block. It should be read and understood before attempting to install or use the unit. Further information can be found in the FX PROGRAMMING MAN- UAL, FX series hardware manuals.
  • Page 2 2.2 Connector Pin Layout Pin No. Signal name Meaning Function CD(DCD) Carrier detection This signal indicates only status. RD(RXD) Receive data Receive data (RS232C device to 232IF) SD(TXD) Send data Send data (232IF to RS232C device) ER(DTR) Data terminal ready ON when Send/Receive enable is ON Signal ground Signal ground...
  • Page 3 3.3 Connection Example The signal wiring of the RS232C equipment varies depending on the RS232C specifications connected. Check the specifications of the RS232C equipment used, then connect the signals correctly. Representa- tive wiring examples are shown below. 1) Connection with counterpart equipment of terminal specifications (when control line is not used) BFM #0 communication format: b9 = 0, b8 = 0, without control line Communication is performed in accordance 232IF side...
  • Page 4 4. SPECIFICATIONS 4.1 General specifications General specifications excluding withstand voltage Same as those of the main unit 500V AC, 1 minute (between the entire Withstand voltage external terminal and the ground terminal) 4.2 Power Supply Specifications Internal power supply from programmable controller 5V DC 40mA External power supply 24V DC ±...
  • Page 5 All examples and diagrams shown in this manual are intended only as an aid to understand- ing the text, not to guarantee operation. Mitsubishi Electric will accept no responsibility for actual use of the product based on these illustrative examples.
  • Page 6 2.2 Connector Pin Layout 3.3 Connection Example The signal wiring of the RS232C equipment varies depending on the RS232C specifications connected. Pin No. Signal name Meaning Function Check the specifications of the RS232C equipment used, then connect the signals correctly. Representa- CD(DCD) Carrier detection This signal indicates only status.
  • Page 7 If the RD LED is not lit while data is received or the SD LED is not lighted while data is sent, check the instruction and the wiring. ing the text, not to guarantee operation. Mitsubishi Electric will accept no responsibility for actual use of the product based on these illustrative examples.
