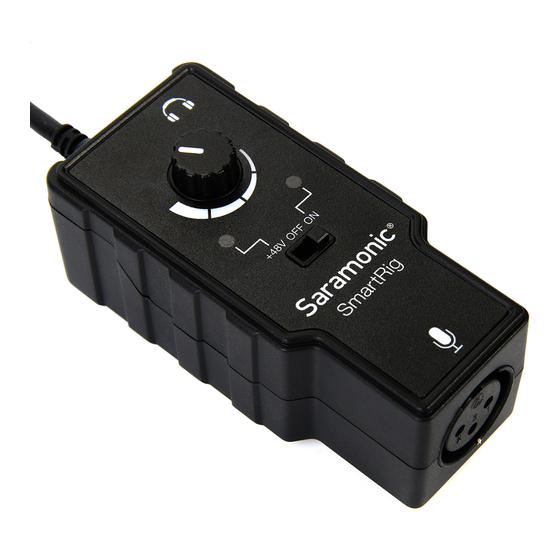

Saramonic SmartRig User Manual

Audio Adapter

The SmartRig from Saramonic is an easy solution
to connect any professional microphones to iPhone,
iPod touch, iPad and Android devices.
User Manual
SmartRig
PRODUCT INTRODUCTION
General Introductions
The SmartRig from Saramonic is an easy solution to connect any professional micro-
phones to iPhone, iPod touch, iPad and Android devices.
As a high-quality microphone preamp, SmartRig allows you to use professional stage
microphones or high-end studio microphones to create music with your iOS or Android
devices.
Simply plug the microphone into the standard XLR connector of SmartRig and connect
it to your device with the 3.5mm output cable.
The provided gain control thumbwheel makes it easy to set precise levels. Processed
sound can be monitored through a 3.5mm headphone out.
Highlights
• XLR microphone input connector
• +48V phantom power
• 3.5mm headphone output for monitoring
• +48V/OFF/ON switch
• Gain control
• Power/Phantom power provided by 9V battery
• Includes free app
Specifications
Frequency Response 20Hz to 20kHz (+/-1.5dB)
Noise -98 dB full band, phantom power ON
Maximum output level 2 Vrms
Distortion 0.025% THD
Phantom max current 13mA
Dimensions L 88 x W 41 x H 42 mm
Weight 75g ( 2.57oz. )
Product Structure
