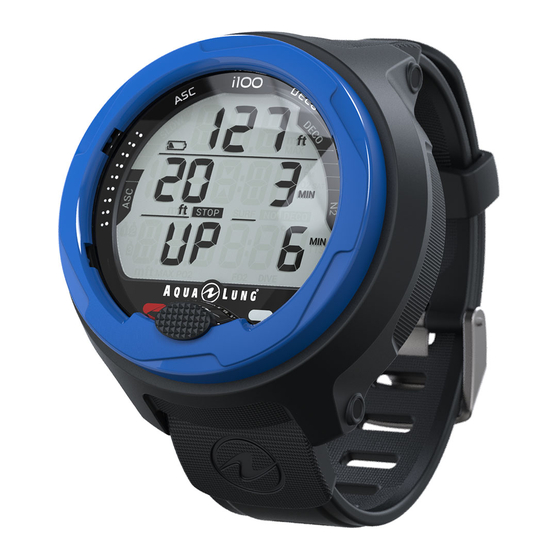

Aqua Lung i100 Owner's Manual

Hide thumbs

Table Of Contents

Table of Contents

Quick Links

i100

Dive Computer Owner's Manual

Doc. 12-7876-r04 (10/11/17)

Table of Contents

Need help?

Do you have a question about the i100 and is the answer not in the manual?

Questions and answers

Summary of Contents for Aqua Lung i100

Page 2: Notices
The program within the i100 simulates the absorption of inert gases into the body by using a mathematical model. This model is merely a way to apply a limited set of data to a large range of experiences. The i100 dive computer model is based upon the latest research and experi- ments in decompression theory.
Page 3: Warnings
• If you exceed certain limits, the i100 will not be able to help you get safely back to the surface. These situations exceed tested limits and can result in loss of some functions for 24 hours after the dive in which a violation occurred.
Page 4: Table Of Contents
1. EDT (Elapsed Dive Time) Alarm SET TIME 2. dEPtH AL (ALARM) 1-3 SET MODE SET MODE TOT dIVES (HISTORY) SHARED SETTINGS SN (SERIAL NUMBER) INITIATING A DIVE FREE DIVE MAIN © Aqua Lung International, Inc. (2017) Doc. 12-7876-r04 (10/11/17)
Page 5 SERVICE MODULE REMOVAL FROM A BOOT BATTERY REPLACEMENT RETURNING THE MODULE TO A BOOT ALTITUDE SENSING AND ADJUSTMENT TECHNICAL DATA NO DECO TIME LIMITS OXYGEN EXPOSURE LIMITS ALTITUDE LEVELS SPECIFICATIONS ABBREVIATIONS/TERMS © Aqua Lung International, Inc. (2017) Doc. 12-7876-r04 (10/11/17)
Page 7: Basics
Dive, Gauge, and Free Mode. Though the i100 is easy to use, you will get the most out of your new i100 if you take some time to familiarize yourself with its displays and operation.
Page 8: Display Icons
DECO icon is also displayed) Dive Time or Dive # (DIVE-T) Low Battery (DIVE) Descend, Ascend, or Stop Fraction of Oxygen Value is Maximum Surface Time Oxygen Saturation Partial Pressure of Oxygen © Aqua Lung International, Inc. (2017) Doc. 12-7876-r04 (10/11/17)
Page 9: Control Button
GETTING STARTED CONTROL BUTTON The i100 utilizes 1 control button. The button allows you to select mode options and access specific information. It is also used to enter settings, and acknowledge the audible alarm. The symbols in the table below will illustrate how to proceed through the menus.
Page 10: Button Functions
GETTING STARTED BUTTON FUNCTIONS ACTION FUNCTION • to activate the i100 • to access Alt screens • to advance or step through menus • to toggle or change setpoints • to select, access, save a setting, or exit certain screens •...
Page 12: Dtr (Dive Time Remaining)
DIVE FEATURES DTR (DIVE TIME REMAINING) The i100 constantly monitors No Decompression status and O2 Accumulation, and will display whichever Time is the least amount available as DTR on the No Decompression Dive Main screen. The Time being displayed will be identified by the NO DECO or O2 MIN icons.
Page 13: Asc Bar Graph
DEEP STOP When the Deep Stop selection is set to ON, it will trigger after descending deeper than 24 m (80 ft). The i100 then calculates (continually updating) a Stop Depth equal to ½ the Max Depth.
Page 14: Safety Stop
• The battery icon appears solid upon entry into Surface Mode. Alarm Level • The i100 functions continue. • The Battery icon appears flashing. 5 seconds after entering Surface Mode the i100 will shut down. © Aqua Lung International, Inc. (2017) Doc. 12-7876-r04 (10/11/17)
Page 15: Audible Alarm
• Ascent above a Deco Stop for more than 5 minutes. • Deco requires a Stop Depth deeper than 18 m (60 ft) or deeper. • On the Surface during a Conditional Violation. © Aqua Lung International, Inc. (2017) Doc. 12-7876-r04 (10/11/17)
Page 17: On The Surface Before A Dive
ALT 1 ALT 2 ALT 3 (only if set to Nitrox) FLY/SAT* NOTE: If no button is pressed the i100 will revert to the Dive Surface Main screen after 5 seconds. to access bypassed if no previous dive Main Menu ALT 1 (LAST) The ALT 1 screen displays essential data from the last dive.
Page 18: Fly/Sat (Desat)
To view i100 logs, change settings, or switch modes you must navigate through the Surf Main Menu. Enter the menu by holding the button for 2 seconds. When you reach the end of the menu the i100 will return to the Dive Surface Main screen.
Page 19: Plan
Log only stores a short summary of each dive. Alternately, the PC Download function stores much larger files for each dive. For this reason, it is normal to see dives stored in the i100's onboard Log that have already been overwritten in the PC Download Partition. If you do not remember to log or download your dives, they will be lost when the memory overwrites.
Page 20 Data 4 back to or Log Lead-in Log Lead-in NOTE: Log Data 4 only displays for nitrox dives; it is bypassed if the dive was an air dive. © Aqua Lung International, Inc. (2017) Doc. 12-7876-r04 (10/11/17)
Page 21: Set Gas
Air Nitrox) screen. Within this screen you can select whether to use Air or Nitrox gas mixes. If Air is selected, the i100 will return you to the Set Gas Lead-in screen in the menu. If EAN is selected, the i100 will allow you to...
Page 22: Set Al (Alarms)
Holding the button while viewing the Set AL Lead-in screen accesses the Set AL Sub Menu. Within this menu you can customize the following five alarm settings. SET ALARMS LEAD-IN next item in access Main Menu Set AL menu © Aqua Lung International, Inc. (2017) Doc. 12-7876-r04 (10/11/17)
Page 23: Aud Al (Audible Alarms)
SET DEPTH VALUE if SET: proceed to Set Depth Value 10 - 100 m (30 - 330 ft), active digit flashing increase save digit, value proceed to EDT Alarm after last digit © Aqua Lung International, Inc. (2017) Doc. 12-7876-r04 (10/11/17)
Page 24: Edt Al (Elapsed Dive Time Alarm)
ON # of segments selected if ON or OFF, flashing Next Item in to change save access Set Alarm Menu N2 Alarm setting setting N2 ALARM TRIGGERED flashing © Aqua Lung International, Inc. (2017) Doc. 12-7876-r04 (10/11/17)
Page 25: Dtr Al (Dive Time Remaining Alarm)
Holding the button while viewing the Set UTIL Lead-in screen accesses the Set UTIL Sub Menu. Within this menu you can customize the following six operational functions. SET UTIL LEAD-IN next item in access Main Menu Set UTIL menu © Aqua Lung International, Inc. (2017) Doc. 12-7876-r04 (10/11/17)
Page 26: H2O Type (Water Type)
Type 2. H2O ACT (Water Activation) The H2O ACT feature allows you to turn OFF water contact activation. WARNING: With H2O ACT turned OFF, you must remember to manually activate the i100 before any dive. H2O ACT LEAD-IN SET H2O ACT...
Page 27: Deep Stop
ON: proceed to Set Stop Time Stop ON/OFF SET STOP TIME SET STOP DEPTH 3 or 5 min (3, 4, 5; 6 m) or (10, 15; 20 ft) save save toggle advance setting setting setting setting © Aqua Lung International, Inc. (2017) Doc. 12-7876-r04 (10/11/17)
Page 28: Cf (Conservative Factor)
(M - D) or (D - M) M = month M = month D = day D = day next item in access toggle save Time Menu Set Date setting setting Format © Aqua Lung International, Inc. (2017) Doc. 12-7876-r04 (10/11/17)
Page 29 Time Menu Set Time of setpoint of return to Time the flashing Menu Lead-in digit © Aqua Lung International, Inc. (2017) Doc. 12-7876-r04 (10/11/17)
Page 30: Set Mode
Set Mode allows you to choose between diVE (standard recreational dive), GAUGE, and FrEE (free diving) modes of operation. NOTE: The i100 will be locked in Gauge mode for 24 hours after surfacing from any Gauge or Violation Dive. Otherwise, you may switch modes freely while in any Surface Mode.
Page 31: Sn (Serial Number)
DIVE SURFACE MODE SN (SERIAL NUMBER) Information displayed on the Serial Number screen should be recorded and kept with your sales receipt; it will be required in the event that your i100 requires factory service. SERIAL NUMBER revision # serial #...
Page 33: Initiating A Dive
DIVE OPERATION INITIATING A DIVE With the i100 activated, a dive will commence upon descending to 1.5 m (5 ft) for at least 5 seconds. Below is a diagram to help you navigate Dive Mode functions. NO DECO DIVE MAIN...
Page 34: Dive Alt 1
This screen simply tells you the current time of day and ambient temperature. DIVE ALT 2 The ALT 2 screen displays information pertaining to nitrox; it is bypassed if the i100 is set for Air Mode. saturation 0 - 100...
Page 35: Safety Stop Main
SURFACING Upon ascending to 0.9 m (3 ft) the i100 transitions to Dive Surface mode. For the first 10 minutes after a dive the i100 will continue to display the maximum depth and elapsed dive time. Once the surface time reaches 10 min- utes the i100 will display the standard Dive Surface screen.
Page 36: Gas Switches
• If you exceed certain limits, the i100 will not be able to help you get safely back to the surface. These situations exceed tested limits and can result in loss of some functions for 24 hours after the dive in which a violation occurred.
Page 37 If the current PO value of the gas is greater than 1.6, then a warning not to switch will display. The i100 will main- tain the current gas without switching. The diver may override the i100 and force the gas switch by pressing the button during the "HI PO2"...
Page 38: Decompression
If gas 2 is set on and the current gas is not the best gas when approaching the decompression stop zone, the i100 will warn you to switch gases. You must confirm the gas switch by holding the button for 2 seconds. If the gas switch is not confirmed within 30 seconds, no switch will be made.
Page 39: Decompression Stop Main
> The added penalty (deco) time will have to be cleared in addition to the original required stop time. > If the total stop time (original + penalty time) is cleared the i100 will revert to normal No Decompression status with no further penalty.
Page 40: Dv 1 (Delayed Violation 1)
Bar Graph will flash until it is silenced. ALT screens can be accessed and appear similar to Deco ALT screens. *DV 1 appears similar to CV but your i100 will now lock into Violation Gauge Mode 5 minutes after surfacing. Unlike CV, it will do this whether the stop times are cleared or not.
Page 41: Dv 3 (Delayed Violation 3)
Also, the Up Arrow icon, UP message will flash, and Current Depth/Max Depth/DTR will only indicate dashes signifying that you are too deep. * The maximum functional depth Dive/Gauge/Free Mode 100 M (330 FT) is the depth at which the i100 can properly perform calculations or provide accurate display information.
Page 42: High Po
Warning Level, the audible alarm sounds and the O2 SAT (saturation) value will flash in place of the DTR. The DTR will be restored when the audible alarm is silenced. % O2 SAT flashing © Aqua Lung International, Inc. (2017) Doc. 12-7876-r04 (10/11/17)
Page 43: Alarm
MAX O2 SAT (100% O2 SAT) will flash (in place of max depth and TTS) until on the surface. DURING AUDIBLE ALARM AFTER AUDIBLE ALARM % O2 SAT required flashing stop depth required required required stop time flashing stop time stop depth © Aqua Lung International, Inc. (2017) Doc. 12-7876-r04 (10/11/17)
Page 44: Alarm On Surface
• Access to Dive ALT screens is allowed during the first 10 minutes, then access to the Dive Surface Menu is allowed. SURFACE < 10 MIN, SURFACE > 10 MIN, 100% O2 SAT VGM TRIGGERED % O2 SAT alternating with flashing % O2 SAT © Aqua Lung International, Inc. (2017) Doc. 12-7876-r04 (10/11/17)
Page 46: On The Surface Before A Dive
To view i100 logs, change settings, or switch modes you must navigate through the Surf Main Menu. Enter the menu by holding the button for 2 seconds. When you reach the end of the menu the i100 will return to the Gauge Surface Main screen.
Page 47: Initiating A Dive
GAUGE MODE INITIATING A DIVE With the i100 activated, a Gauge dive will commence upon descending to 1.5 m (5 ft) for at least 5 seconds. Be- low is a diagram to help you navigate Gauge Dive Mode functions. GAUGE DIVE MAIN...
Page 48: Dv 3 (Delayed Violation 3)
Too Deep. *The maximum functional depth Dive/Gauge/Free Mode 100 M (330 FT) is the depth at which the i100 buutons can properly perform calcula- tions or provide accurate display information. Refer to the Specifications in the back.
Page 50: Free Dive Mode Details
No Deco Dive Time Remaining are carried over from one operating mode to the other, which permits the user to maintain awareness of nitrogen absorption and off-gassing status. • The mathematical models currently used in the i100 are based on no decompression/decompression multilevel repetitive dive schedules.
Page 51: On The Surface Before A Dive
: sec up to 9:59, 0 for none yet then 10 - SCREENS ALT 1 ALT 2 NOTE: If no button is pressed the i100 will revert to the Free Surface Main screen after 5 seconds. to access Main Menu ALT 1 (LAST) The ALT 1 screen displays essential data from the last dive.
Page 52: Free Surf Main Menu
2 seconds. Scroll through the menu by repeatedly pressing the button. When you reach the end of the menu the i100 will return to the Free Surface Main screen. Hold the button for 2 seconds to choose menus or options from the Main Menu when available.
Page 53: Set Free Al (Alarms)
Free Dive Mode. EDT ALARM LEAD-IN SET EDT ALARM ON or OFF ON or OFF save next item in access toggle setting Main Menu Set EDT setpoint Alarm © Aqua Lung International, Inc. (2017) Doc. 12-7876-r04 (10/11/17)
Page 54: Depth Al (Alarm)
SHARED SETTINGS To change items that Free Mode shares with Dive Mode, access the Dive Main Menu, then SET UTIL, then - > H2O ACT > Units > CF (Conservative Factor) © Aqua Lung International, Inc. (2017) Doc. 12-7876-r04 (10/11/17)
Page 55: Initiating A Dive
FREE MODE INITIATING A DIVE With the i100 activated, a Free dive will commence upon descending to 1.5 m (5 ft) for at least 5 seconds. Below is a diagram to help you navigate Free Dive Mode functions. FREE DIVE MAIN...
Page 56: Free Dive Alarms
FREE CDT (COUNTDOWN TIMER) ALARM When a set Countdown Time reaches 0:00, the audible alarm will sound. During which time, the graphic CDT will flash on the Free Dive Main screen. flashing © Aqua Lung International, Inc. (2017) Doc. 12-7876-r04 (10/11/17)
Page 57: Free Edt (Elapsed Dive Time) Alarm
VIO ALARM VIO ALARM N2 ALARM (during audible alarm) (after audible alarm) flashing flashing flashing flashing VIO < 1 MIN ON SURFACE VIO > 1 MIN ON SURFACE flashing alternating with FREE © Aqua Lung International, Inc. (2017) Doc. 12-7876-r04 (10/11/17)
Page 59: Pc Interface
PC INTERFACE The i100 is configured with a Data Port located on the side of the module that enables it to be connected to a PC through a USB port using a special interface cable that is available as an optional accessory. The USB Driver required for the interface system is downloadable from www.aqualung.com.
Page 60: Module Removal From A Boot
• Send freight prepaid and insured using a traceable method. • Non-warranty service must be prepaid. COD is not accepted. • Additional information is available on the Aqua Lung web site AquaLung.com or on the local Aqua Lung web site that serves your global region.
Page 61 • Inspect the button, lens, and housing to ensure they are not cracked or damaged. WARNING: If damage or corrosion is found, return your i100 to an authorized Aqua Lung dealer, and DO NOT attempt to use it until it has received factory prescribed service.
Page 62: Returning The Module To A Boot
• No adjustments are made during any time that the Wet Contacts are bridged. • When diving in high altitude waters from 916 to 4,270 meters (3,001 to 14,000 feet), the i100 automatically ad- justs to these conditions providing corrected depth, and reduced NO DECO and O2 MIN (O saturation) times at intervals of 305 meters (1,000 feet).
Page 64: No Deco Time Limits
0:04 0:04 0:03 0:03 0:03 0:03 0:03 0:05 0:04 0:04 0:04 0:04 0:03 0:03 0:03 0:03 0:03 0:03 0:03 0:05 0:04 0:04 0:03 0:03 0:03 0:03 0:03 0:03 0:03 0:03 0:03 © Aqua Lung International, Inc. (2017) Doc. 12-7876-r04 (10/11/17)
Page 65: Oxygen Exposure Limits
OXYGEN EXPOSURE LIMITS (from NOAA Diving Manual) MAX DURATION MAX TOTAL DURATION SINGLE EXPOSURE 24 HOUR DAY (ATA) (MIN) (MIN) 0.60 0.70 0.80 0.90 1.00 1.10 1.20 1.30 1.40 1.50 1.60 © Aqua Lung International, Inc. (2017) Doc. 12-7876-r04 (10/11/17)
Page 66: Specifications
• Out of the water - between -6.6 and 60 °C (20 °F and 140 °F). • In the water - between -2.2 and 35 °C (28 °F and 95 °F). © Aqua Lung International, Inc. (2017) Doc. 12-7876-r04 (10/11/17)
Page 67 1 minute • Free Countdown Timer 59:59 to 0:00 min:sec 1 second • Violation Countdown Timer 23:50 to 0:00 hr:min 1 minute Max Functional Depth: Limit: • DIVE/GAUGE/FREE 100 M (330 FT) © Aqua Lung International, Inc. (2017) Doc. 12-7876-r04 (10/11/17)
Page 68: Abbreviations/Terms
SS = Safety Stop H2O = Water SURF = Surface HIST = History TOT = Total IMP = Imperial (measure) TTS = Time To Surface LAST = Previous (dive) VIO/VIOL = Violation © Aqua Lung International, Inc. (2017) Doc. 12-7876-r04 (10/11/17)
Page 69 www.aqualung.com...
