i550C

(P/N's NS117121 - NS117126)

Dive Computer Owner's Manual

Doc. 12-7909-r06 (7/10/19)

Table of Contents

Summary of Contents for Aqua Lung i550C

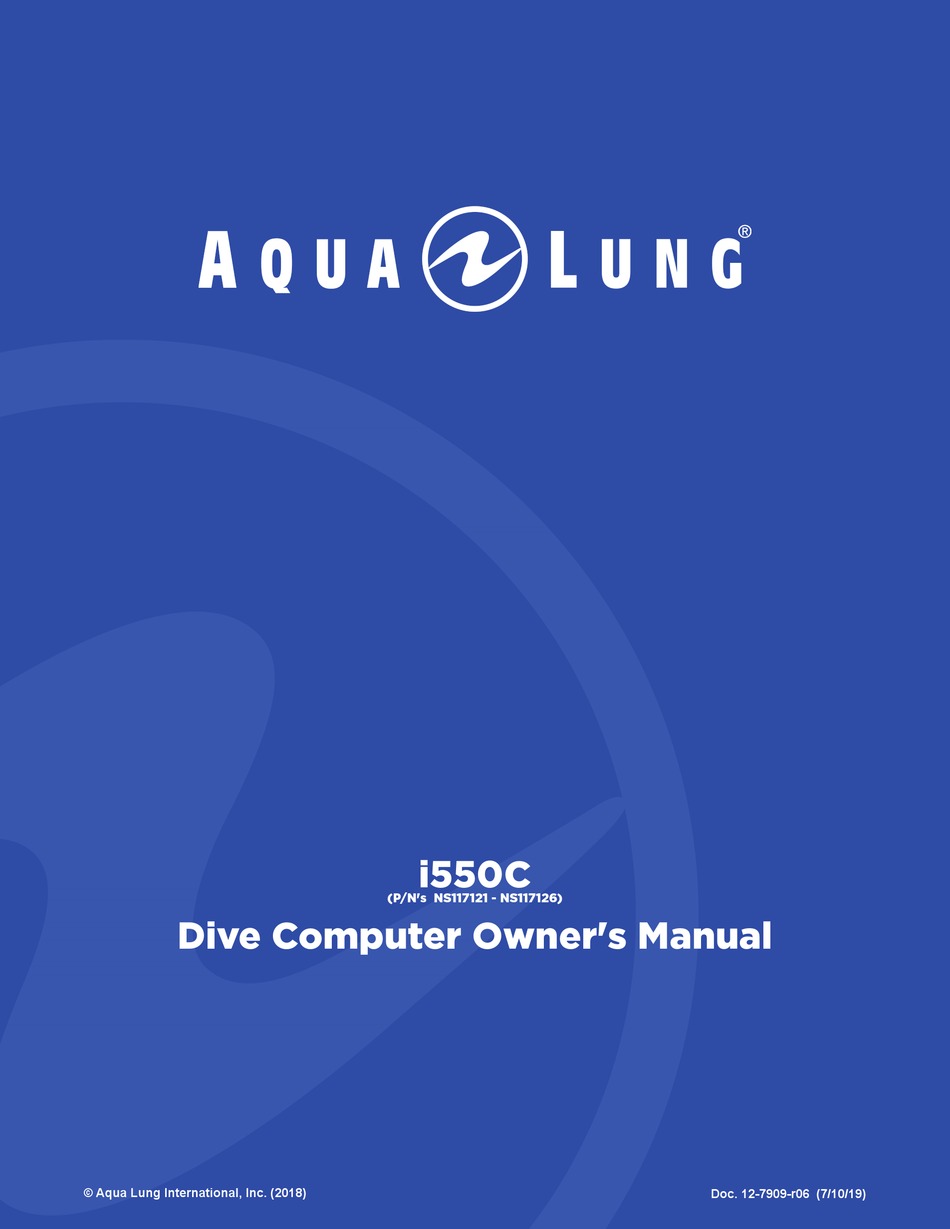

Page 1 (P/N's NS117121 - NS117126) Dive Computer Owner's Manual © Aqua Lung International, Inc. (2018) Doc. 12-7909-r06 (7/10/19)
Page 2: Notices
The program within the i550C simulates the absorption of inert gases into the body by using a mathematical model. This model is merely a way to apply a limited set of data to a large range of experiences. The i550C dive computer model is based upon the latest research and experiments in decompression theory.
Page 3: Warnings
This is an important reason for not pushing the tables, oxygen exposure limits, or entering decompression without proper training. If you dive in situations where your trip would be ruined or your safety would be jeopardized by losing the use of your i550C, a backup instrument system is highly recommended.
Page 4 • If you exceed certain limits, the i550C will not be able to help you get safely back to the surface. These situations exceed tested limits and can result in loss of some functions for 24 hours after the dive in which a violation occurred.
Page 5: Table Of Contents
QUICK DISCONNECT HOSE (OPTIONAL) 5. SS (SAFETY STOP) 6. CF (Conservative Factor) TECHNICAL DATA 7. bLUETOOtH (Bluetooth Communication) 8. LIGHt (BACKLIGHT) DURATION NO DECOMPRESSION TIME LIMITS 9. SR (SAMPLE RATE) OXYGEN EXPOSURE LIMITS © Aqua Lung International, Inc. (2018) Doc. 12-7909-r06 (7/10/19)
Page 6 ALTITUDE LEVELS SPECIFICATIONS ABBREVIATIONS/TERMS AQUA LUNG DISTRIBUTORS © Aqua Lung International, Inc. (2018) Doc. 12-7909-r06 (7/10/19)
Page 8: Basics
Welcome to your new i550C. The i550C is an easy to use dive computer utilizing a two button interface. Divers may choose between either Dive or Gauge Mode. Though the i550C is easy to use, you will get the most out of your new i550C if you take some time to familiarize yourself with its displays and operation.
Page 9: Display Icons
Safety Stop Temperature Gas Time Remaining Dive Time or Dive # Decompression Stop Triggered Surface Time Descend, Ascend, or Stop Gas # Low Battery Value is Pressure Value is Maximum Bluetooth (on) © Aqua Lung International, Inc. (2018) Doc. 12-7909-r06 (7/10/19)
Page 10: Buttons
GETTING STARTED BUTTONS The i550C utilizes 2 control buttons called the ADV (Advance) and SEL (Select) buttons. They allow you to select mode options and access specific information. They are also used to enter settings, activate the backlight, and acknowledge the audible alarm. Throughout this manual they will be referred to as the ADV and SEL buttons.
Page 11: Button Functions
BUTTON FUNCTIONS ACTION BUTTON FUNCTION Press Any Button • to activate the i550C • to access Alt screens • to advance or step through menus • to toggle or change setpoints • to activate the backlight • to scroll quickly, changing setpoints •...
Page 13: Dtr (Dive Time Remaining)
DIVE FEATURES DTR (DIVE TIME REMAINING) The i550C constantly monitors No Decompression status and O2 Accumulation, and will display whichever time is the least amount available as DTR on the No Decompression Dive Main screen. The time being displayed will be identified by the NO DECO or O2 MIN icons.
Page 14: Asc Bar Graph
DS (DEEP STOP) When the DS selection is set to ON, it will trigger after descending deeper than 24 m (80 ft). The i550C then cal- culates (continually updating) a Stop Depth equal to ½ the Max Depth.
Page 15: Ss (Safety Stop)
Alarm Level • The i550C functions continue but the backlight and Bluetooth is disabled. • The Battery icon appears flashing. 5 seconds after entering Surface Mode the i550C will shut down. © Aqua Lung International, Inc. (2018) Doc. 12-7909-r06 (7/10/19)
Page 16: Audible Alarm
• Ascent above a Decompression Stop for more than 5 minutes. • Decompression requires a Stop Depth deeper than 18 m (60 ft) or deeper. • On the Surface during a Conditional Violation. © Aqua Lung International, Inc. (2018) Doc. 12-7909-r06 (7/10/19)
Page 18: On The Surface Before A Dive
To view i550C logs, change settings, or switch modes you must navigate through the Surf Main Menu. Enter the menu by pressing the ADV button. When you reach the end of the menu the i550C will return to the Dive Surface Main screen.
Page 19: Fly/Sat (Desat)
(hr:min), which will generally occur prior to the FLY countdown reaching 0:00 (hr:min), the SAT time is to remain on the screen as 0:00 until the FLY counter shuts the i550C off, 24 hours after the last dive. NO PREVIOUS DIVES...
Page 20: Plan
NOTE: New data will automatically overwrite the oldest data in memory when the memory becomes full. The i550C Log and Diverlog + Download data is stored separately in different partitions of the memory. The Log only stores a short summary of each dive. Alternately, the Diverlog + Download function stores much larger files for each dive.
Page 21: Set Gas
Within this screen you can select whether to use Air or Nitrox gas mixes. If Air is selected, the i550C will return you to the Set Gas Lead-in screen in the menu. If EAN is selected, the i550C will allow you to choose a...
Page 22 (gas 3 is similar) (gas 3 is similar) Gas # Gas # flashing, setting setting adjust PO adjust FO current flashing, setting setting Alarm Alarm setting setting save save setting setting © Aqua Lung International, Inc. (2018) Doc. 12-7909-r06 (7/10/19)
Page 23: Set Al (Alarms)
2. dEPTH AL (Audible Alarms) The Depth Alarm feature allows you to set a maximum depth alarm. SET DEPTH AL or 10 - 100 m (30 - 330 ft) to change setting save setting © Aqua Lung International, Inc. (2018) Doc. 12-7909-r06 (7/10/19)
Page 24: Edt Al (Elapsed Dive Time Alarm)
This feature allows you to set an alarm to go off with a designated reserve of dive time remaining. DTR AL DTR AL TRIGGERED flashing OFF or blank if switched on setpoint 5 - 20 min blank if OFF to change setting save setting © Aqua Lung International, Inc. (2018) Doc. 12-7909-r06 (7/10/19)
Page 25: Turn Al (Turn Pressure Alarm)
Pressing the SEL button while viewing the Set UTIL Lead-in screen accesses the Set UTIL Sub Menu. Within this menu you can customize the following nine operational functions. SET UTIL LEAD-IN next item in Main Menu access Set UTIL menu © Aqua Lung International, Inc. (2018) Doc. 12-7909-r06 (7/10/19)
Page 26: H2O Type (Water Type)
2. H2O ACT (Water Activation) The H2O ACT feature allows you to turn OFF water contact activation. WARNING: With H2O ACT turned OFF, you MUST remember to manually activate the i550C before any dive. SET H2O ACT ON or OFF...
Page 27: Deep Stop
6. CF (Conservative Factor) The CF feature can be set ON or OFF. SET CF ON or OFF toggle setting save setting © Aqua Lung International, Inc. (2018) Doc. 12-7909-r06 (7/10/19)
Page 28: Bluetooth (Bluetooth Communication)
Sleep Mode (screen is turned off) or a dive is started. The i550C returns to "sniffing" mode when the i550C returns to Surface Mode after a dive or a button is pushed to wake the com- puter from Sleep Mode on the surface. You will notice the Bluetooth® icon flashing as the Bluetooth®...
Page 29: Sr (Sample Rate)
Depending on the chosen settings and dive durations, it is possible to see dives stored in the i550C's onboard Log that have already been overwritten in the Download Partition. Choosing a longer Sample Rate inter- val will consume less memory per dive.
Page 30: Set Mode
Set Mode allows you to choose between diVE (standard recreational dive) or GAUGE modes of operation. NOTE: The i550C will be locked in Gauge mode for 24 hours after surfacing from any Gauge or Viola- tion Dive. Otherwise, you may switch modes freely while in either Surface Mode.
Page 31: Sn (Serial Number)
DIVE SURFACE MODE SN (SERIAL NUMBER) Information displayed on the Serial Number screen should be recorded and kept with your sales receipt; it will be required in the event that your i550C requires factory service. SERIAL NUMBER revision # serial #...
Page 33: Initiating A Dive
DIVE OPERATION INITIATING A DIVE With the i550C activated, a dive will commence upon descending to 1.5 m (5 ft) for at least 5 seconds. Below is a diagram to help you navigate Dive Mode functions. NO DECOMPRESSION DIVE MAIN...
Page 34: Dive Alt 1
This screen tells you the maximum depth, current time of day, and ambient temperature. DIVE ALT 2 The ALT 2 screen displays information pertaining to nitrox; it is bypassed if the i550C is set for air. saturation 0 - 100...
Page 35: Safety Stop Main
SURFACING Upon ascending to 0.9 m (3 ft) the i550C transitions to Dive Surface mode. For the first 10 minutes after a dive the i550C will continue to display the maximum depth and elapsed dive time. Once the surface time reaches 10 minutes the i550C will display the standard Dive Surface screen.
Page 36: Gas Switches
• If you exceed certain limits, the i550C will not be able to help you get safely back to the surface. These situations exceed tested limits and can result in loss of some functions for 24 hours after the dive in which a violation occurred.
Page 37 1.6, then a warning not to switch will display. The i550C will maintain the current gas without switching. The diver may overide the i550C and force the gas switch by pressing the SELECT button during the DO NOT SWITCH TO message.
Page 38: Decompression
DIVE OPERATION COMPLICATIONS The preceding information has described stress free casual dive operations. Your new i550C is also designed to help you to the surface in less than ideal situations. The following is a description of these. Take some time to familiarize yourself with these operations before diving your i550C.
Page 39: Cv (Conditional Violation)
Stop Depth, then the full Stop icon will be on solid. > If the DV1 status is ignored, the i550C will enter DV1 Surface mode for 5 minutes upon surfacing from the dive. VIOL (Violation) and Down Arrow icon will be flashing. After 5 minutes on the surface in DV1 mode, the unit will enter VGM (Violation Gauge Mode).
Page 40: Dv 2 (Delayed Violation 2)
* The maximum functional depth {Dive Mode 100 M (330 FT), Gauge Mode 120 M (399 FT)} is the depth at which the i550C can properly per- form calculations or provide accurate display information.
Page 41: Violation Gauge Mode On The Surface
(1.60) with icon will alternate with gas pressure. on for 10 seconds, gas pressure on for 50 seconds until PO decreases below 1.60, then PO will not be displayed. alternate with gas pressure © Aqua Lung International, Inc. (2018) Doc. 12-7909-r06 (7/10/19)
Page 42: High O2 Sat (Oxygen Saturation)
Stop Depth and Stop Time. Time When the audible alarm is silenced, the O2 SAT value will alternate with the Stop Depth Time. % O2 SAT flashing © Aqua Lung International, Inc. (2018) Doc. 12-7909-r06 (7/10/19)
Page 43: Alarm On Surface
• Access to Dive ALT screens is allowed during the first 10 minutes, then access to the Dive Surface Menu is allowed. SURFACE < 10 MIN, SURFACE > 10 MIN, 100% O2 SAT VGM TRIGGERED violation alternating with alternating with % O2 SAT SURF time © Aqua Lung International, Inc. (2018) Doc. 12-7909-r06 (7/10/19)
Page 45: On The Surface Before A Dive
To view i550C logs, change settings, or switch modes you must navigate through the Surf Main Menu. Enter the menu by pressing the ADV button. When you reach the end of the menu the i550C will return to the Gauge Surface Main screen.
Page 46: Initiating A Dive
GAUGE MODE INITIATING A DIVE With the i550C activated, a Gauge dive will commence upon descending to 1.5 m (5 ft) for at least 5 seconds. Below is a diagram to help you navigate Gauge Dive Mode functions. ALT 1...
Page 47: Dv 3 (Delayed Violation 3)
Too Deep. *The maximum functional depth {Dive Mode 100 M (330 FT), Gauge Mode 120 M (399 FT)} is the depth at which the i550C can properly per- form calculations or provide accurate display information. Refer to the Specifications in the back.
Page 49: Uploading/Downloading Data
Instrument Lens Protector. Small scratches will naturally disappear underwater. • Soak and rinse the i550C in fresh water at the end of each day of diving, and check to ensure that the areas around the Low Pressure (Depth) Sensor, water contacts, and buttons are free of debris or obstructions.
Page 50: Battery Replacement
• Check the metal contacts for any signs of stress or corrosion. WARNING: If damage or corrosion is found, return your i550C to an authorized Aqua Lung dealer, and DO NOT attempt to use it until it has received factory prescribed service.
Page 51: Altitude Sensing And Adjustment
• No adjustments are made during any time that the Wet Contacts are bridged. • When diving in high altitude waters from 916 to 4,270 m (3,001 to 14,000 ft), the i550C automatically adjusts to these conditions providing corrected depth, and reduced NO DECO (decompression) and O2 MIN (O satura- tion) times at intervals of 305 m (1,000 ft).
Page 52: Quick Disconnect Hose (Optional)
The optional Quick Disconnect allows for convenient removal and storage of your i550C console. Quick Disconnect Hose Removal • Push the hose fitting towards the i550C and turn counterclockwise ¼ turn. The hose will release from the con- sole. Quick Disconnect Hose Assembly •...
Page 54: No Decompression Time Limits
0:04 0:04 0:03 0:03 0:03 0:03 0:03 0:05 0:04 0:04 0:04 0:04 0:03 0:03 0:03 0:03 0:03 0:03 0:03 0:05 0:04 0:04 0:03 0:03 0:03 0:03 0:03 0:03 0:03 0:03 0:03 © Aqua Lung International, Inc. (2018) Doc. 12-7909-r06 (7/10/19)
Page 55: Oxygen Exposure Limits
OXYGEN EXPOSURE LIMITS (from NOAA Diving Manual) MAX DURATION MAX TOTAL DURATION SINGLE EXPOSURE 24 HOUR DAY (ATA) (MIN) (MIN) 0.60 0.70 0.80 0.90 1.00 1.10 1.20 1.30 1.40 1.50 1.60 © Aqua Lung International, Inc. (2018) Doc. 12-7909-r06 (7/10/19)
Page 56 • Out of the water - between -6.6 and 60 °C (20 °F and 140 °F). • In the water - between -2.2 and 35 °C (28 °F and 95 °F). © Aqua Lung International, Inc. (2018) Doc. 12-7909-r06 (7/10/19)
Page 57 23:50 to 0:00 hr:min 1 minute Max Functional Depth: Limit: • DIVE 100 M (330 FT) • GAUGE 120 M (399 FT) Rated Working Pressure: 0 to 300 bar (0 - 4350 psi) © Aqua Lung International, Inc. (2018) Doc. 12-7909-r06 (7/10/19)
Page 58 SURF = Surface M = Meters (depth) TTS = Time To Surface M-D (D-M) = Month - Day (Day - Month) VIO/VIOL = Violation AQUA LUNG DISTRIBUTORS List available at http://www.aqualung.com/distributors_intl.html. © Aqua Lung International, Inc. (2018) Doc. 12-7909-r06 (7/10/19)
Page 59 Planet Scuba Sdn Bhd Tel: +56-65-534416 info@aqualung.de St. Vincent & the Grenadines L-3-2, Block L, Plaza Damas, No 60, centrobuceo@dimarsa.cl www.aqualung.de West Indies Jalan Sri Hartamas 1, dimarsa.cl Tel: (784) 458-3826 © Aqua Lung International, Inc. (2018) Doc. 12-7892-r05 (10/11/18)
Page 60 Escafandra Dive & Travel Center Cabo Rojo aqualung@aqualung.co.jp Tel: 680-488- 1755 Tel: (504) 425-3326 Los Pinos #106 Col. Santa Engracia 00623 www.aqualung.com/jp www.necomarine.com www.utiladivecentre.com Garza Garcia, N.L Tel: (787) 255-0305 66267 paradisescubapr@yahoo.com © Aqua Lung International, Inc. (2018) Doc. 12-7892-r05 (10/11/18)
Page 61 P.O. Box 5588 Sunny Isles www.aquamaster.net St Croix, 00823-5588 The Scuba Shop SWEDEN Tel: (340) 778-1522 La Palapa Marina, Simpson Bay Ursuk Oy anchordivecenter@juno.com St. Maarten, DWI Teijonkatu 3 anchordivestcroix.com © Aqua Lung International, Inc. (2018) Doc. 12-7892-r05 (10/11/18)
Page 62 www.aqualung.com...
