A standard NTSC/PAL video input/ output connector enables an external video display (monitor/ TV) or
video recorder to be connected to the Prometheus C. An external 6VDC/600mA power source can also be
connected to the Prometheus C.
The Prometheus C is powered by two CR123A (2×3V) batteries.

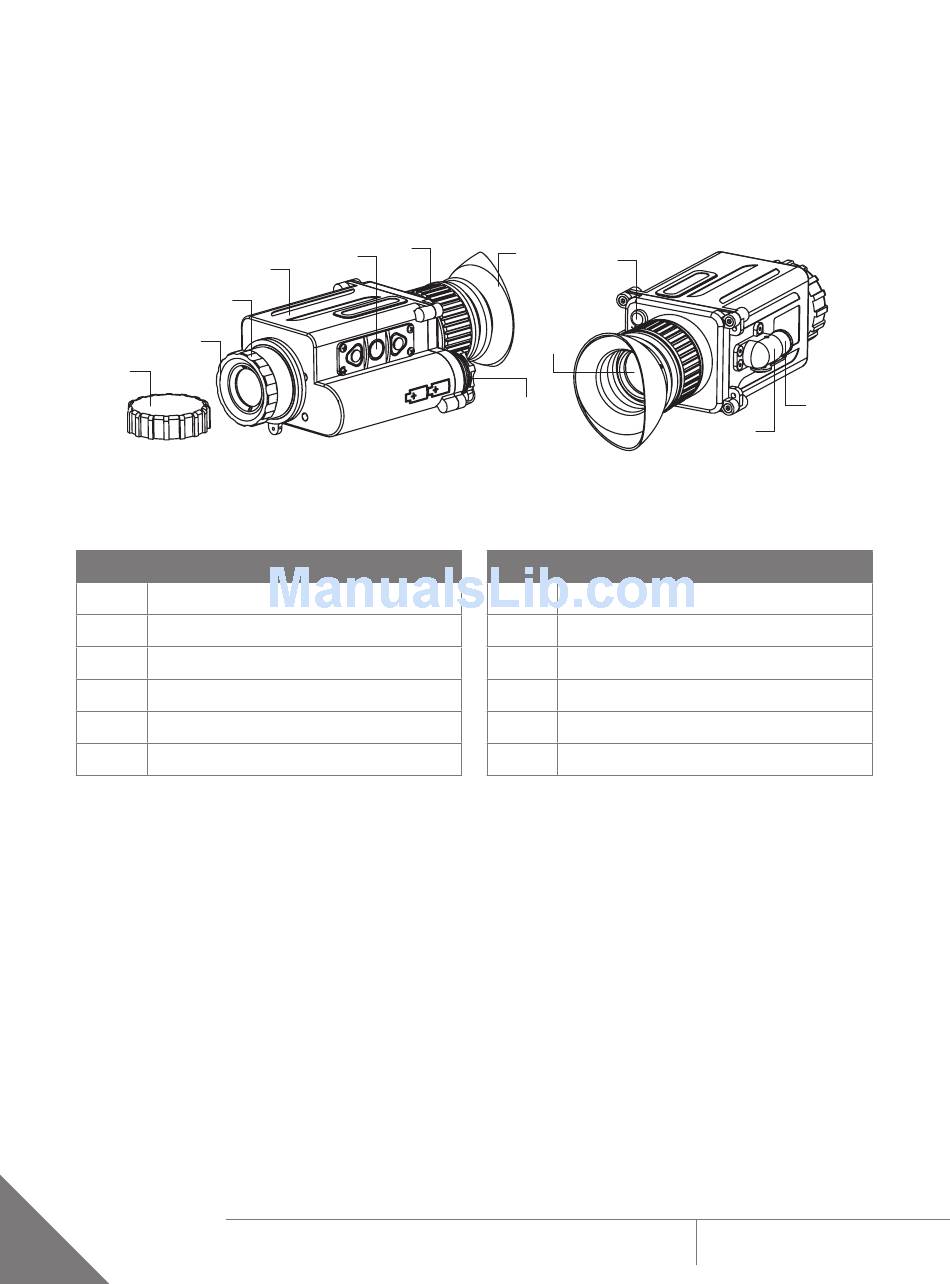

Figure 2-2 shows the Prometheus C. The ITEM NO. column of Table 2-1 indicates the number used to
identify items in Figure 2-2.
2
1
FIGURE 2-2. PROMETHEUS C THERMAL IMAGING MONOCULAR. SYSTEM DESCRIPTION
ITEM
1 Objective Lens Cap
2 Objective Lens
3 Objective Focus Ring
4 Body
5 Button Control Panel
6 Eyepiece Focus Ring
10
6
5
4
3
TABLE 2-1. SYSTEM DESCRIPTION
DESCRIPTION
ARMASIGHT by FLIR
7
10
9
8
ITEM
7 Eyecup
8 Battery Cap
9 Eyepiece
10 Power Button
11 Connector
12 Connector Cap
PROMETHEUS C
12
11
DESCRIPTION
