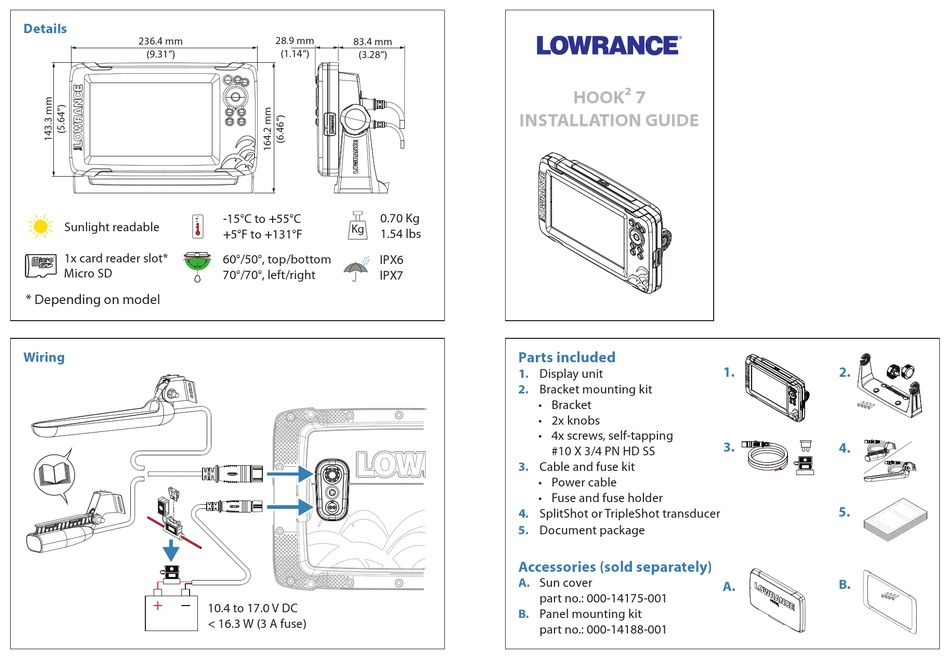

Details
236.4 mm
(9.31")
Sunlight readable
1x card reader slot*
TM
Micro SD
* Depending on model
Wiring
28.9 mm
83.4 mm
(1.14")
(3.28")
0.70 Kg
-15°C to +55°C
Kg
+5°F to +131°F
1.54 lbs
60°/50°, top/bottom
IPX6
70°/70°, left/right
IPX7
10.4 to 17.0 V DC
< 16.3 W (3 A fuse)
HOOK 7
INSTALLATION GUIDE
Parts included
1.
Display unit
2.
Bracket mounting kit
• Bracket
• 2x knobs
• 4x screws, self-tapping
#10 X 3/4 PN HD SS
3.
Cable and fuse kit
• Power cable
• Fuse and fuse holder
4.
SplitShot or TripleShot transducer
5.
Document package
Accessories (sold separately)
A.
Sun cover
part no.: 000-14175-001
B.
Panel mounting kit
part no.: 000-14188-001
1.
2.
3.
4.
5.
B.
A.
Advertisement
Related Manuals for Lowrance HOOK2 7
Summary of Contents for Lowrance HOOK2 7
- Page 1 Details 28.9 mm 236.4 mm 83.4 mm (1.14“) (9.31“) (3.28“) HOOK 7 INSTALLATION GUIDE 0.70 Kg -15°C to +55°C Sunlight readable +5°F to +131°F 1.54 lbs 1x card reader slot* 60°/50°, top/bottom IPX6 Micro SD 70°/70°, left/right IPX7 * Depending on model Parts included Wiring Display unit...
-
Page 2: Panel Mounting
Bracket mounting Panel mounting Recommended pilot holes. Material 10# screw Soft materials e.g. Plywood Ø 3.7-4.0 mm (5/32”) See panel mounting template for drilling and cutting details. Hard materials e.g. Fiberglass, Acrylic, Hardwoods Ø 4.1-4.7 mm (3/16”) Panel mounting kit is sold separately. Shop the largest selection of reliable marine electronics and navigation in our online store.
