Lowrance HOOK2 Quick Manual

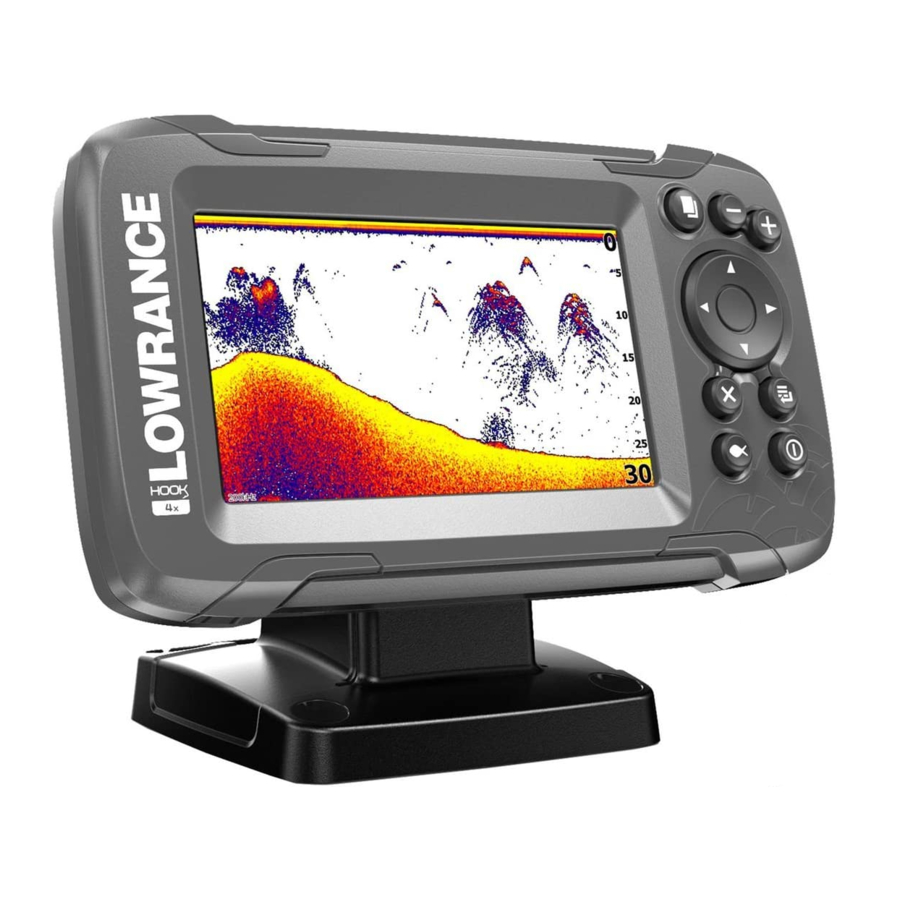

Front controls
1
4
6
System Controls dialog
Display illumination
•
Set brightness and select day/night mode from the System Controls dialog
•
Repeat short presses on the Power key to cycle the backlight brightness
*988-11956-001*
HOOK2 Quick Guide
4x Sonar models
1 Pages
Zoom
2
in/out
3 Arrows
2
4 Exit (X)
3
5
Menu/
7
5
Enter
6 Fish
7 Power
Press to toggle between the sonar and the
flasher page.
Press to zoom the sonar image.
In menus and dialogs: press the up/down arrows
to highlight an option.
Press to return to previous menu level and to
exit a dialog.
With no menu or dialog active: press to display
the menu.
In menus and dialogs: press to confirm a
selection.
Press to toggle between fish ID and traditional
sonar echoes.
Press to display the System Controls dialog.
Press and hold to power the unit on/off.
HOOK2 4x Sonar |
EN
•
Option ON
•
Option OFF
Quick Guide - EN
|
1
