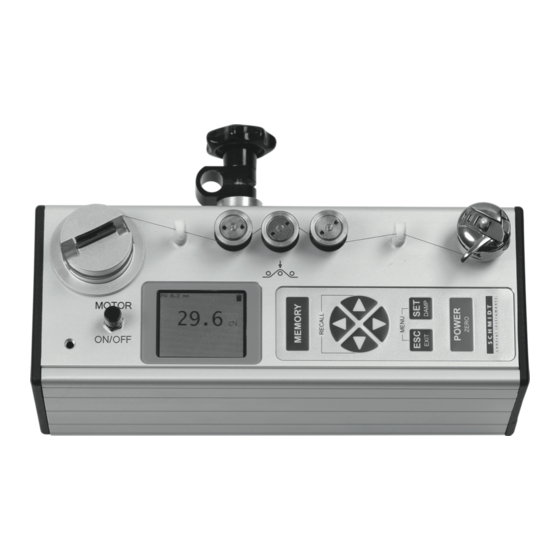

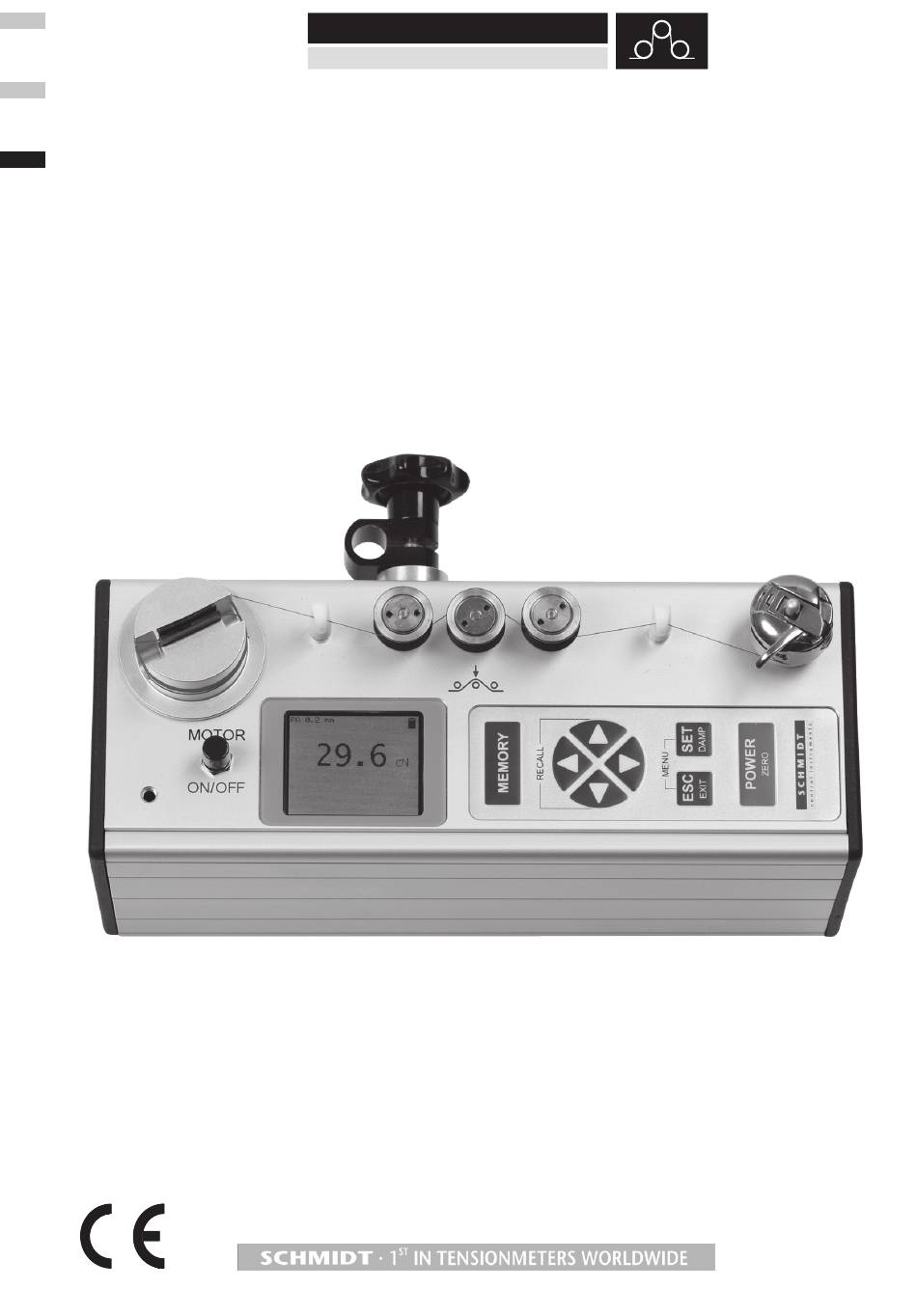

- Page 1 S C H M I D T c o n t r o l i n s t r u m e n t s Edition MST 01.E MST Series Model Instruction Manual Valid as of: 01.02.2022 • Please keep the manual for future reference!
-
Page 2: Table Of Contents
Contents 1 Warranty and Liability ....................4 1.1 Notices within the Operating Instructions .............. 4 1.2 Responsibilities of the Operating Company ............4 1.3 Responsibilities of the Personnel ................4 1.4 Informal Safety Measures..................5 1.5 Training of the Personnel ..................5 1.6 Intended Use ...................... - Page 3 3.7.3 Memory mode “C” ..................26 3.7.3.1 Saving data ..................... 26 3.7.3.2 Displaying the saved measured values ........... 26 3.7.3.3 Displaying the saved measured values on a PC ........27 3.7.3.4 Deleting the saved measured values ............27 3.7.4 Memory mode “F” ..................28 3.7.4.1 Saving data .....................
-
Page 4: Warranty And Liability
Warranty: - SCHMIDT tension meters are warranted for 12 months. Parts subject to wear, electronic components and measuring springs are not covered by the warranty. No warranty or liability will be accepted for bodily injury or property damage resulting from one or several of the following causes: - Misuse or abuse of the device. -
Page 5: Informal Safety Measures
The device is intended exclusively to be used as a tension meter. Any other use or any use exceeding this intention will be regarded as misuse. Under no circumstances shall HANS SCHMIDT & Co GmbH be held liable for damage resulting from misuse. The intended use also includes: - Complying with all notices included in the Operating Instructions and observing all inspection and maintenance works. -
Page 6: Available Models
PA: 0.50 mm Ø * Suitable for 95% of all applications. PA = Polyamide Monofilament. If the material to be measured differs significant from the SCHMIDT calibration material in diameter, rigidity, shape, etc., we recommend calibration using customer supplied material. For this purpose a material sample of about 5 m should be supplied. -
Page 7: Connecting The Tension Meter
The ID plate with the CE mark and the serial number as well as the calibration label (optional) and the SCHMIDT Quality Seal are provided at the rear side of the instrument. -
Page 8: Operating And Display Elements
3.2 Operating and display elements 13 Pos. 2 13 Pos. 1 fig. 3.1a 8 USB interface / power connector 1 Rollers 9 Switch ON / OFF motor 2 Display 10 Take off roller 3 „MEMORY“ key 11 Ceramic eyes 4 Arrow keys 12 Clamping device for suction cup 5 „SET / DAMP“... - Page 9 3.2 Operating and display elements Display with bargraph Memory mode (data Info on material Battery status indicator stored in the memory) Cal. adjustment Damping Free memory Saved measurement Current reading series Current reading as bar graph Measurement unit Readings MIN/MAX Alarm Tension range between the alarm values...
-
Page 10: Setup
+40 °C. Before you connect the AC adapter, verify that the supply voltage is correct (100 V - 240 V). HANS SCHMIDT & Co. GmbH provides no warranty or liability for any damage resulting from the use of AC adapters from other manufacturers. -
Page 11: Switching The Tension Meter On
3.3.2 Battery change (Cont.) Battery 3.3.3 Switching the tension meter on Press and hold the button (for approx. 1 sec.) until the DISPLAY shows the mea- suring range, the software and hardware versions, e.g. E 1.0, and then “0”. During startup, the tension meter performs an automatic zero adjustment. If the tension meter does not display zero, perform a manual zero adjustment procedure (see chapter 3.5.1). - Page 12 3.4 Tension meter settings Cont. Main Menu Submenu Settings Menu Description Material [1] to [4] Chapter 3.4.1 Material-Set-up Cal. — [- 10 %] - [+ 10 %] Chapter 3.5.6 Adjustment [numeric] • Measured value displayed as number and alarm monitoring [Bargraph] • Measured value displayed as number, Display bar graph trend display and alarm —...
-
Page 13: Material Menu
- Insert a password and choose a protection level - Exit the main menu, to apply the password protection The factory setted password is „0000“ If you forgot the password, please contact HANS SCHMIDT & Co GmbH to request the master password. -
Page 14: Factory Reset
3.4.3 Factory reset A factory reset resets the tension meter to its original manufacturer settings. This proce- dure will delete all settings, including any customer-defined material characteristics (calibrations); the factory calibration, however, will be kept. Customer calibrations will be deleted. Operating Procedure Requirements: - Tension meter switched on as described in Chapter 3.3.3. -
Page 15: Measuring The Upper Tension
3.5.2 Measuring the Upper Tension To insert the process material: - At the sewing machine, thread the upper thread all the way through to the take-up lever - Thread the upper thread through the first ceramic eye, - and then through the measuring rollers (see material path symbol on front side) It is important to assure that the upper Thread runs smoothly between the measuring rollers. -
Page 16: Measuring The Lower Tension
3.3.3 Measuring the Lower Tension Requirements: - Fixture to determine bobbin case removed from postition 1 and screwed in at postition 2. - Tension meter switched on as described in Chapter 3.3.3. - Define the required tension meter settings (chapter 3.4) - Select the desired material characteristic (chapter 3.4.1) - Bring the tension meter into the desired measuring position and carry out a zero adjustment as described in chapter 3.5.1, if required. -
Page 17: Damping
3.5.4 Damping Feature to be used for tensions that vary strongly In the Damping menu (chapter 3.4.1), you can specify separate damping factors for each material characteristic. Back in the display mode, press the button to activate or de- activate the damping function. This is recommended if the displayed values vary strong- ly. -
Page 18: Cal. Adjustment
3.5.6 Cal. Adjustment By performing a calibration adjustment, you can adjust a material characteristic calibrated for a particular material to a different material or diameter without creating a new material characteristic. Requirements: - Prepare the measuring setup as shown in Fig. 3.5.6a. - Select the desired material characteristic (chapter 3.4.1). -
Page 19: Creating A Material Characteristic
The material and diam- eter is given in chapter 2. Factory calibrations using customer supplied materials follow the same procedure. In this case, however, the calibration on Schmidt material 1 is omit- ted. Fig. 3.6.1 shows a measuring setup for the calibration. -
Page 20: Calibration Procedure
10 %, 50 %, and 90 % of the measuring range. In 95 % of all industrial applications, the SCHMIDT calibration has been proven to provide the best results. In particular, it is suitable for comparative purposes. - Page 21 3.6.2 Calibration procedure In the „Material“ menu, select Calibration. Step 1: Set the calibration points and weights, e.g. in Newton using the calibration points 10 %, 40 %, and 70 % of full scale Start: Select the Start menu item. Alternative calibration points: 5 %, 45 %, 90 % 10 %, 50 %, 90 % 5 %, 50 %, 90 %...
-
Page 22: Verifying The Calibration
The diameter and mate- rial is given in chapter 2. Calibrations of the tension meter are performed according to the SCHMIDT factory procedure using weights that correspond to 10 %, 50 % and 90 % of the measuring range. -
Page 23: Memory Functions
3.7 Memory functions The tension meter is delivered with 5 different memory modes. You can store up to 999 measurement series at one or more machine positions. The number of storable measure- ment series is depending from the adjusted memory mode and the selected storage time and will be displayed in the setting menu of the memory mode. -
Page 24: Selecting The Memory Mode
3.7.1 Selecting the memory mode Requirements: - The tension meter has been switched on as described in chapter 3.3.3. - Open the menu by pressing the buttons simultaneously and select Memory Settings. - Select the desired memory mode in the user navigation. If the memory already contains data, a message will inform you that the data will be deleted. -
Page 25: Displaying The Saved Measured Values
- Number of measured values (Records) 3.7.2.3 Displaying the saved measured values on a PC The optional SCHMIDT software Tension-Inspect 3 allows you easily and accurately to analyze the saved measured values and export them to an Excel table. Sample memory printout 03.02.2022 11:37... -
Page 26: Memory Mode "C
3.7.3 Memory mode “C” Data is recorded during a user-defined period. The tension meter records 2 measured values/sec. 3.7.3.1 Saving data Requirements: - In the main menu, select „Memory Settings“ and then memory mode C. To save the first measurement series: - Press the button to start recording the measured values. -
Page 27: Displaying The Saved Measured Values On A Pc
3.7.3.3 Displaying the saved measured values on a PC The optional SCHMIDT software Tension-Inspect 3 allows you easily and accurately to analyze the saved measured values and export them to an Excel table. Sample memory printout 03.02.2022 12:29 MST-Series-306 200 cN Unit cN Material: PA 0.2 mm... -
Page 28: Memory Mode "F
3.7.4 Memory mode “F” Data is recorded during a user-defined period. The tension meter records 1000 measured values/sec. 3.7.4.1 Saving data Prerequisites: - In the main menu, select „Memory Settings“ and then memory mode F. To save the first measurement series: - Press the button to start recording the measured values. -
Page 29: Displaying The Saved Measured Values On A Pc
3.7.4.3 Displaying the saved measured values on a PC The optional SCHMIDT software Tension-Inspect 3 allows you easily and accurately to analyze the saved measured values and export them to an Excel table. Sample memory printout 03.02.2012 12:29 MTS-Series-306 200 cN Unit cN Material: PA 0.2 mm... -
Page 30: Memory Mode "H
3.7.5 Memory mode “H” The last max. 128 values are saved. In graphical mode, the display freezes so that you can view it after completion of the measurement. In numerical mode, the last mea- sured value is displayed. This memory mode does not record PEAK values. 3.7.5.1 Saving data Requirements: - In the main menu, select „Memory Settings“... -
Page 31: Displaying The Saved Measured Values
The measuring values can be shown as a graph by pressing 3.7.5.3 Displaying the saved measured values on a PC The optional SCHMIDT software Tension-Inspect 3 allows you easily and accurately to analyze the saved measured values and export them to an Excel table. -
Page 32: Deleting The Saved Measured Values
3.7.5.4 Deleting the saved measured values If data is saved in the tension meter, the display shows “Mem” and indicates the free memory space. Deleting data: - Press the „Recall“ buttons - Then press the button and confirm with the button. -
Page 33: Displaying The Saved Measured Values On A Pc
HANS SCHMIDT & Co GmbH. Certification to the CE specification does not extend to, and shall be invalid for any other combination. Under no circum- stances shall HANS SCHMIDT & Co GmbH be held liable for any damage re- sulting from the use of non-SCHMIDT sensors or cables. -
Page 34: Terminal Program
4.2 Terminal program The contents of the memory can be transferred to a PC using the USB interface of the tension meter. Connect the ETX/ETPX to the computer using the USB cable type K50202 which is sup- plied with the tension meter. Prerequisites: A communication program, such as Terminal, must be installed and configured on the computer. -
Page 35: Correspondence
Please indicate in your order whether you require an Inspection Certificate 3.1 according to DIN EN 10204. Service address: HANS SCHMIDT & Co GmbH Schichtstr. 16 D-84478 Waldkraiburg Germany... - Page 36 Yarn Package Durometer and Shore-A Durometer Sample Cutter Balance Moisture Meter Leak Tester Softometer More than 70 years - Worldwide - Hans Schmidt & Co GmbH Mailing address: Phone: e-mail: P. O. B. 1154 int. + 49 / (0)8638 / 9410-0 info@hans-schmidt.com...
