Barco PDS Series Quick Start Manual
Barco PDS Series Quick Start Manual

Barco PDS Series Quick Start Manual

Advertisement

Quick Links

PDS Series

Quick Start Guide

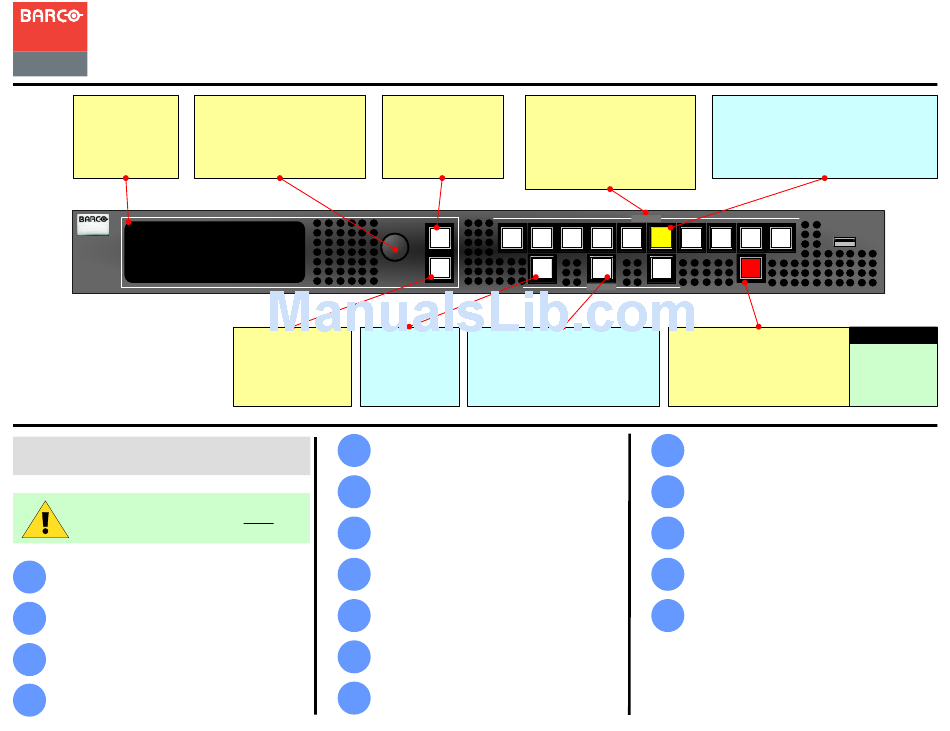

Visibly yours
Menu Display
Use ADJUST knob,
plus SEL and ESC
buttons to navigate
menus.
PROGRAM:
NEXT:
Quick Setup and Operations
The following list summarizes PDS setup and
operations. For error-free installation, always
refer to the listed section in the User's Guide.
Connect Power — Ensure that power is properly
1
connected to the PDS. (Chapter 3, "Cable and
Adapter Information")
Connect Inputs — Connect all analog, DVI, and
2
SDI input sources to the PDS. (Chapter 3, "Signal
Installation")
Connect Outputs — Connect the output(s) of the
3
PDS to your projector(s) or other target devices.
(Chapter 3, "Signal Installation")
Power On — Turn on power to the PDS, your
4
projector(s), and to all peripheral equipment.
(Chapter 4, "Power-Up Initialization")
Adjust
• Counter-clockwise: scroll down
menu tree, or decrement values.
• Clockwise: scroll up menu tree,
or increment values.
RGB
1024x768@59.94
SDI
NTSC (480i)
ESC
Press to exit a menu
Press to freeze or
without making changes,
un-freeze current
cancel an operation, or
Program source.
answer "No" to a query.
Lit solid = frozen.
5
6
7
8
9
10
11
SEL
Press to enter a menu,
Sources 1-4: Analog
change or accept a
Sources 5-8*: DVI or Analog
parameter, or answer
"Yes" to a query.
LOGO: Full screen capture
* (sources 7-8 not on PDS-701)
2
SEL
1
Adjust
ESC
FRZ
FRZ
BLACK
Press to pend or initiate a black transition.
Black Auto Take mode affects function
(User Preferences). Blinking = Pending.
Lit solid = Black on Program.
Factory Reset – When using a PDS for the first
time, perform a factory reset. (Chapter 4,
"Factory Reset Menu")
Launch GUI — (Optional) Connect your laptop to the
PDS, log onto the PDS using its IP address, and
launch the GUI. (Chapter 5, "GUI Operations")
Set Output Format — Set the desired output
resolution and frame rate. (Chapter 4, "Output
Format")
Enable Test Pattern — Turn on a test pattern, verify
an image, and adjust as required. When complete,
turn off the pattern. (Chapter 4, "Test Pattern")
Save Output Configuration — After completing all
output adjustments, save the output configuration.
(Chapter 4, "Save Config")
Select and Adjust Input — Select an input, and
perform the necessary image adjustments. (Chapter
4, "Input Menu")
Save Input Configuration — After completing all
adjustments for an input, save the input configuration.
(Chapter 4, "Save Config")
Technical Support:
Inputs Section
SDI: 3G/HD/SD-SDI
Inputs
3
4
5
6
7
8
BLACK
Effects
TAKE
Press to mix the selected input
to Program, or to execute a pending
black transition. Use the Setup Menu
to adjust the transition time.
Repeat for Each Input — Repeat steps 10 and
12
11 for each input that you have connected to the
PDS.
Adjust System Parameters — Adjust parameters
13
such as transition time, display brightness, user prefs.
(Chapter 4, "User Preference Menu," "System Menu")
Save System Configuration — After completing all
14
system adjustments, save the system configuration.
(Chapter 4, "Save System State")
Enable Remote Control — (Optional) Connect
15
Ethernet or Serial communications, and issue desired
commands. (Appendix B, "Remote Control")
Ready to Roll — With all output, input and system
16
configurations saved, press the desired input button,
and press TAKE.
Barco, Inc.
Toll Free:
+1 (888) 414-7226
Fax:
+1 (916) 859-2515
+1 (866) 374-7878
Website:
www.barco.com
Button States
Off: Input not selected
Blinking: Input "pending" for transition
Lit solid: Input on Program
PDS-902
SDI
LOGO
TAKE
NOTE
After each
TAKE, Program
and pending
sources flip-flop.
P/N 26-1204004-00 Rev 01
