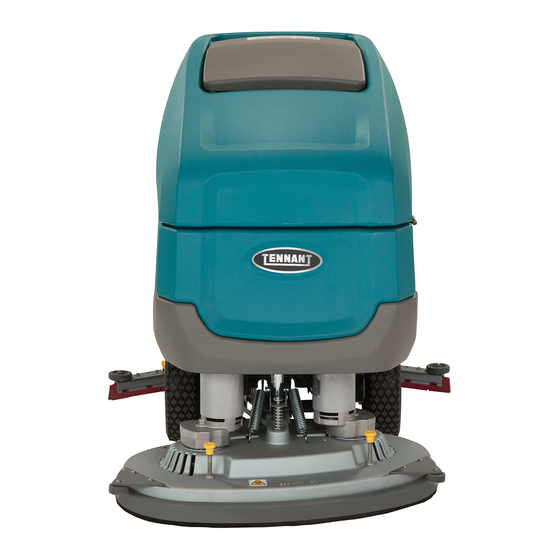

Tennant T600 EE Operator's Manual

Walk-behind floor scrubber, hygenic fully cleanable recovery tank, insta-fit adapter
Hide thumbs
Table of Contents

Advertisement

Quick Links

Fully Cleanable Recovery Tank
®
Hygenic
TennantTrue
®
Parts
Insta-Fit™ Adapter
North America / International
For the latest Parts manuals and other
language Operator manuals, visit:
www.tennantco.com/manuals

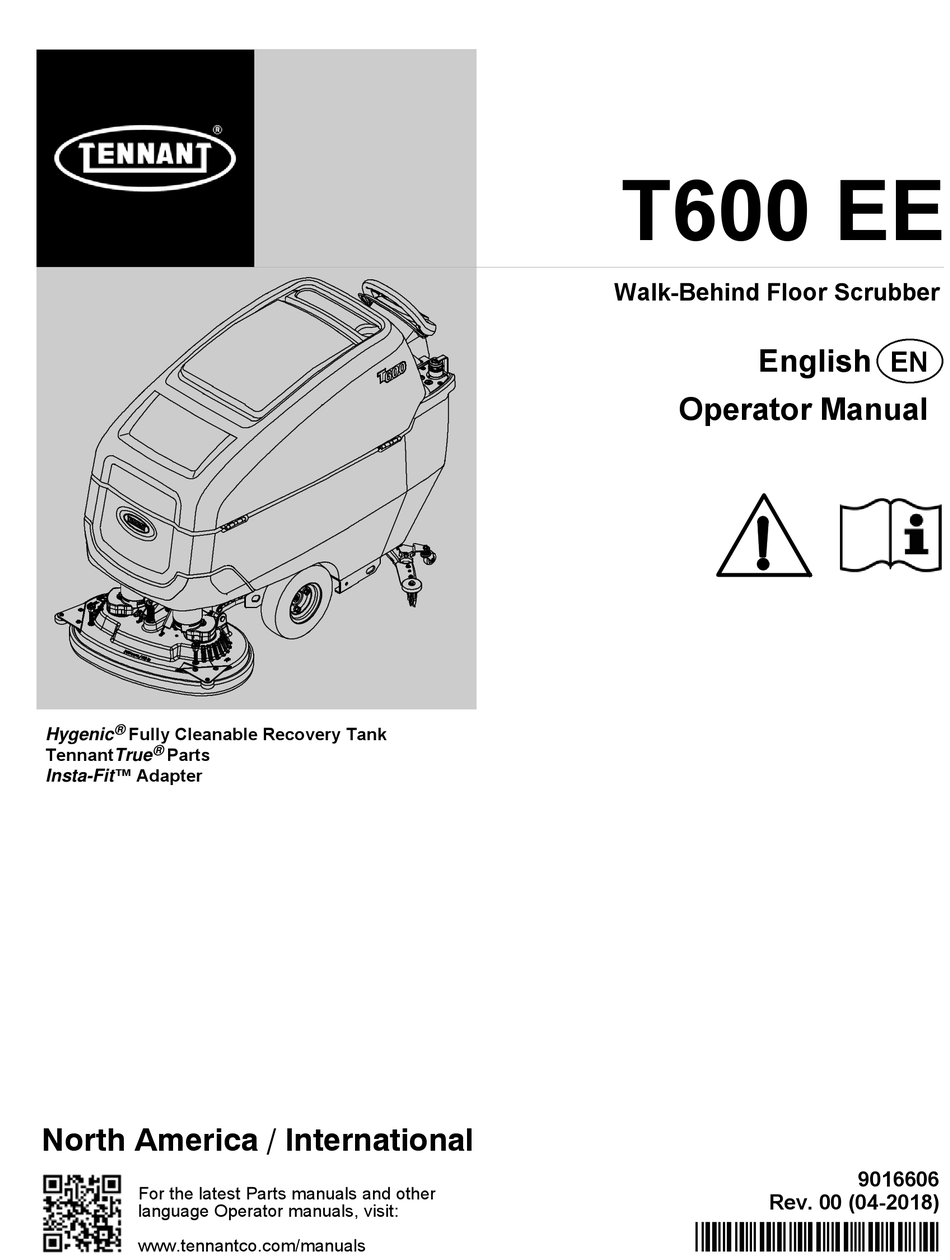

T600 EE
Walk-Behind Floor Scrubber
English
Operator Manual
Rev. 00 (04-2018)
*9016606*
EN
9016606

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the T600 EE and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Tennant T600 EE

Summary of Contents for Tennant T600 EE

  • Page 1 T600 EE Walk-Behind Floor Scrubber English Operator Manual Fully Cleanable Recovery Tank ® Hygenic TennantTrue ® Parts Insta-Fit™ Adapter North America / International 9016606 For the latest Parts manuals and other Rev. 00 (04-2018) language Operator manuals, visit: *9016606* www.tennantco.com/manuals...

  • Page 2: Introduction

    INTRODUCTION INTENDED USE This manual is furnished with each new model. The T600 EE walk-behind floor scrubber is intended for It provides necessary operation and maintenance commercial use, for example in hotels, schools, hospitals, factories, shops, offices and rental instructions.

  • Page 3: Table Of Contents

    ... . . SERVICE INDICATOR CODES ....SERVICE INDICATOR CODES - Continued Tennant T600 EE (01-2018)
  • Page 4 CONTENTS Tennant T600 EE (04-2018)

  • Page 5: Safety

    Locate all safety devices on With pads or accessories not supplied or the machine. Report machine damage or faulty approved by Tennant. The use of other operation immediately. pads may impair safety. In areas with possible falling objects.
  • Page 6 For Safety: wear protective gloves. All repairs must be performed by trained personnel. For Safety: wear eye protection. Use Tennant supplied or approved replacement parts. 6. When loading/unloading machine onto/off Do not modify the machine from its original truck or trailer: design.

  • Page 7: Safety Labels

    Electrical hazard. Batteries emit hydrogen gas. Disconnect battery Explosion or fire can result. Keep cables before servicing sparks and open flame away when machine. charging. Located above battery Located on bottom side of recovery tank. cable connectors. Tennant T600 EE (04-2018)

  • Page 8: Operation

    OPERATION MACHINE COMPONENTS Tennant T600 EE (04-2018)

  • Page 9: Machine Components

    No step 2. Preset zone control buttons 3. Brush pressure button 4. Brush pressure indicator Circuit breaker 5. Solution flow button 6. Solution flow indicator 7. Quiet-mode button 8. Service Indicator 9. Battery discharge indicator (BDI) Tennant T600 EE (04-2018)

  • Page 10: Installing Batteries

    BATTERY SPECIFICATIONS BLACK Requires six 6 volt deep-cycle batteries, ≤ 360 Ah @ FIG. 3 20 hr. Contact distributor or Tennant for battery IMPORTANT: Before charging batteries, make sure recommendations. the battery charger and the machine's battery FOR SAFETY: Before leaving or servicing machine,...

  • Page 11: Brush And Pad Information

    NOTE: The amount and type of soilage play an squeegee assembly size for specific scrub head size. important role in determining the type of brush or pad to use. Contact a Tennant representative for specific recommendations. Soft nylon bristle scrub brush (White) - Recommended for cleaning coated floors without removing finish.
  • Page 12 7. To readjust blade pitch, loosen locking nut on adjustment shaft and rotate shaft counterclockwise to raise squeegee tips or clockwise to lower squeegee tips (Figure 11). 7mm and 17mm wrench required. Blade Deflection FIG. 8 FIG. 11 Tennant T600 EE (04-2018)

  • Page 13: Brushes/Pads (Disk Scrub Head Model)

    FOR SAFETY: Do not operate machine with pads or accessories not supplied or approved by Tennant. The use of other pads may impair safety. 3. Set the yellow spring clips to the open position to make brush installation easier. Press spring clips together then downward to set (Figure 13).

  • Page 14: Filling Solution Tank

    WARNING: Flammable materials can cause an explosion or fire. Do not use flammable materials in tank(s). 3. Turn off the water supply and remove the fill hose from yellow strainer. 4. Replace the cap on the solution tank. FIG. 20 Tennant T600 EE (04-2018)

  • Page 15: Accessory Rails

    7. Remove the quick-disconnect auto-fill coupler from the water supply hose and store in a safe location. FIG. 23 ATTENTION: Do not use the accessory rails to lift machine, damage may occur. ATTENTION: Do not step on accessory rails, damage may occur. Tennant T600 EE (04-2018)

  • Page 16: Control Panel Operation

    NOTE: If brush pressure is set too high for scrubbing conditions, the brush pressure setting will automatically reduce to a lower setting and begin flashing. The flashing LED alerts the operator to reduce the brush pressure setting to prevent brush motor overload. Tennant T600 EE (04-2018)

  • Page 17: Preset Zone Control Buttons

    When the machine or on-board battery charger detects a fault, the service indicator will light up and begin flashing (Figure 29). The battery discharge indicator lights will also flash a fault code. See SERVICE INDICATOR CODES to diagnose machine fault. FIG. 29 Tennant T600 EE (04-2018)

  • Page 18: Machine Operation

    4. Push the directional lever forward to go forward (Figure 34). Pull the lever back to go in reverse. Lift squeegee assembly when reversing. FOR SAFETY: Before operating machine, set directional level before pulling start bail. FIG. 31 FIG. 34 Tennant T600 EE (04-2018)

  • Page 19: Double Scrubbing

    1-STEP button. Continue to drive machine forward to pick up any remaining water then raise squeegee assembly off floor. Turn key off. FOR SAFETY: Before leaving machine, stop on level surface, turn off machine and remove key. FIG. 38 Tennant T600 EE (04-2018)

  • Page 20: While Operating Machine

    10. Do not operate machine in areas where the ambient temperature is above 110ºF/43ºC or below 36ºF/2ºC. 11. If machine becomes disable, it can be pushed as described in the PUSHING AND TRANSPORTING MACHINE section. Tennant T600 EE (04-2018)

  • Page 21: Hour Meter

    (Figure 44). hose to drain. For models equipped with flow control valve drain hose, lower hose and slowly open valve to drain (Figure 41). FIG. 44 FIG. 41 Tennant T600 EE (04-2018)

  • Page 22: Draining Solution Tank

    3. Rinse solution tank with clean water. FIG. 45 4. Remove the solution tank filter and clean screen after every 50 hours of use (Figure 46). Solution filter is located under machine at rear. Drain solution tank before removing filter. FIG. 46 Tennant T600 EE (04-2018)

  • Page 23: Service Indicator Codes

    Propel I-Drive fault Reset circuit breaker or restart machine. If fault repeats, contact service. Propel I-Drive communication los Propel power cycle fault ☼ S S S ☼ Propel current limit fault Propel faults Propel faults Tennant T600 EE (04-2018)

  • Page 24: Service Indicator Codes - Continued

    Vacuum motor shorted fault ☼ ☼ ☼ S ☼ Scrub head imbalance Check brush wear. Contact service. Charger communication fault Restart. If fault repeats, contact service. S ☼ ☼ ☼ S Scrub control board communication fault Tennant T600 EE (04-2018)

  • Page 25: Maintenance

    Pneumatic air-filled tires (option) Check pressure Rear casters Lubricate 200 Hours Batteries, terminals and cables Check and clean 750 Hours Vacuum motor Replace carbon brushes 1250 Hours Propel motor Replace carbon brushes Brush motor Replace carbon brushes Tennant T600 EE (04-2018)

  • Page 26: Machine Maintenance

    FIG. 50 4. Drain and rinse out the solution tank (Figure 51). FIG. 47 AFTER DAILY USE 1. Drain and rinse out the recovery tank (Figure 48). See DRAINING TANKS. FIG. 51 FIG. 48 Tennant T600 EE (04-2018)
  • Page 27 (Figure 54). Rotate blade if worn. See SQUEEGEE BLADE REPLACEMENT. FIG. 56 10. Charge batteries (Figure 57). See BATTERIES. FIG. 54 FIG. 57 ATTENTION: Do not disconnect battery cables while charger is plugged in, circuit board damage may result. Tennant T600 EE (04-2018)

  • Page 28: After Weekly Use

    (air-filled) tires (Figure 63). The proper tire pressure 3. Remove the drip trap cover from the squeegee is 60 to 65 psi (415 to 450 kPA). assembly and clean reservoir (Figure 60). FIG. 63 FIG. 60 Tennant T600 EE (04-2018)

  • Page 29: After Every 100 Hours Of Use

    FIG. 64 FIG. 66 Lubricate rear casters with a grease gun. Use ELECTRIC MOTORS Lubriplate EMB grease (Tennant part no. 01433-1) (Figure 65). Replace motor carbon brushes as indicated. Contact trained personnel for carbon brush replacement. Carbon Brush Replacement...

  • Page 30: Batteries

    (Figure 67). Add distilled water if low. DO NOT OVERFILL. The electrolyte will expand and may overflow when charging. After charging, distilled water can be added up to about 3 mm (0.12 in) below the sight tubes. Tennant T600 EE (04-2018)

  • Page 31: Charging Batteries

    DC cord from the machine's receptacle charger refer to the charger owners manual for when the charger is operating. Arcing may result. If operating instructions. Contact distributor or Tennant the charger must be interrupted during charging, for battery charger recommendations.

  • Page 32: Settings

    (Flashes: Red-Red, Green-Green-Green-Green - pause - Green-Green-Green) seconds until new setting is displayed by green flashes. The new setting will repeat two times with two red flashed between repeats. 6. Confirm new setting by repeating step 1. FIG. 70 Tennant T600 EE (04-2018)

  • Page 33: Hydrolink Battery Watering System (Trojan Battery Option)

    FIG. 74 6. After adding water, replace the dust cap on the battery fill hose and store the hand pump hose inside the machine's battery compartment for future use. FIG. 71 Tennant T600 EE (04-2018)

  • Page 34: Battery Compartment Drain Hose

    Avoid contact with battery acid. FIG. 76 3. Remove worn blade(s) from the blade retainer FIG. 75 (Figure 77). 3. Firmly reconnect the drain hose to holder after draining battery compartment. FIG. 77 Tennant T600 EE (04-2018)

  • Page 35: Machine Jacking

    Support re-engaged. machine with jack stands. Use jack or hoist that FOR SAFETY: When servicing machine, do not will support the weight of the machine. push the machine on inclines with brake disabled. Tennant T600 EE (04-2018)

  • Page 36: Transporting Machine

    5. After storing machine in freezing temperatures, drain any remaining antifreeze from the solution tank. Add clean water to solution tank and operate the machine and spray nozzle to flush system. Tennant T600 EE (04-2018)

  • Page 37: Troubleshooting

    Flush vacuum hose Damaged vacuum hose Replace vacuum hose Clogged float shut-off screen in Clean screen recovery tank Recovery tank lid not completely closed Check lid for obstructions Defective seals on recovery tank lid Replace seal Tennant T600 EE (04-2018)
  • Page 38 Brush pressure set too high Lower brush pressure Solution tank auto-fill Coupler not properly connected Connect coupler does not function Faulty shut-off float Replace float. Contact service properly Machine not on level surface Machine must be on level surface Tennant T600 EE (04-2018)

  • Page 39: Specifications

    Sound uncertainty K 3 dB(A) Sound power level Lw + uncertainty Kw 95.8 dB(A) Machine vibration at hand-arm* <2.5 m/s Ambient operating temperature Min: 36F/2C, Max: 110F/43C *Values per IEC 60335-2-72. Specifications are subject to change without notice. Tennant T600 EE (04-2018)

  • Page 40: Machine Dimensions

    33.7 in / 865 mm 41.3 in / 1049 mm 32 in / 800 mm Model 32 in / 800 mm Model 43.6 in 1107 mm 65.8 in / 1671 mm 32 in / 800 mm Model Tennant T600 EE (04-2018)

  • Page 41: Supervisor Controls

    6. To exit the supervisor control mode, turn key off. mode 3, press and hold zone control buttons 1 and 2 at same time. After selection is made, the LED will turn solid to indicate new mode. Tennant T600 EE (04-2018)
