The OmniLogic HLWIRELESS Wireless Terminal is a rechargeable touchscreen remote control for
Hayward OmniLogic pool automation controls. The terminal is wireless and portable. Its unique
watertight housing and floating design allows it to be used outdoors, even while inside the pool or spa.
Wireless Signal
The Wireless Terminal
your home network's wifi system with a "line of sight" range of 300 feet to your network's access
point or router. To verify that there is adequate wifi coverage where the Wireless Terminal will be
used, check the signal with a smartphone or other mobile device connected to your home's wireless
network. If signal strength is weak, run a speedtest using a mobile speedtest app such as Speedtest
by OOKLA. Make sure your wifi download speed is at least 5mb/sec. If speed is too low or variable,
a wireless repeater should be installed in the home's network at a location that will provide good
signal strength where the Wireless Terminal is to be used.
Update MSP Firmware
The Wireless Terminal can only communicate with OmniLogic pool controls running firmware ver-
sion R2.0.0 or later. Because the firmware version on the Wireless Terminal must always match the
OmniLogic MSP, both must be updated to the latest available version. To update the MSP,
firmware upgrade procedure described in the OmniLogic Operation Manual.
Verify OmniLogic Connectivity
Before attempting to connect the Wireless Terminal to the OmniLogic, verify that the OmniLogic is
connected to the home's wireless network. This can be done easily by sending it a command through
the user's online account via a web browser or the mobile app.
Dock and Charge the Wireless Terminal
Before use, fully charge the Wireless Terminal for up to 8 hours or until the battery icon on the screen
shows full. Plug the charging cradle into a standard 120 VAC wall outlet, away from the pool area,

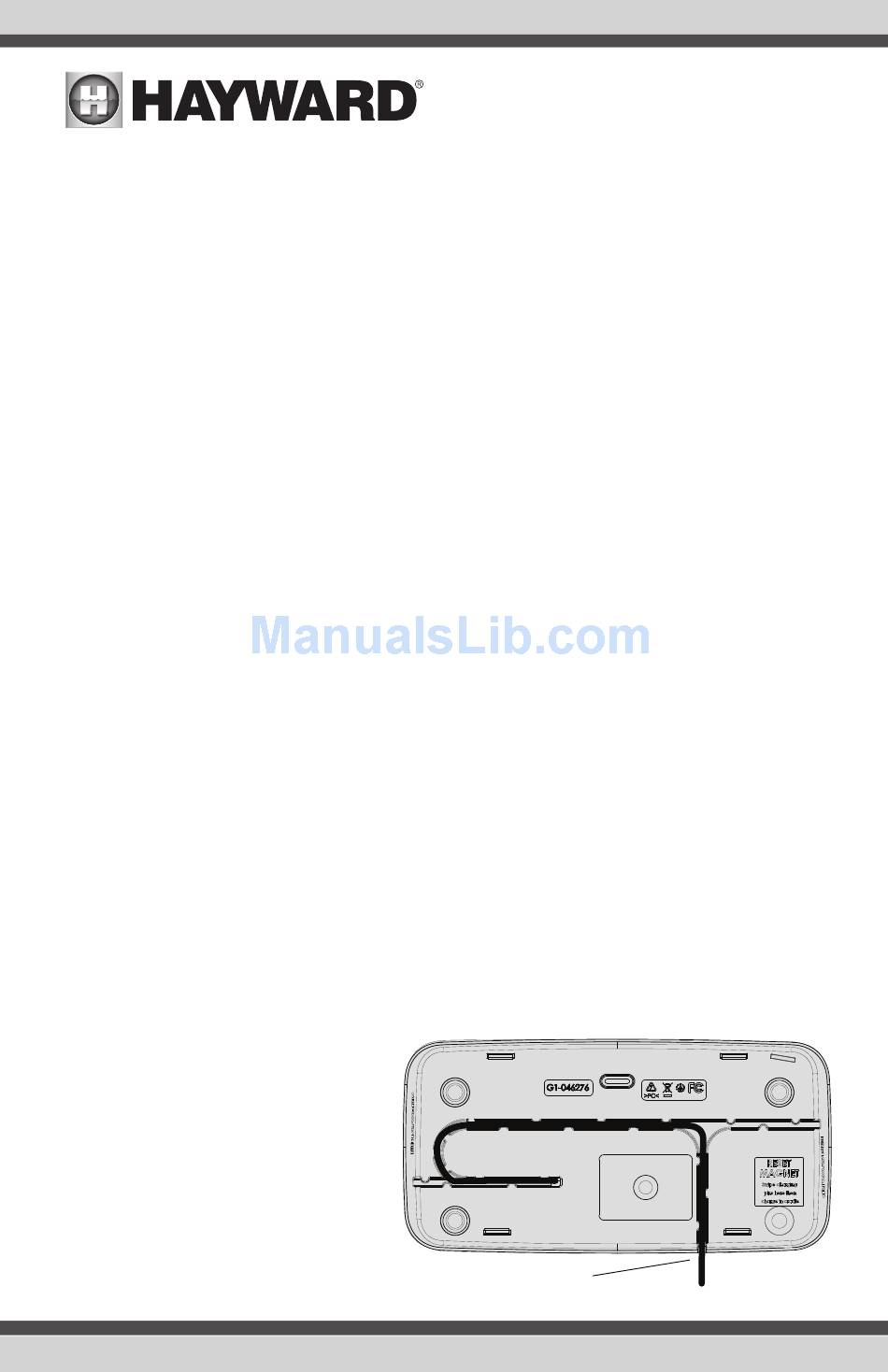

preferably indoors. The power cord is designed to insert into channels on the underside of the cradle
and exit out of the left side, right side or rear. Route the cord through the preferred channel depending
where the charging cradle will be located.
Insert the Wireless Terminal into the charg-
ing cradle. A "Charging" message will be
displayed to confirm that the HLWIRELESS
is charging. If a message is not seen, make
sure that the unit is seated properly and
there is power at the wall. Always charge
the Wireless Terminal at temperatures
above 50ºF (10ºC). Note that the Wireless
Terminal can be used while in the cradle no
matter what state the battery is in.
