Hayward OmniLogic Wireless Terminal Quick Start Manual

OmniLogic
®
Wireless Terminal

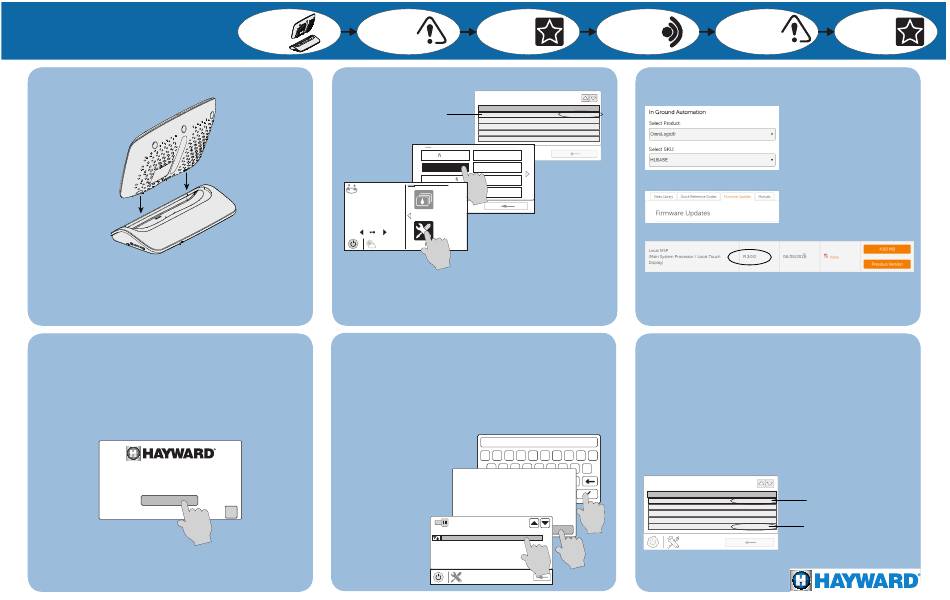

QUICK START GUIDE
Step 1
Charge the Wireless Terminal
The following steps should be performed ONLY with the Wireless Terminal
placed in the charging cradle, or after charging for at least 8 hours. If a firm-
ware upgrade is needed, it must be completed while in the charging cradle.
NOTE: The Wireless Terminal will take 12 seconds to reboot when placed in
the charging cradle if the battery is fully discharged.
Step 4
Go to "Wireless" Menu
With the latest MSP version loaded to your OmniLogic, Touch "OK" at the
welcome screen below from your Wireless Terminal to enter the wireless
configuration screen.
NOTE: This following procedure assumes that your OmniLogic system is
already connected to your home wireless network.
Welcome to the Hayward Wireless Remote
configuration
Press OK to setup your new remote.
OK
Side A
6 Easy
Steps
Charge the
Check latest
Wireless
MSP Firmware
Terminal
Version
Step 2 v
MSP version is displayed
SPA
90
71º F
air
Before connecting the Wireless Terminal to the OmniLogic system, verify
that you have the latest OmniLogic MSP firmware version. The firmware
version displayed in "System Info" should be the same as the latest version
available for download on the web. Follow the screens above to locate your
MSP firmware version and go to Step 3 to find the latest firmware version
on the web.
Step 5
The wireless configuration screen will display all available wifi networks. Se-
lect the desired network from the list and input your password on the screen
as shown below. Press the check mark to save your selection. Your Wireless
Terminal is now configured to your home wireless network and will automat-
ically pair with your OmniLogic system.
NOTE: The Wireless Terminal will
only connect to an OmniLogic that
is on the same network.
en
Upgrade MSP
if Necessary
Check MSP Firmware Version
msp id:3233
component HUA
MSP 00-46-01-21-a0
MP 1-65-0-2a-d4
Relays 3-10-0-0-1
VSP 10-0-0-0-4e
Wired Wall Mo.. 33-41-1-e7-42
1 / 2
SYSTEM INFO
con g wizard display
system info network
backup con g web server
restore con g date/time
SYSTEM
F
º con guration
themes
con g
Connect To Home
Wireless Network
password
q w e r t y u
a s d f g
h j
ABC z x c v b n
.?123 space
Please enter [yourwifi] network password
Network Connections dynamic
ON
Smith Home Wifi
WIRELESS
connection
Check latest
Connect to
Wireless Terminal
Home Wireless
Firmware Version
Network
Step 3
Check Latest Firmware
Version on the Web
version
R 2.0.1
R 1.0.2
R 1.0.2
R 3.0.4
R.2.0.0
A list of all the latest firmware versions available for download appear. Note
the firmware version located in the "Local MSP" box. If the version matches
your current version located in Step 2, then move on to Step 4. If not, then
go to Side B of this sheet to perform a firmware upgrade of your MSP.
Step 6
Check Wireless Terminal
Now that your Wireless Terminal is connected to the OmniLogic system,
the final step is to verify that the firmware version of the Wireless Terminal
matches that of the MSP.
To find the current firmware version of the Wireless Terminal, go to the Om-
niLogic and follow the same screens shown in Step 2. Then go to the web-
site (Step 3) and verify that the latest firmware version matches that of your
Wireless Terminal (shown as "Wi-fi Term" in the list below). If they match,
congratulations, you are finished configuring your Wireless Terminal to your
OmniLogic. If they do NOT match, follow the steps on Side B of this sheet to
perform a firmware upgrade to your Wireless Terminal. The unit must be in
i o p
the charging cradle when performing a firmware upgrade.
k l
←
m
msp id:3233
component HUA version
MSP 00-46-01-21-a0
R 3.0.0
MP 1-65-0-2a-d4 R 1.0.2
Relays 3-10-0-0-1
R 1.0.2
VSP 10-0-0-0-4e R 3.0.4
Wi-fi Term 33-41-1-e7-42
R 3.0.0
SYSTEM INFO
Upgrade
Wireless Terminal
if Necessary
To find the latest available firmware
version, go to www.hayward.com/
firmware and select "OmniLogic"
from the "Select Product" drop-
down menu and "HLBASE" from
the "Select SKU" drop-down menu.
Select the "Firmware Updates" tab.
Firmware Version
MSP firmware version
Wireless Terminal firmware
version
