Aztech WL590E Easy Start Manual

A
Package Contents
The following items are included in your WL590E
package. Please contact your Dealer if any of
the following items below are missing from your
package.
WL590E
Repeater
Easy Start Guide
WL590E |
Wall-Plugged Dual Band
Concurrent Wireless-AC Repeater
B

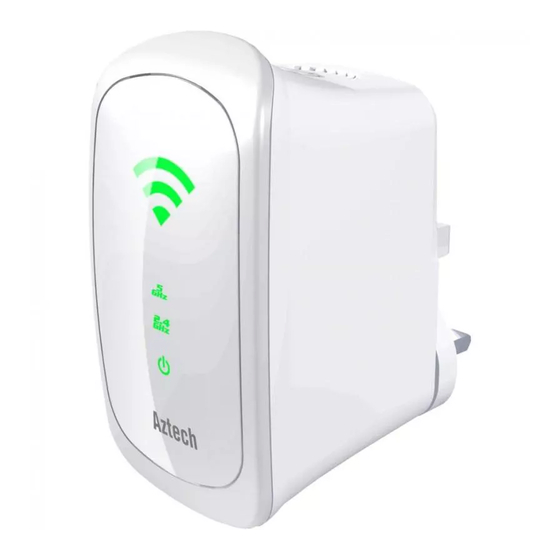

Device Overview
SMART LED
Indicator
5.0GHz LED
2.4GHz LED
Ethernet
Resource CD
Ethernet Cable Port
(RJ45)
2.4GHz / 5.0GHz LED Behaviors
OFF
No wireless device is connected.
Blinking
Wireless devices are currently connected and is actively
transmitting / receiving data.
Easy Start Guide Warranty Policy
Connecting the WL590E Repeater to
C
the Wireless Network
WPS Button
Kindly follow any of the setup options provided in
setting up your device.
NOTE: Before proceeding, kindly turn OFF/
!
disable any wireless adapter in your computer.
Power LED
A. Wi-Fi Protected Setup (WPS)
2
Press for 5
Reset Button
seconds
1
1. Plug in the WL590E Repeater to a power outlet.
2. Press the WPS button of your WL590E for five (5)
seconds.
3. Press the WPS button of your router for two (2)
seconds.
4. On your computer, launch any Web browser (e.g.
4. Reposition your WL590E for optimal signal quality
Internet Explorer, Google Chrome). You will be
and range extension.
redirected to the WL590E's Web User Interface. If
B. Web Browser Setup
in any case it doesn't, type http://10.0.10.254 in
the address bar then press Enter.
2
1
3
Choose a Wireless SSID (Wireless Network Name)
5.
1. Plug in the WL590E Repeater to a power outlet. from the list and click
2. Switch on the power outlet (if applicable). 6. Input the Wireless Password of the chosen Wireless
SSID then click the Apply button.
3. Connect one end of the Ethernet cable to the
WL590E Repeater and the other end to the Ethernet 7. Reposition your WL590E for optimal signal quality
port of your computer.
and range extension.
to connect.
