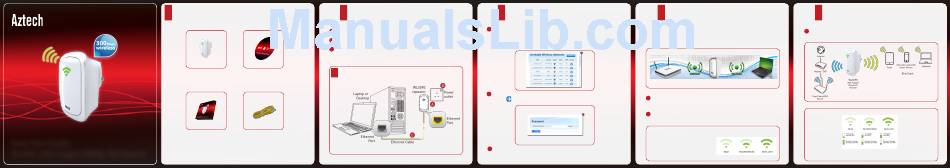

Aztech WL559E Easy Start Manual

Package Contents

WL559 Wireless N
Easy Start Guide

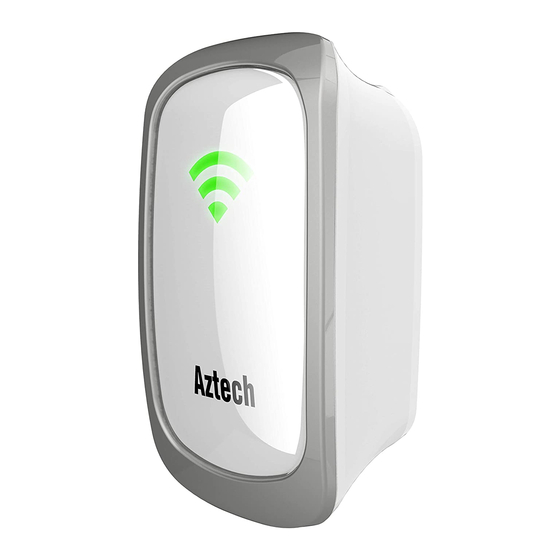

WL559E | Wall-Plugged 300Mbps Wifi Repeater
1
STEP Hardware Setup
Plug in the WL559E repeater to the power outlet.
A
Switch on the power outlet.
B
Connect the ethernet cable to the WL559E repeater and
C
to the computer.
Important: Please turn-off / disable any wireless client on
!
Resource CD
your computer before you proceed with Step 1
Repeater
Easy Start Guide Ethernet Cable (RJ45)
Connecting the WL559E to the
2 3
STEP STEP
Wireless Network
Launch the internet browser from your computer. The WL559E repeater will connect to the wireless network
A
You will be redirected to the WL559E repeater's user and will redirect to the user interface with the following
interface. (If in any case it doesn't, type http://10.0.10.254 status.
in your internet browser and then hit Enter.
B Choose SSID (Wireless Network Name) from the list and
A Disconnect the ethernet cable from the computer and
click to connect.
the WL559E repeater.
Place the WL559E repeater between the wireless router
B
and the blind spot.
Assess and identify the areas in your house
where the wireless reception from your main
router is weak or no wireless signal. Place the
WL559E repeater between the wireless router
and the point of weak wireless signal. It is
C
Input the Wireless Password for the network and click
ideal for the WL559E repeater to be placed in
a location, where it can receive good wireless
on Apply.
signal from the wireless router.
Place the WL559E Repeater Between Connect Your Wireless Devices
4
STEP
Wireless Router and the Blind Spot to the Repeater
Connect your wireless devices to the WL559E repeater's
A
wireless network.

Throughput vs Wireless Coverage

SMART LED Indicator

(Determines the signal strength of the wireless router)
Wireless reception and throughput may vary according to the number of wireless clients that
are in use at the same time, other nearby wireless devices, structure type, building materials
and other interference present.
