DICOM/HL7 Preset

NOTE:
Only if DICOM basic option is configured, [DICOM Preset] is available.
1. Click [DICOM/HL7] to open the DICOM Preset screen. Enter the AE Title of the ultrasound
system, port and PDU according to the actual situation.
2. DICOM Server Setting
1) Enter the device name and the IP address.
2) You can ping other machines to verify connection after entering the correct IP address by
clicking [Ping].
3) Click [Add] to add the server to the list if the connection works normally.

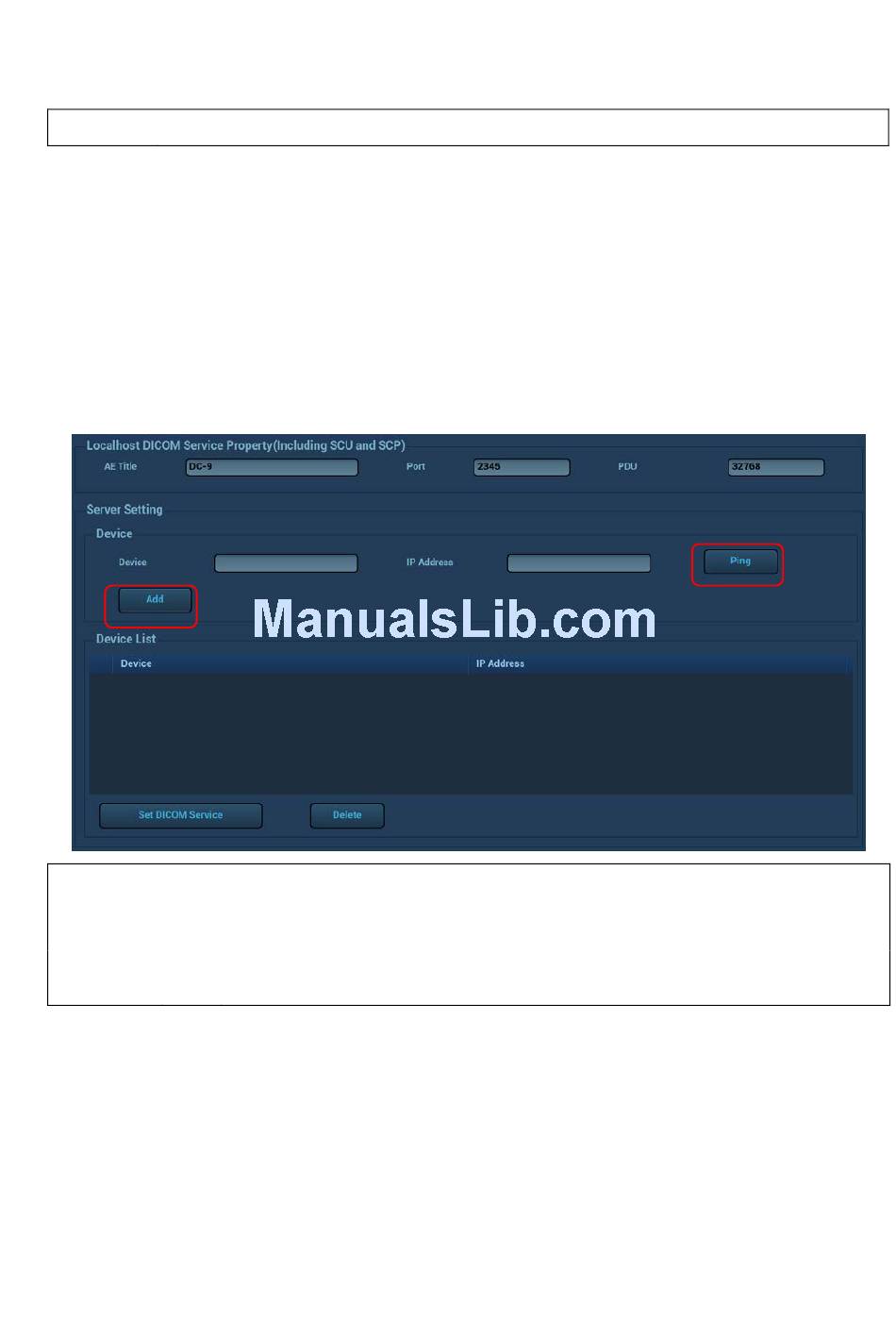

The following is an example:
NOTE: 1.
2.
3.
3. Click [Set DICOM Service].
3-28 System Installation
AE Title should be the same with the SCU AE Title preset in the server
(PACS/RIS/HIS).
DICOM communication port should be the same with the one in the server.
If the currently entered name has already existed, the system will pop up: "The
server name exists!" Click [OK] to enter another name.
