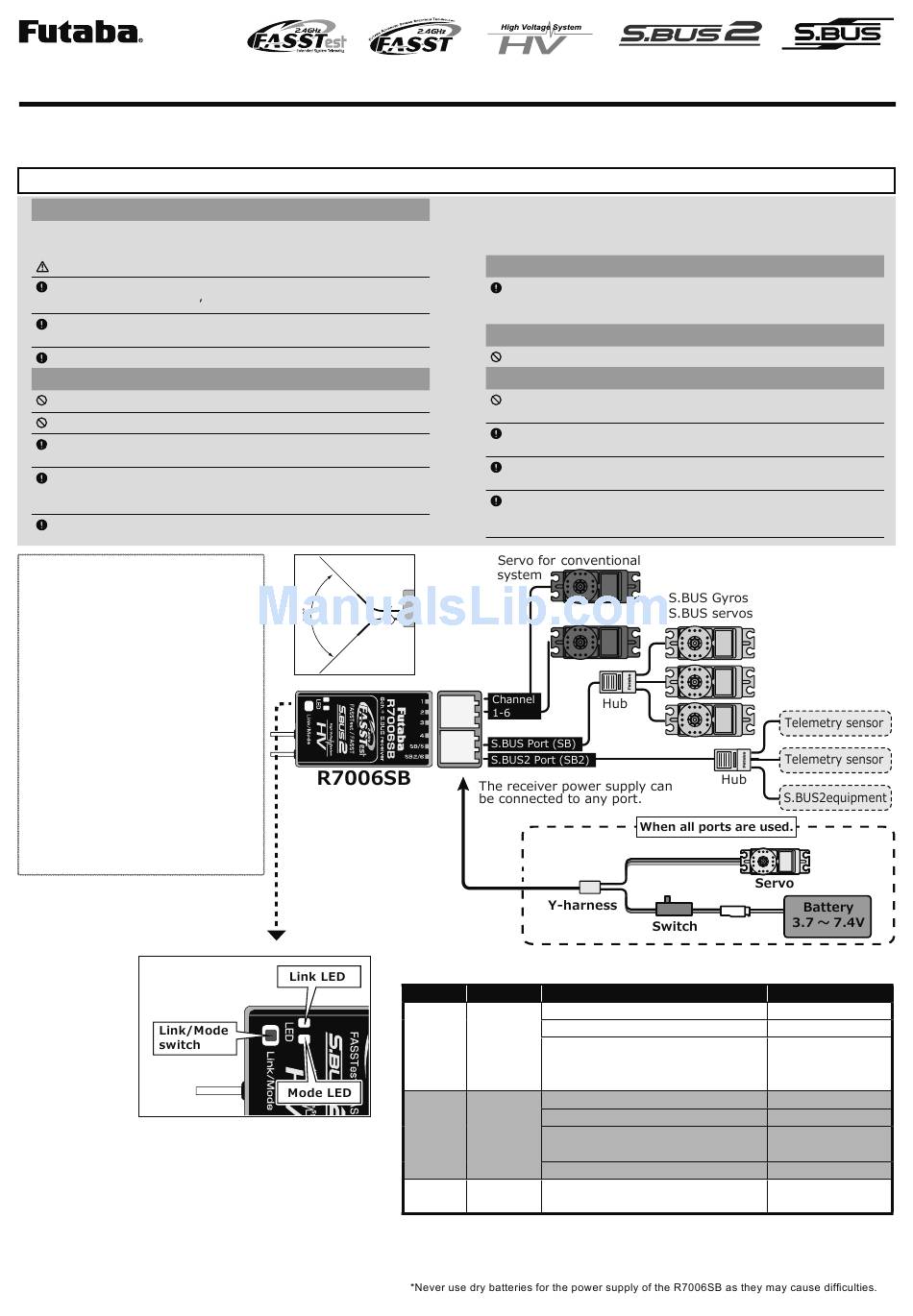

FUTABA R7006SB User Manual

1M23N31002

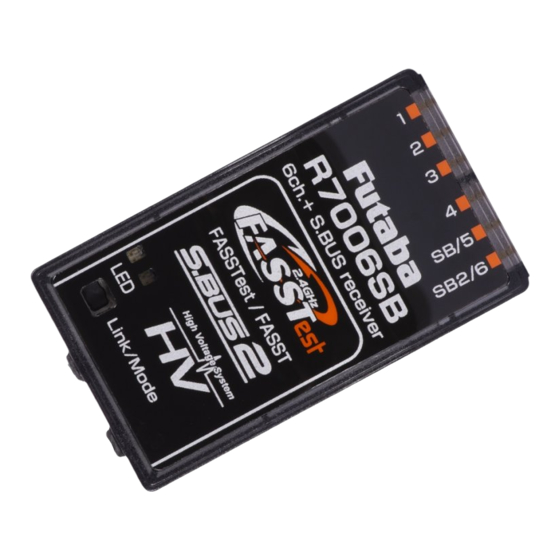

R7006SB
Thank you for purchasing a Futaba R7006SB FASSTest-2.4GHz compatible receiver. The R7006SB receiver features bi-directional communication
with a FASSTest Futaba transmitter using the S.BUS2 port. Using the S.BUS2 port an impressive array of telemetry sensors may be utilized. It also
includes both standard PWM output ports (1-6ch) and S.BUS output ports. The R7006SB can also be switched to the FASST(Multi-ch/7-ch) System.
Applicable systems: Futaba FASSTest-2.4GHz / FASST (Multi-ch,7ch) -2.4GHz system transmitter
●
Usage precaution
• Analog servos cannot be used with the R7006SB in the FASSTest
12CH / FASST High-speed mode.
WARNING
Changes or modification not approved by the party responsible for
compliance could void the user s authority to operate the equipment.
The R7006SB receiver should be protected from vibration by foam
rubber, Velcro, or similar mounting methods. Protect from moisture.
Keep away from conductive materials to avoid short circuits.
Antenna installation precaution
Do not cut or bundle the receiver antenna wire.
Do not bend the coaxial cable. It causes damage.
The antennas must be mounted in such a way to assure they are strain
relieved.
Keep the antenna as far away from the motor, ESC and other noise
sources as you possibly can.
Do not touch the antenna to metal, carbon, or other conductive material.
Be sure that the two antennas are placed at 90 degrees to each other.
Compliance Information Statement
(for U.S.A.)
This device, trade name Futaba Corporation, model
number R7006SB, complies with part 15 of the
FCC Rules. Operation is subject to the following
three conditions:
(1) This device may not cause harmful interference,
and
(2) This device must accept any interference
received, including interference that may cause
undesired operation.
(3) This module meets the requirements for a
mobile device that may be used at separation
distances of more than 20cm from human body.
To meet the RF exposure requirements of the FCC
this device shall not be co-located with another
transmitting device.
The responsible party of this device compliance is:
Futaba Service Center
3002 N Apollo Drive Suite 1, Champaign, IL
61822 U.S.A.
TEL (217)398-8970 or E-mail: support@futaba-rc.
com (Support)
R7006SB Specifications
FASSTest-2.4GHz system(18ch/12ch mode)
FASST-2.4GHz system (Multi-ch/7ch mode)
S.BUS2 and S.BUS port and 6ch for conventional system receiver
• Dual antenna diversity
• Size: 0.89 x 1.5 x 0.48 in. (22.5x38.3x12.2mm)
• Weight: 0.3 oz. (8.5g)
• Power requirement: 3.7V to 7.4V(Voltage range: 3.5 to 8.4V)
• Battery F/S Voltage: FASSTest---It sets up with a transmitter
FASST---3.8V
◆ FASSTest-2.4GHz Bidirectional Communication System / FASST(Multi-ch,7ch) -2.4GHz
◆ S.BUS2 / S.BUS Port and 6 Channels for Conventional System Receiver
Antenna
installation
■ The R7006SB has two antennas. In order to maximize signal reception
and promote safe modeling Futaba has adopted a diversity antenna system.
This allows the receiver to obtain RF signals on both antennas and fly
problem-free.
Antenna installation for carbon fuselage
You must leave 30mm at the tip of the antenna fully exposed. The
exposed antenna should be secured so that it cannot move around or
back inside of your aircraft.
Be careful of connector insertion
Don't connect an S.BUS servo / gyro to S.BUS2 connector.
Link precaution
Do not perform the linking procedure while the motor's main power is
connected or the engine is operating as it may result in serious injury.
When the linking is complete, please cycle the receiver power and
ensure the receiver is properly linked to the transmitter.
Please power up your system in this order: Transmitter first, followed
by the receiver.
If the R7006SB receiver was previously linked to another transmitter,
make sure that transmitter is not operating while linking the receiver to
the new transmitter.

LED Indication

System Mode LED
FASSTest Green Solid
FASST Off Receiving signals but ID is
FASSTest
- Unrecoverable error (EEPROM, etc.)
FASST
*When on "FASST-7ch" mode, the fail safe function can be set for 3-channel only.
*Be sure that when using ESCs regulated output the capacity of the ESC must meet your us-
age condition.
Status
No signal reception
Receiving signals
Waiting for link
No signal reception
Receiving signals
unmatched
Waiting for link
Link LED
Red Solid
Green Solid
Start → 2second
later → Red Blink
（1second）
Red Solid
Green Solid
Green Blink
Red Blink
Alternate blink
