FUTABA R7018SB Manual

1M23N30102
R7018SB

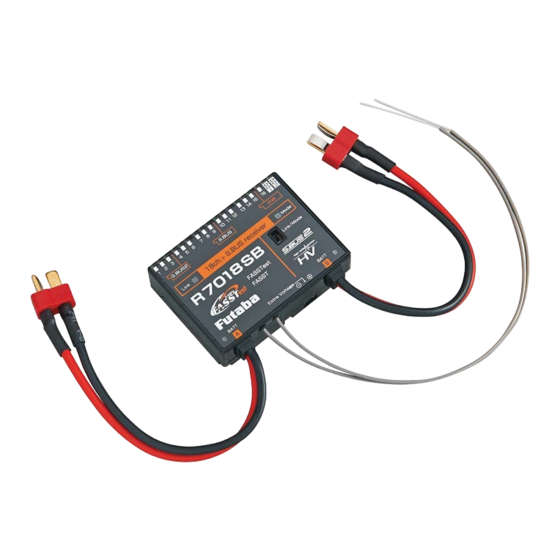

Thank you for purchasing a Futaba R7018SB FASSTest-2.4GHz compatible receiver. The R7018SB receiver features bi-directional
communication with a FASSTest Futaba transmitter using the S.BUS2 port. Using the S.BUS2 port an impressive array of telemetry
sensors may be utilized. It also includes both standard PWM output ports and S.BUS output ports.
The R7018SB has a Dual Battery System. Multiple servos can be driven by connecting 2 large capacity batteries. Even if the voltage
Applicable systems: Futaba FASSTest-2.4GHz / FASST-Multi-ch system transmitter
●

Usage precaution

• Analog servos cannot be used with the R7018SB in the
Fasstest 12CH mode.
• When the FASST Multi-ch High-speed Mode is used, analog
servos cannot be used at the CH1 ∼ 6 outputs for convention
systems. However, in other than the FASSTest 12CH mode,
analog servos can be used at CH7 ∼ 16, DG1 and DG2 at
any time.
• Don't connect to Extra Voltage Telemetry Port before turning
on a receiver.
WARNING
Changes or modification not especially approved by the party
responsible for compliance could void the user s authority to
operate the equipment.
When the model is not being used, always remove or
disconnect the battery.
■ When the switch is off, a slight amount of current still flows. Unless the
switch and battery are disconnected, the battery will be damaged from
excessive discharge.
The R7018SB receiver should be protected from vibration by
foam rubber, Velcro, or similar mounting methods. Protect from
moisture.
Keep away from conductive materials to avoid short circuits.
When only one battery is connected, always insulate the
unused connector.

Antenna installation precaution

Do not cut or bundle the receiver antenna wire.
Do not bend the coaxial cable. It causes damage.
The antennas must be mounted in such a way to assure they
are strain relieved.
CONTENTS
Use a Deans Ultra Plug with
the R7018SB power supply
b a t t e r y. B a t t e r i e s o f t h i s
connector cannot be used.
ESC ( motor controller) that supplies power
from the drive battery (BEC- Battery Eliminator
Circuit) to the receiver cannot be used.
◆ FASSTest-2.4GHz Bidirectional Communication System / FASST-Multi-ch 2.4GHz
◆ Dual Battery ◆ S.BUS2 / S.BUS Port and 18 Channels for Conventional System Receiver
R7018SB can also be switched the FASST-Multi-ch System.
Keep the antenna as far away from the motor, ESC and other
noise sources as you possibly can.
Be sure that the two antennas are placed at 90 degrees to each
other.
■ The R7018SB has two antennas. In order to maximize signal
reception and promote safe modeling Futaba has adopted a diversity
antenna system. This allows the receiver to obtain RF signals on both
antennas and fly problem-free.
Antenna installation for carbon fuselage
You must leave 30mm at the tip of the antenna fully exposed.
The exposed antenna should be secured so that it cannot move
around or back inside of your aircraft.
Be careful of connector insertion
Don't connect an S.BUS servo / gyro to S.BUS2 connector.
Do not connect the power supply battery to other than the
power supply connector.
■ There is the danger of ignition, explosion, or burning.

Link precaution

Do not perform the linking procedure while the motor's main
power connected or the engine is operating as it may result in
serious injury.
When the linking is complete, please cycle the receiver power
and ensure the receiver is properly linked to the transmitter.
Please power up your system in this order. Transmitter first,
followed by the receiver.
If the R7018SB receiver was previously linked to another
transmitter, make sure that transmitter is not operating while
linking the receiver to the new transmitter.
O r d i n a r y s w i t c h e s
(SSW-J, HSW-J, HSW-L,
etc.) cannot be used.
Compliance Information Statement
(for U.S.A.)
This device, trade name Futaba Corporation, model number R7018SB,
complies with part15 of the FCC Rules. Operation is subject to the following
two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference
that may cause undesired operation.
(3) This module meets the requirements for a mobile device that may be used
at separation distances of more than 20cm from human body.
To meet the RF exposure requirements of the FCC this device shall not be co-
located with another transmitting device.
The responsible party of this device compliance is:
Futaba Service Center
3002 N Apollo Drive Suite 1, Champaign, IL 61822 U.S.A.
TEL (217)398-8970 or E-mail: support@futaba-rc.com (Support)
- 1 -
