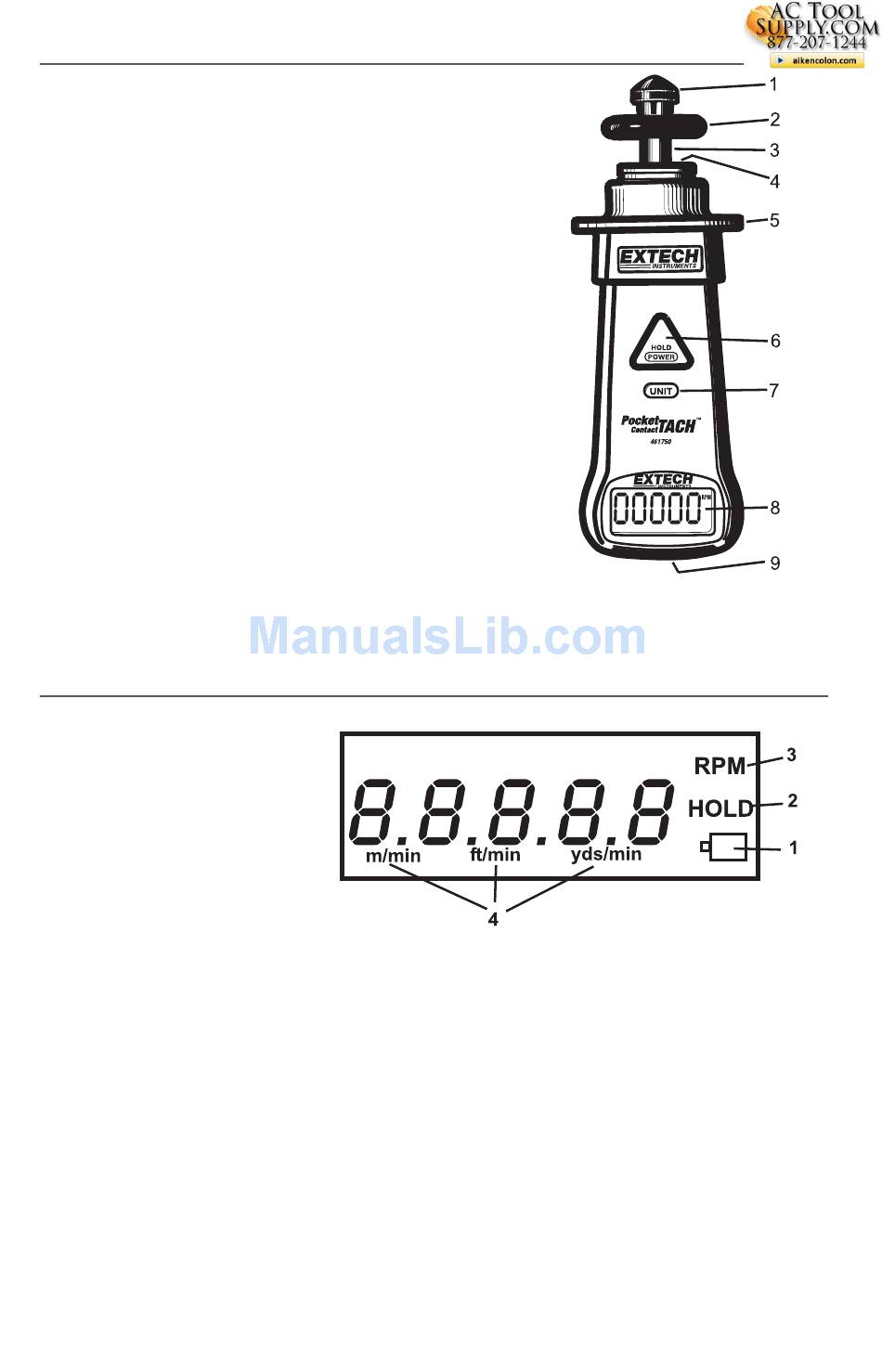

Meter Description

1. RPM adaptor (461750 only)
2. Wheel for linear surface measurements (461750 only)
3. Adaptor shaft (461750 only)
4. Model 461700 optics
5. Hand Guard (461750 only)
6. Power ON/OFF and HOLD button
7. Unit of measure selection button (461750 only)
8. LCD Display
9. Alternate Power ON/OFF button
Note that the battery compartment is located
on the rear of the instrument

Display Description

1. Low Battery
2. Data Hold
3. Rotations per minute
4. Meters per minute
Feet per minute
Yards per minute
