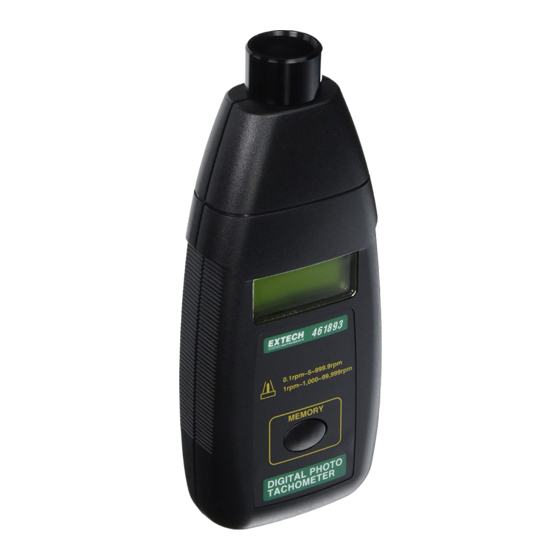

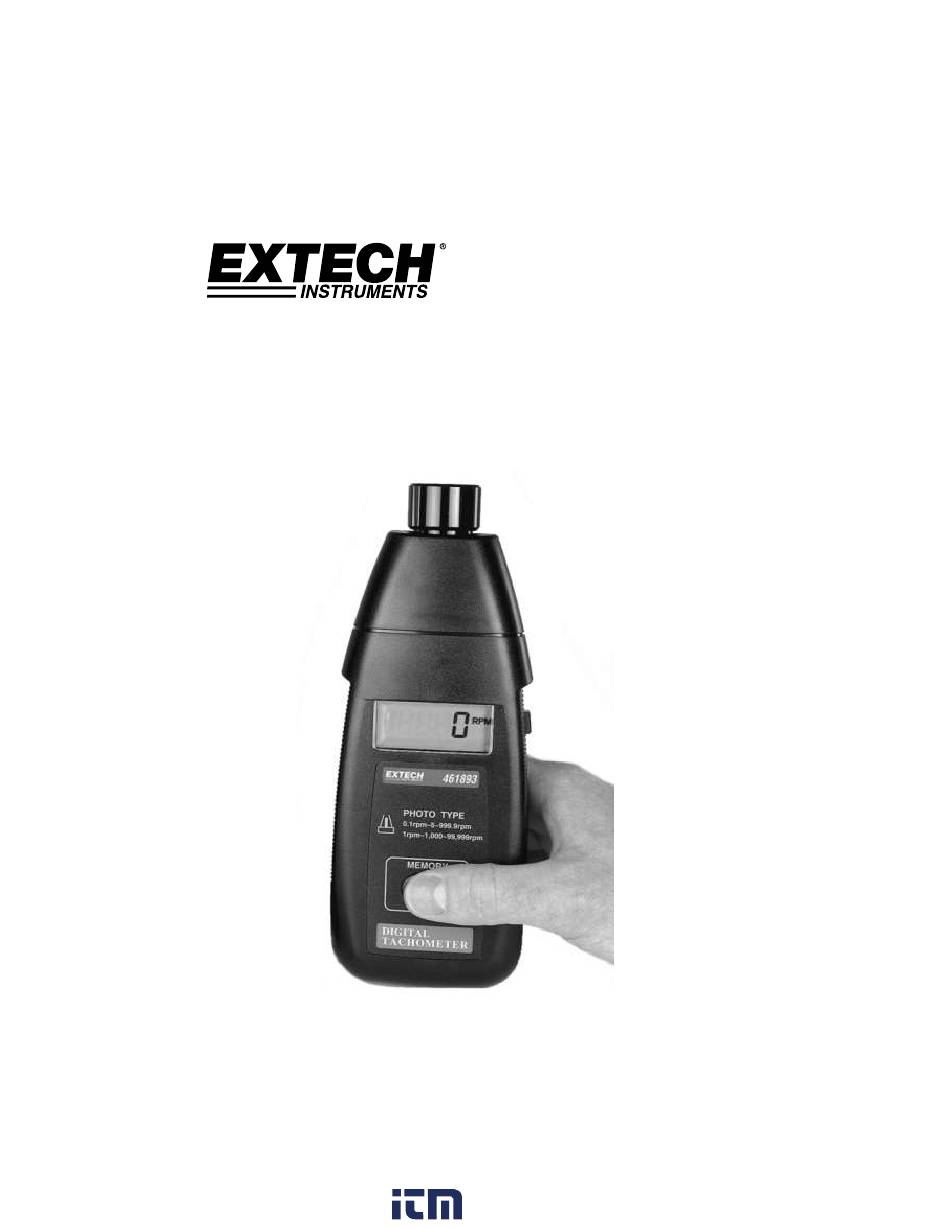

- Page 1 User's Manual Digital Photo Tachometer Model 461893 1.800.561.8187 information@itm.com www. .com...
- Page 2 Introduction Congratulations on your purchase of the Extech 461893 Photo Tachometer. This device provides non-contact measurements over a wide range (5 to 100,000 RPM). A reflective mark on the object to be measured is used as a target for the meter's integral light beam. Careful use of this meter will provide years of reliable service.
- Page 3 5. If the RPM value is < 50, apply additional pieces of reflective tape (four pieces are shown below). Divide the LCD reading by the number of reflective tapes to compute the actual RPM (Actual RPM = Reading / 4). Light source and reflection Photo Tachometer Reflective tape Rotating object 461893-EN V1.4 8/13 1.800.561.8187 information@itm.com www. .com...
- Page 4 1. Slide the rear cover off the battery compartment in the direction indicated by the arrow. 2. Replace the four 1.5V 'AA' batteries and the battery compartment cover. 3. Remove the batteries if the instrument will be stored for long periods of time. 461893-EN V1.4 8/13 1.800.561.8187 information@itm.com www.
- Page 5 Warranty FLIR Systems, Inc. warrants this Extech Instruments brand device to be free of defects in parts and workmanship for one year from date of shipment (a six month limited warranty applies to sensors and cables). If it should become necessary to return the instrument for service during or beyond the warranty period, contact the Customer Service Department for authorization.
- Page 6 Garantie FLIR Systems, Inc. garantit que cet appareil Extech Instruments est exempt de défauts matériaux et de fabrication pendant un an à partir de la date d envoi (une garantie limitée de six mois s applique aux capteurs et aux câbles). Si le renvoi de l appareil pour réparation devient nécessaire durant ou après la période de garantie, contactez le service client pour autorisation.
- Page 7 Garantía FLIR Systems, Inc., garantiza este dispositivo marca Extech Instruments para estar libre de defectos en partes o mano de obra durante un año a partir de la fecha de embarque (se aplica una garantía limitada de seis meses para cables y sensores). Si fuera necesario regresar el instrumento para servicio durante o después del periodo de garantía, llame al Departamento de Servicio a...
