Summary of Contents for Extech Instruments 461830

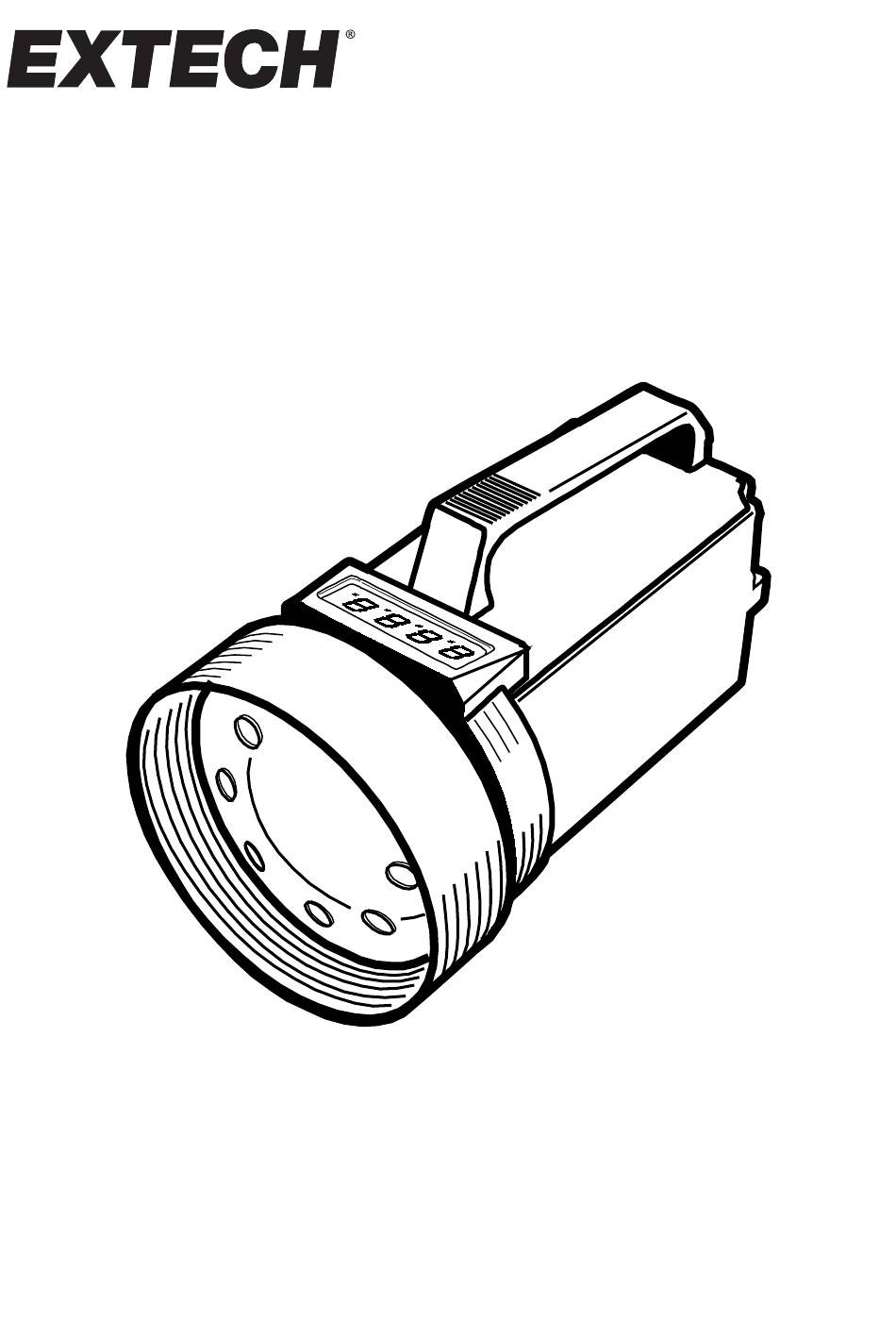

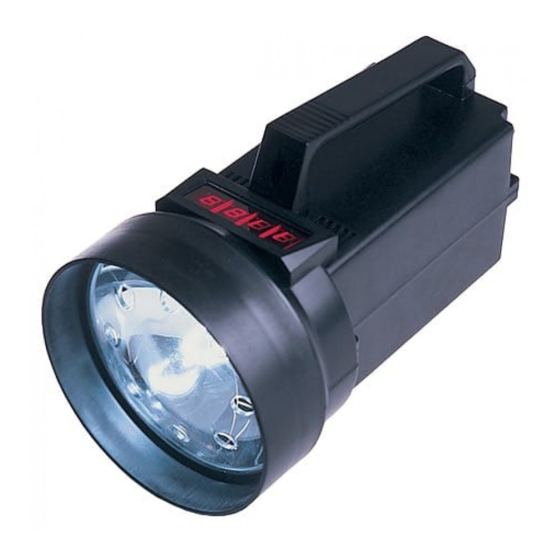

- Page 1 USER MANUAL Digital Stroboscope Tachometer Models 461830 (110 V) and 461831 (220 V)
- Page 2 Introduction Congratulations on your purchase of the Extech Digital Stroboscope Tachometer. This device measures the speed of moving parts such as gears, fans, propellers, centrifuges, and pumps. The stop-motion action of this instrument permits the visual inspection of moving parts. Careful use of this instrument will provide years of reliable service.
- Page 3 Operating temperature 32 to 122 F (0 to 50 Operating humidity < 80% RH Power supply 110 V AC (461830); 220 V AC (461831); 50/60 Hz ±10% Power consumption < 25 watts @ 115V Weight 2.0 lbs. (900 g) Dimensions 8.3 x 4.7 x 5.5 in.
- Page 4 1. Plug the supplied power cable into the instrument’s power cable jack. 2. Plug the other end of the cable to the AC power source. The 461830 requires 110 V AC and the 461831 requires 220 V AC. Do not plug the device into the incorrect power source; damage to the instrument will result.
- Page 5 Important Note on Test Durations The Xenon lamp has test time restrictions. If the specified test durations and cool-down period are not observed, damage to the instrument can result and the life of the lamp can be shortened. Range Maximum Test Duration Cool-Down Period <...
- Page 6 Two-year Warranty Teledyne FLIR warrants this Extech brand instrument to be free of defects in parts and workmanship for two years from date of shipment. To view the full warranty text please visit: https://www.flir.com/support-center/warranty/instruments/extech-product-warranty/ Calibration and Repair Services Teledyne FLIR offers calibration and repair services for the Extech brand products we sell. We offer NIST traceable calibration for most of our products.
