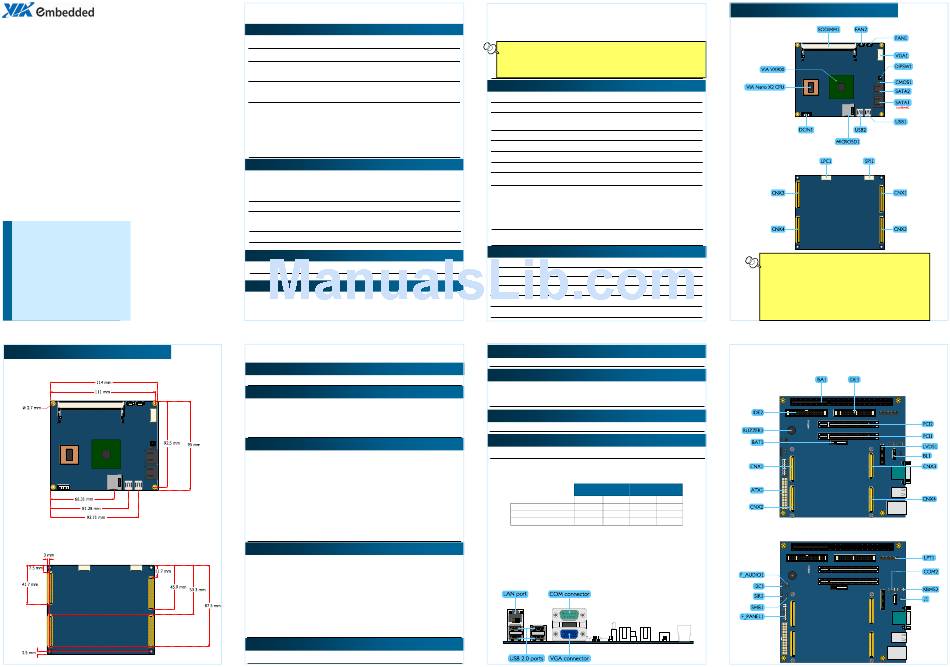

VIA Technologies ETX-8X90 Quick Manual

ETX-8X90
Computer-On-Module
and
ETXDB1
Carrier Board Reference
Quick Guide
Key Features: Key Features: Key Features: Key Features:
VIA Nano X2 1.2+ GHz processor
•
Support DDR3 SODIMM memory
•
Integrated VIA UniChrome9™ HD DX9
•
2D/3D graphics processor
Display interface in CRT, 18/24-bit
•
dual-channel LVDS panel
Support standard and mini USB 2.0 ports
•
Support micro SD card reader
•
ETX- - - - 8X90 Module Dimensions ETX ETX ETX 8X90 Module Dimensions 8X90 Module Dimensions 8X90 Module Dimensions
Top View Top View Top View Top View
Bottom View Bottom View Bottom View Bottom View
ETX- - - - 8X90 Module Specifications ETX ETX ETX 8X90 Module Specifications 8X90 Module Specifications 8X90 Module Specifications
Core Core Core Core
Processor Processor Processor Processor ▪ VIA Nano X2 1.2+ GHz NanoBGA2 (U4300)
Chipset Chipset Chipset Chipset ▪ VIA VX900 all-in one chipset
System Memory System Memory System Memory System Memory ▪ 1 x DDR3 1066/800 horizontal type SODIMM socket
▪ Support up to 4GB memory size
BIOS BIOS BIOS BIOS ▪ AMI BIOS
▪ 8Mbit SPI flash memory
Operating System Operating System Operating System Operating System ▪ Microsoft Windows 7
▪ Microsoft Windows Xpe
▪ Microsoft Windows Embedded System System 7
▪ Microsoft Windows CE 6.0
▪ Linux (Debian, Ubuntu)
▪ VXWorks 6.9
Graphics and Video Graphics and Video Graphics and Video Graphics and Video
Graphics processor Graphics processor Graphics processor Graphics processor ▪ Integrated VIA UniChrome9™ HD DX9 3D/2D
graphics with MPEG-2,WMV9, and H.264 video
decoding accelerator
Graphics memory Graphics memory Graphics memory Graphics memory ▪ UMA, up to 512 MB (BIOS setting)
CRT Interface CRT Interface ▪ 350 MHz RAMDAC
CRT Interface CRT Interface
▪ Support up to 2048 x 1536 resolution
LCD Interface LCD Interface LCD Interface LCD Interface ▪ Support dual-channel 18/24 bit LVDS panel
Ethernet Ethernet Ethernet Ethernet
Chipset Chipset Chipset Chipset ▪ Realtek RTL8139DL ethernet controller
Storage Storage Storage Storage
Micro SD card Micro SD card Micro SD card Micro SD card ▪ Support Micro SD card reader (support OS boot on
Linux Windows CE and VxWorks)
ETXDB1 Carrier Board Specifications ETXDB1 Carrier Board Specifications ETXDB1 Carrier Board Specifications ETXDB1 Carrier Board Specifications
Model Name Model Name Model Name Model Name
▪ ETXDB1
Rear I/O Connector Rear I/O Connector Rear I/O Connector Rear I/O Connector
▪ 1 x VGA connector
▪ 1 x COM connector
▪ 4 x USB 2.0 ports
▪ 1 x RJ-45 LAN port (10/100 Mbit)
Onboard Connector and Slot Onboard Connector and Slot Onboard Connector and Slot Onboard Connector and Slot
▪ 4 x ETX connectors
▪ 1 x ISA slot (compatible with ISA ETX 3.02)
▪ 2 x IDE connectors
▪ 2 x PCI slots (compatible with PCI 2.3, 32 bit, 33MHz)
▪ 1 x LVDS connector (compatible with TIA/ELA-644)
- - - - Pixel clock up to 85 MHz
- - - - Support panel resolution up to WXGA 1366 x 768
- - - - Supports one or two-channel 18-bit/ 24-bit LVDS panel
▪ 1 x Back light connector
▪ 1 x ATX power connector
▪ 1 x RTC battery socket
Onboard Pin Header Onboard Pin Header Onboard Pin Header Onboard Pin Header
▪ 1 x LPT pin header
▪ 1 x Keyboard and Mouse pin header
▪ 1 x COM pin header
▪ 1 x Front Panel pin header (for HDD LED, Power LED, Switch
and Speaker
▪ 1 x Front Audio pin header
▪ 1 x SMBus pin header
▪ 1 x I²C pin header
▪ 1 x SIR (infrared) pin header
Onboard Jumper Onboard Jumper Onboard Jumper Onboard Jumper
▪ 1 x Backlight and Panel power select jumper
Hard disk Hard disk Hard disk Hard disk ▪ Support two SATA 3.0 Gbps connectors (SATA1 and
SATA2 on module)
▪ Support two IDE connectors (IDE1 and IDE2 on carrier
board)
Note: Note: Note: Note:
The ETX-8X90 only supports two channel of storage. The SATA2 + IDE1 configuration is
the default setting. The other configurations such as SATA1 + SATA2 or IDE1 + IDE2 are
manufacturing options. For more details, please contact your local sales representative.
Input/Output Input/Output Input/Output Input/Output
Audio Audio ▪ VT2021 Audio Codec
Audio Audio
LAN LAN LAN LAN ▪ 10/100 Mbit Ethernet (RTL8139DL)
USB USB USB USB ▪ Support up to four USB 2.0 ports (on carrier board)
▪ Support two mini USB 2.0 ports (on module)
LPT LPT LPT LPT ▪ Support one LPT port
COM COM COM COM ▪ Support two UARTs port
Super IO Super IO Super IO Super IO ▪ Fintek F71869ED
IrDA IrDA IrDA IrDA ▪ Support SIR
Keyboard/Mouse ▪ Support PS/2 keyboard and mouse Keyboard/Mouse Keyboard/Mouse Keyboard/Mouse
Expansion Buses Expansion Buses Expansion Buses Expansion Buses ▪ Support SMBus interface
▪ Support I²C bus
▪ Support PCI 2.3, 32 bit/33MHz, 2 slots
▪ Support ISA bus (ETX 3.0 compliant) (DMA transfer not
supported)
Switch and Jumper Switch and Jumper Switch and Jumper Switch and Jumper ▪ DIP switch (HDD selector switch)
▪ Clear CMOS jumper
Mechanical and Environment Mechanical and Environment Mechanical and Environment Mechanical and Environment
Compliance Compliance Compliance Compliance ▪ CE, FCC and RoHS
ETX Compliance ETX Compliance ETX Compliance ETX Compliance ▪ ETX 3.02, Compact Module
Dimension Dimension Dimension Dimension ▪ 95 mm x 114 mm
Storage Temperature Storage Temperature Storage Temperature Storage Temperature ▪ -40°C to 70°C
Operating Temperature Operating Temperature ▪ 0°C up to 60°C
Operating Temperature Operating Temperature
Operating Humidity Operating Humidity Operating Humidity Operating Humidity ▪ 0% to 95% (relative humidity; non-condensing)
Onboard Speaker Onboard Speaker Onboard Speaker Onboard Speaker
▪ 1 x Buzzer speaker
Form Factor and Dimension Form Factor and Dimension Form Factor and Dimension Form Factor and Dimension
▪ Mini-ITX
▪ 6 layers
▪ 17 cm x 17 cm
Operating Temperature Operating Temperature Operating Temperature Operating Temperature
▪ 0°C up to 60°C
Operating and Storage Humidity Operating and Storage Humidity Operating and Storage Humidity Operating and Storage Humidity
▪ 95% relative humidity
Board Storage Channel Configuration Board Storage Channel Configuration Board Storage Channel Configuration Board Storage Channel Configuration
ETXDB1 ETXDB1 ETXDB1 ETXDB1 ETX ETX- - - - 8X90 ETX ETX 8X90 8X90 8X90
(Carrier Board) (Carrier Board) (Computer (Computer- - - - On On- - - - Module) Module)
(Carrier Board) (Carrier Board) (Computer (Computer On On Module) Module)
IDE1 IDE1 IDE1 IDE1 IDE2 IDE2 IDE2 IDE2 SATA1 SATA1 SATA1 SATA1 SATA2 SATA2 SATA2 SATA2
Default settings Enable Disable Disable Enable
Manufacturing option 1 Disable Disable Enable Enable
Manufacturing option 2 Enable Enable Disable Disable
ETXDB1 Carrier board External I/O
Connectors
Back Panel I/O Back Panel I/O
Back Panel I/O Back Panel I/O
ETX- - - - 8X90 Module Layout Diagram ETX 8X90 Module Layout Diagram
ETX ETX 8X90 Module Layout Diagram 8X90 Module Layout Diagram
Top View Top View Top View Top View
Bottom View Bottom View
Bottom View Bottom View
Notes: Notes: Notes: Notes:
1. As default, SATA2 connector is enabled and SATA1 connector is
disabled. The SATA1 connector is a manufacturing option.
2. The SATA connector pin 7 default setting is GND. The +5V supports
is a factory option
3. DCIN1, VGA1, LPC1 and SPI1 connectors are reserved for debugging
purposes only, and not for production used.
ETXDB1 Carrier Board Layout Diagram
Connectors and Slots Connectors and Slots Connectors and Slots Connectors and Slots
Pin headers and Jumpers Pin headers and Jumpers Pin headers and Jumpers Pin headers and Jumpers
