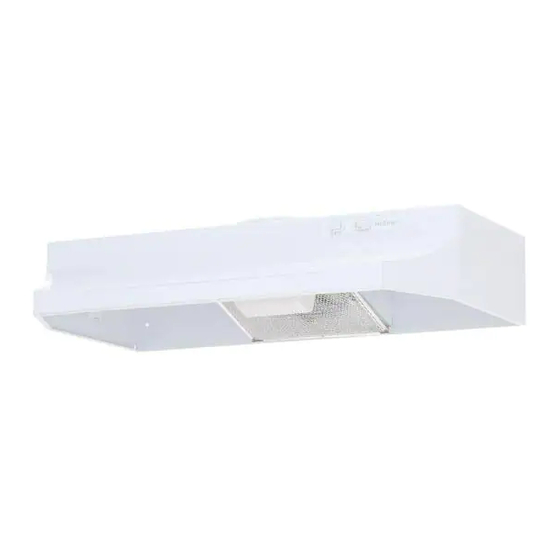

NuTone RL6100C Installation Instructions

INSTALLATION INSTRUCTIONS
RL6100C, RL6100F, BP, CM & HFRM SERIES RANGE HOODS
IMPORTANT SAFETY INSTRUCTIONS
WARNING - TO REDUCE THE RISK OF FIRE,
ELECTRIC SHOCK, OR INJURY TO PERSONS,
OBSERVE THE FOLLOWING:
• Use this unit only in the manner intended by the manufacturer. If you
have any questions, contact the manufacturer.
• Before servicing or cleaning unit, switch power off at service panel
and lock service panel to prevent power from being switched on
accidentally.
CAUTION :
For general ventilating only. Do not use to exhaust
hazardous or explosive materials and vapors.
WARNING - TO REDUCE THE RISK OF A RANGE
TOP GREASE FIRE:
• Never leave surface units unattended at high settings. Boilovers
cause smoking and greasy spillovers that may ignite. Heat oils
slowly on low or medium setting.
• Always turn hood ON when cooking at high heat or when cooking
flaming foods.
• Clean ventilating fans frequently. Grease should not be allowed
to accumulate on fan or filter.
• Use proper pan size. Always use cookware appropriate for the
size of the surface element.
WARNING - TO REDUCE THE RISK OF INJURY TO
PERSONS IN THE EVENT OF A RANGE TOP
GREASE FIRE, OBSERVE THE FOLLOWING* :
• SMOTHER FLAMES with a close-fitting lid, cookie sheet, or metal
tray, the turn off the burner. BE CAREFUL TO PREVENT BURNS. If
the flames do not go out immediately, EVACUATE AND CALL THE
FIRE DEPARTMENT.
• NEVER PICK UP A FLAMING PAN - you may be burned.
• DO NOT USE WATER, including wet dishcloths or towels - a violent
steam explosion will result.
• Use an extinguisher ONLY if:
1. You know you have a Class ABC extinguisher, and you already
know how to operate it.
2. The fire is small and contained in the area where it started.
3. The fire department is being called.
4. You can fight the fire with your back to an exit.
*Based on "Kitchen Firesafety Tips" published by NFPA.
1. GENERAL INFORMATION
These hoods can be connected to ductwork to discharge through the top
or the back of the hood to the outside. BP/RL6100F/HFRM series can
be installed without ducts to return filtered air back into the room. For
a ductless installation a separate filter is required.
Order conversion kit FKM65.
PLANNING
• Recommended mounting height is 24" to 30" above the cooking surface.
• The hood shall be mounted to the bottom of a standard wall cabinet. If the
hood must be mounted directly to a wall, secure the hood to wall studs.
• All wiring must be properly grounded. Connection should be made to a
110-120vAC lighting circuit (15 Amp) in the circuit breaker or fuse box.
READ & SAVE THESE INTRUCTIONS
INSTALLATION INSTRUCTIONS
WARNING - TO REDUCE THE RISK OF FIRE,
ELECTRIC SHOCK, OR INJURY TO PERSONS,
OBSERVE THE FOLLOWING:
• Installation work and electrical wiring must be done by
qualified person(s) in accordance with all applicable codes and
standards - including fire-rated construction.
• Sufficient air is needed for proper combustion and exhausting
of gases through the flue (chimney) of fuel burning equipment
to prevent back drafting.
manufacturer's guidelines and safety standards such as those
published by the National Fire Protection Association (NFPA),
and the American Society for Heating, Refrigeration and Air
Conditioning Engineers (ASHRAE), and local code authorities.
• When cutting or drilling into wall or ceiling, do not damage
electrical wiring and other hidden utilities.
• Ducted fans must always be vented to the outdoors.
WARNING:
To reduce the risk of fire, use only metal ductwork.
WARNING:
To reduce the risk of fire or electrical shock, this range
hood should not be used with an additional speed
control device.
WARNING:
To reduce the risk of shock, disconnect power before
servicing.
CAUTION:
To reduce the risk of fire and to properly exhaust air,
be sure to duct air outside. Do not vent exhaust air
into spaces within walls or ceilings or into attics,
crawl spaces or garages.
A. IF YOU ARE DUCTING TO THE OUTSIDE...
Begin planning the duct work by deciding where the duct
will run between the range hood and the outside. For the
best performance, use the shortest possible duct run and a
minimum number of elbows. Use 3-1/4" x 10" (83 mm x 254 mm)
rectangular duct.
B. IF YOU ARE USING A VENTLESS HOOD...
Disregard instructions for duct cutouts. Discard damper
section - it will not be used.
Follow the heating equipment
30040586 Rev 3
