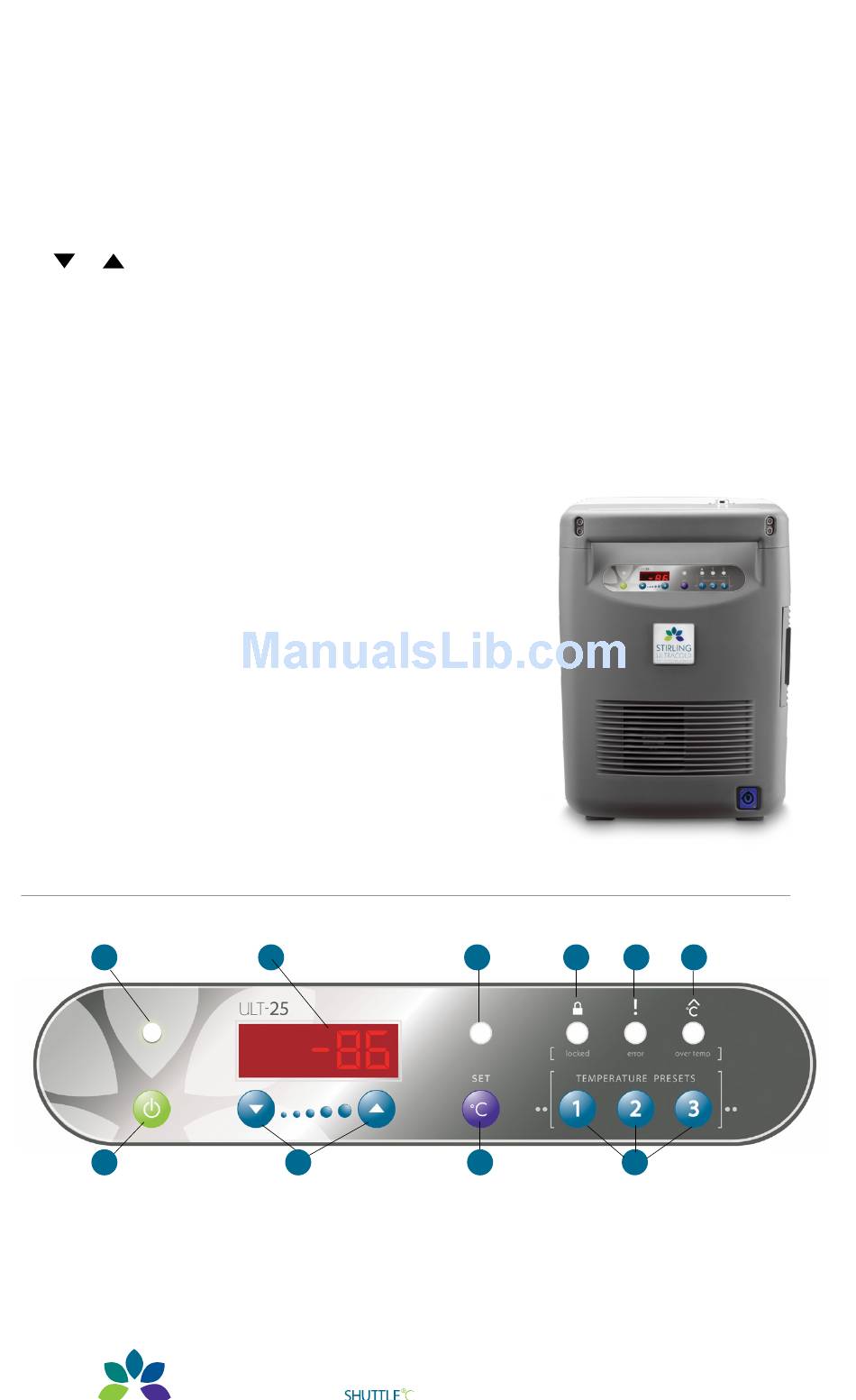

3.2 – Pictorial Tour, Control Panel
A. On/Off Indicator LED
B. On/Off button
— Turns freezer on and off
C. LCD display
— Alpha/numerical display; default display is chamber temperature.
D.
/ buttons
— Used to adjust Setpoint Temperature (when the display shows S ##).
E. Set Temp LED
— Temperature can be adjusted when lit.
F. Set Temp button
— This must be pressed to adjust the Set Temperature.
G. Locked LED
— Indicates when the control panel is locked.
H. Error LED
— Indicates when there is an electrical, mechanical
or similar error condition.
I. Over Temp LED
— Indicates when the chamber is over/under
the setpoint.
The audible beeper can be set to delay warning.
J. Temperature Preset buttons
A
B
12 of 28
C
D
Operating Manual:
E G
F
ULT25 NE
H I
J
