3 Operations

Charging Status Indicators

LED Indicator
*Note: In the instance the "Red Steady" or "Red Flashing" Fault light remains, it is recommended that you:
•
Unplug the charging Connector from your EV
•
Turn off the power to the Charging Station by switching the upstream circuit breaker to the "OFF" position
•
With the circuit breaker in the "OFF" position, wait 1-2 minutes and then switch the upstream circuit breaker
back to the "ON" position
•
Confirm the Fault light is no longer present. If the Fault light remains, please contact EVoCharge.
EVoInnovate EVSE User Manual & Installation Guide
www.evocharge.com
3-1

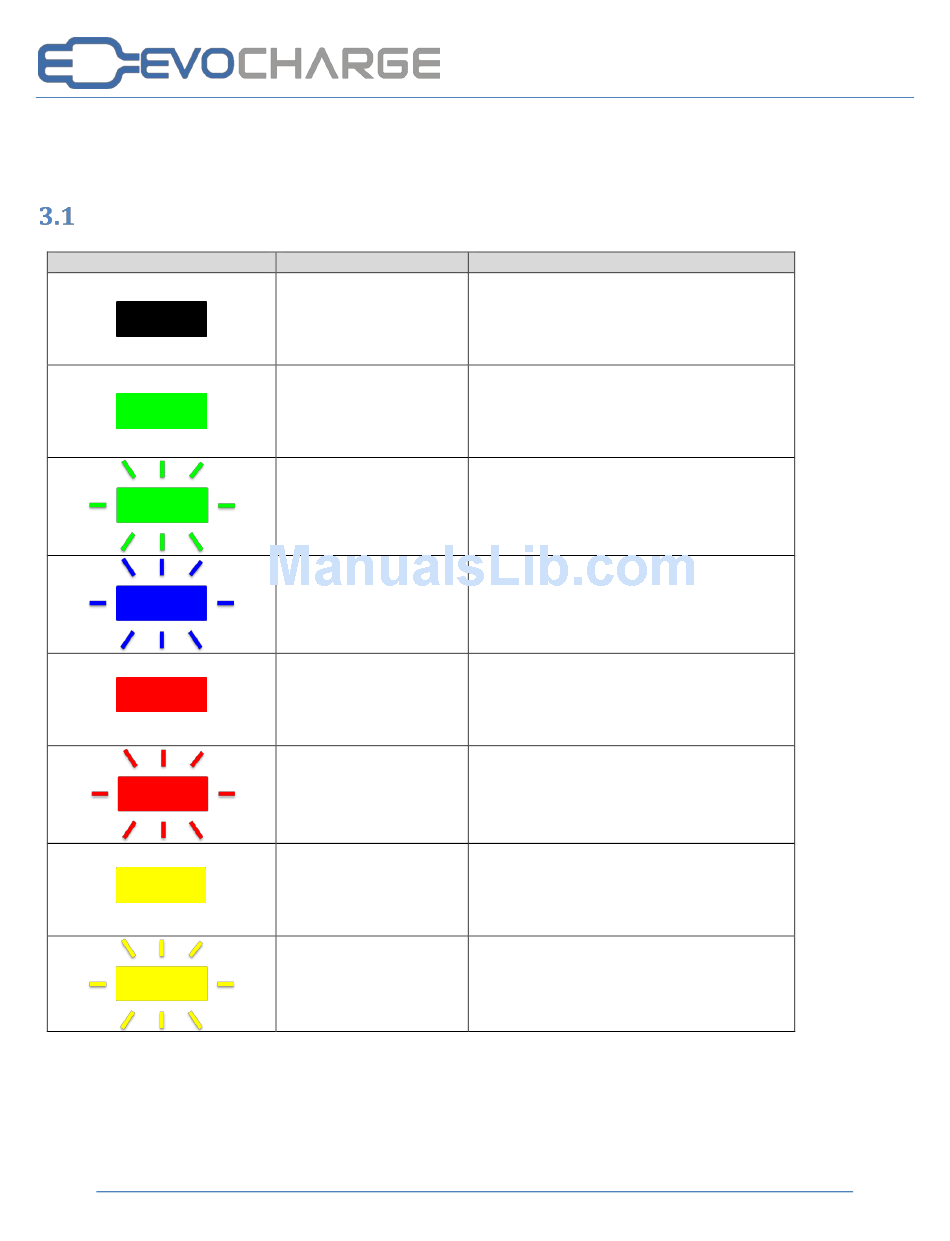

Table Charging status indicators
Description
Not illuminated
Green Steady
Green Flashing
Blue Flashing
Red Steady
Red Flashing
Yellow Steady
Yellow Flashing
Definition
Power Off
Ready
Flashing green (Fast): Authorized, waiting for
EV to initiate charge event.
Flashing green (Slow): Suspend (Occupying)
Flashing blue (Slow): Charging
Unrecoverable Fault
Recoverable Fault
Out of Service
Booting / Firmware Upgrade in process
