Summary of Contents for EVoCharge 30A EVoCharge EVSE EV072-300-001A

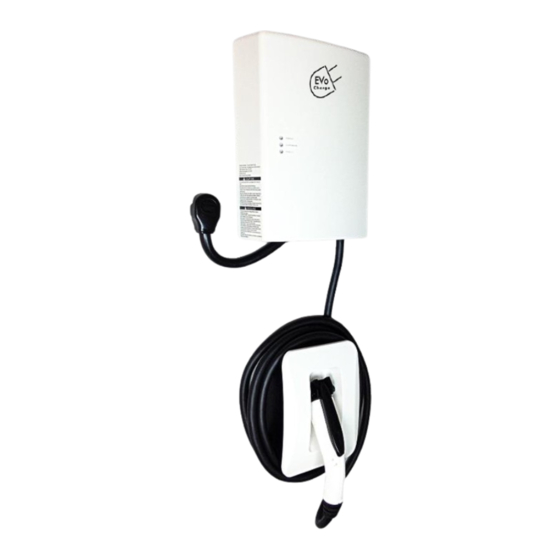

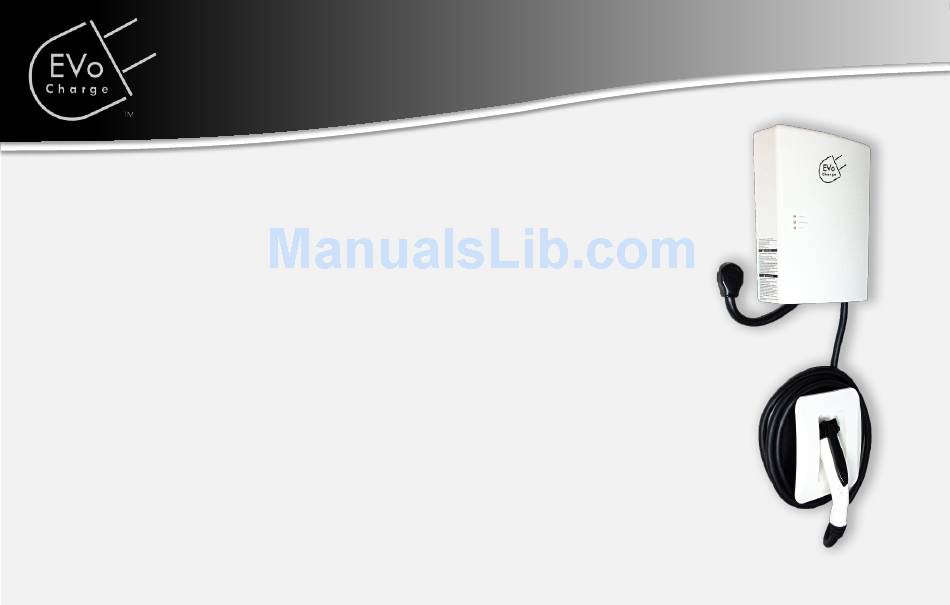

- Page 1 Electric Vehicle Charging Station INSTALLATION GUIDE AND USER MANUAL Model: 30A EVoCharge EVSE Model Number: EV072-300-001A Product Safety Certification: UL and cUL Listed Description: SAE J1772 AC Level 2, 30A (7.2 kW) Continuous Rated EV Charger v2.1...
- Page 2 ©2012-2015 EVoCharge - All Rights Reserved All information in this document is subject to copyright and other intellectual property rights of EVoCharge. This material may not be modified, reproduced or copied, in whole or in part, without the prior written permission of EVoCharge. EVoCharge and EVoReel are trademarks of EVoCharge.
-
Page 3: Table Of Contents
MANUAL CONTENT SAFETY INFORMATION…………………………………………4-5 IMPORTANT REFERENCE INFORMATION………………6 SPECIFICATIONS…………………………………………………...7 FEATURES…………………………………………………………….8 INSTALLATION PLANNING & SERVICE WIRING……..9 INSTALLATION………………………………………………………10-22 OPERATION………………………………………..………………..23-24... -
Page 4: Manual Content Safety Information
• Do not attempt to open, disassemble, repair, tamper with, or modify the Charging Station. The Charging Station is not user serviceable. Contact EVoCharge for any repairs. • Do not use the Charging Station when either you, the vehicle, or the Charging Station is exposed to severe rain, snow, electrical storm or other severe weather. - Page 5 SAVE THESE SAFETY INSTRUCTIONS This document contains important instructions and warnings that must be followed when installing and maintaining the Charging Station Caution • Incorrect installation and testing of the Charging Station could potentially damage either the vehicle’s Battery and/or the Charging Station itself.
-
Page 6: Important Reference Information
Charging Station. The Charging Station is not user serviceable. Contact EVoCharge for any repairs • Periodic cleaning may be required, depending on local conditions. To avoid damaging the finish of the Charging Station, only use an automotive grade soft cleaning cloth and a mild soap and water mixture to remove accumulation of dirt and dust. -
Page 7: Specifications
SPECIFICATIONS AC Level 2 EVSE Level Max Current Output 208-240VAC Voltage Rating Max Power Output 7.20 kW Vehicle Connector SAE J1772 Frequency 50/60 Hz Operating Temperature -30⁰C to 50⁰C (-22⁰F to 122⁰F) Storage/Transit Temperature -40⁰C to 60⁰C (-40⁰F to 140⁰F) Cord Length 5.49m (18.0 ft.) Installation... -
Page 8: Features
Experience - Simply Plug-in the Connector to Your EV to begin Charging • Indoor/Outdoor Rated • EVoCharge Charging Stations are rated for both indoor and outdoor charging and comply with NEMA 3R standards • Fast Charge Times and Compatible with all EVs •... -
Page 9: Installation Planning & Service Wiring
INSTALLATION PLANNING & SERVICE WIRING • Prior to mounting, determine location of an acceptable mounting support. The Wall or Ceiling mount unit must be anchored into a mounting support such as a 2” x 4” stud or a solid concrete wall, using mounting hardware that is appropriate for the surface on which you are mounting. -
Page 10: Installation
INSTALLATION STEP 1 – Verify Received Content -Continued on next page-... - Page 11 INSTALLATION STEP 1– Verify Received Content...
- Page 12 INSTALLATION STEP 2 – Mounting the Charging Unit...
- Page 13 INSTALLATION STEP 2 – Mounting the Charging Unit...
- Page 14 INSTALLATION STEP 2 – Mounting the Charging Unit...
- Page 15 INSTALLATION STEP 2 – Mounting the Charging Unit...
- Page 16 INSTALLATION STEP 2 – Mounting the Charging Unit...
- Page 17 INSTALLATION STEP 3 – Connecting Charging Unit to NEMA 6-50 Outlet...
- Page 18 (OPTIONAL) INSTALLATION STEP 3 – Hardwire Connection...
- Page 19 INSTALLATION STEP 4 – Mounting the Holster...
- Page 20 INSTALLATION STEP 4 – Mounting the Holster...
- Page 21 INSTALLATION STEP 4 – Mounting the Holster...
-
Page 22: Installation
INSTALLATION STEP 4 – Mounting The Holster... -
Page 23: Operation
OPERATION – Enable Charging IMPORTANT: Once the charging unit is connected to supply-power, turn- on the charging unit by placing the toggle switch towards the front of the charging unit. The toggle switch is located at the bottom of the charging unit. - Page 24 The ON position is with the toggle switch positioned toward the front of the charging unit. Note: Contact a qualified electrical personnel or EVoCharge if resetting the charging unit does not clear the Fault LED indicator.
- Page 25 EVoReel Electric Vehicle Cable Management sales@evocharge.com (800) 930-9450 For the latest user manual version, please visit www.evocharge.com/download.html...
