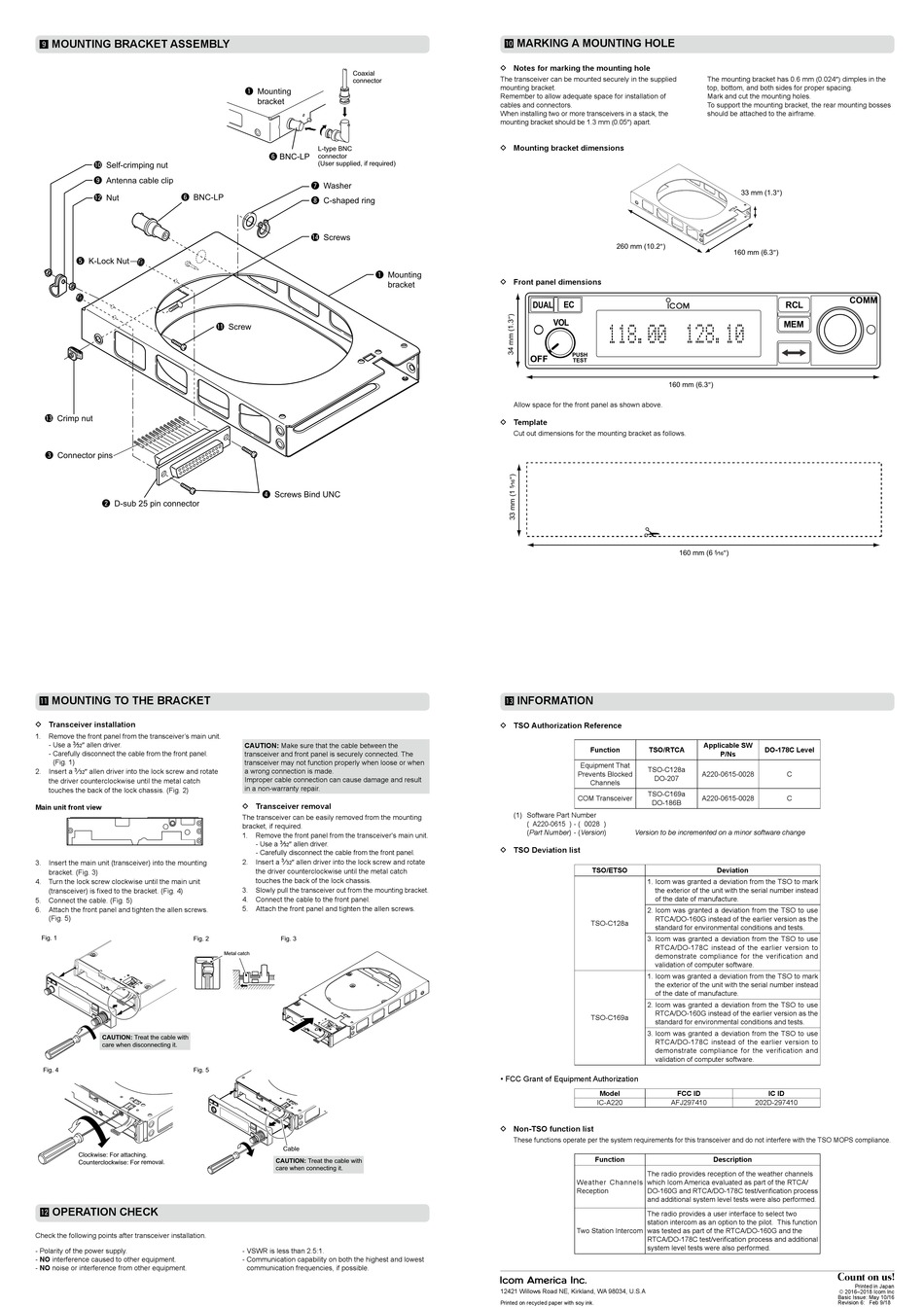

Icom IC-A220 Installation Manual page 2

MOUNTING BRACKET ASSEMBLY
.
!0 Self-crimping nut
o Antenna cable clip
!2 Nut y BNC-LP
t K-Lock Nut
!3 Crimp nut
e Connector pins
w D-sub 25 pin connector
MOUNTING TO THE BRACKET
⁄1
D Transceiver installation
1. Remove the front panel from the transceiver's main unit.
- Use a 3 ⁄ " allen driver.
32
- Carefully disconnect the cable from the front panel.
(Fig. 1)
2. Insert a 3 ⁄ " allen driver into the lock screw and rotate
32
the driver counterclockwise until the metal catch
touches the back of the lock chassis. (Fig. 2)
Main unit front view
Main unit front view
3. Insert the main unit (transceiver) into the mounting
bracket. (Fig. 3)
4. Turn the lock screw clockwise until the main unit
(transceiver) is fixed to the bracket. (Fig. 4)
5. Connect the cable. (Fig. 5)
6. Attach the front panel and tighten the allen screws.
(Fig. 5)
Fig. 1 Fig. 2
CAUTION: Treat the cable with
care when disconnecting it.
Fig. 4
OPERATION CHECK
⁄2
Check the following points after transceiver installation.
- Polarity of the power supply.
- NO interference caused to other equipment.
- NO noise or interference from other equipment.
Coaxial
connector
q Mounting
bracket
L-type BNC
y BNC-LP
connector
(User supplied, if required)
u Washer
i C-shaped ring
!4 Screws
q Mounting
bracket
!1 Screw
r Screws Bind UNC
CAUTION: Make sure that the cable between the
transceiver and front panel is securely connected. The
transceiver may not function properly when loose or when
a wrong connection is made.
Improper cable connection can cause damage and result
in a non-warranty repair.
D Transceiver removal
The transceiver can be easily removed from the mounting
bracket, if required.
1. Remove the front panel from the transceiver's main unit.
- Use a 3 ⁄ " allen driver.
32
- Carefully disconnect the cable from the front panel.
2. Insert a 3 ⁄ " allen driver into the lock screw and rotate
32
the driver counterclockwise until the metal catch
touches the back of the lock chassis.
3. Slowly pull the transceiver out from the mounting bracket.
4. Connect the cable to the front panel.
5. Attach the front panel and tighten the allen screws.
Fig. 3
Metal catch
Cable
CAUTION: Treat the cable with
care when connecting it.
- VSWR is less than 2.5:1.
- Communication capability on both the highest and lowest
communication frequencies, if possible.
MARKING A MOUNTING HOLE
⁄0
D Notes for marking the mounting hole
The transceiver can be mounted securely in the supplied
mounting bracket.
Remember to allow adequate space for installation of
cables and connectors.
When installing two or more transceivers in a stack, the
mounting bracket should be 1.3 mm ( 0.05" ) apart.
D Mounting bracket dimensions
260 mm (10.2")
D Front panel dimensions
DUAL EC
VOL
118.00 128.10
PUSH
OFF
TEST
160 mm (6.3")
Allow space for the front panel as shown above.
D Template
Cut out dimensions for the mounting bracket as follows.
INFORMATION
⁄3
D TSO Authorization Reference
Function TSO/RTCA
Equipment That
TSO-C128a
Prevents Blocked
DO-207
Channels
TSO-C169a
COM Transceiver
DO-186B
(1) Software Part Number
( A220-0615 ) - ( 0028 )
(Part Number) - (Version) Version to be incremented on a minor software change
D TSO Deviation list
TSO/ETSO
1. Icom was granted a deviation from the TSO to mark
the exterior of the unit with the serial number instead
of the date of manufacture.
2. Icom was granted a deviation from the TSO to use
RTCA/DO-160G instead of the earlier version as the
TSO-C128a
standard for environmental conditions and tests.
3. Icom was granted a deviation from the TSO to use
RTCA/DO-178C instead of the earlier version to
demonstrate compliance for the verification and
validation of computer software.
1. Icom was granted a deviation from the TSO to mark
the exterior of the unit with the serial number instead
of the date of manufacture.
2. Icom was granted a deviation from the TSO to use
RTCA/DO-160G instead of the earlier version as the
TSO-C169a
standard for environmental conditions and tests.
3. Icom was granted a deviation from the TSO to use
RTCA/DO-178C instead of the earlier version to
demonstrate compliance for the verification and
validation of computer software.
• FCC Grant of Equipment Authorization
Model
IC-A220 AFJ297410
D Non-TSO function list
These functions operate per the system requirements for this transceiver and do not interfere with the TSO MOPS compliance.
Function
The radio provides reception of the weather channels
Weather Channels which Icom America evaluated as part of the RTCA/
Reception DO-160G and RTCA/DO-178C test/verification process
and additional system level tests were also performed.
The radio provides a user interface to select two
station intercom as an option to the pilot. This function
Two Station Intercom was tested as part of the RTCA/DO-160G and the
RTCA/DO-178C test/verification process and additional
system level tests were also performed.
12421 Willows Road NE, Kirkland, WA 98034, U.S.A
Printed on recycled paper with soy ink.
The mounting bracket has 0.6 mm 0.024" dimples in the
( )
top, bottom, and both sides for proper spacing.
Mark and cut the mounting holes.
To support the mounting bracket, the rear mounting bosses
should be attached to the airframe.
33 mm (1.3")
160 mm (6.3")
COMM
RCL
MEM
160 mm (6 ")
5 ⁄
16
Applicable SW
DO-178C Level
P/Ns
A220-0615-0028 C
A220-0615-0028 C
Deviation
FCC ID IC ID
202D-297410
Description
© 2016–2018 Icom Inc
Basic Issue: May 10/16
Revision 6: Feb 9/18
Printed in Japan
