Dynojet Power Commander V Installation Instructions Manual page 3

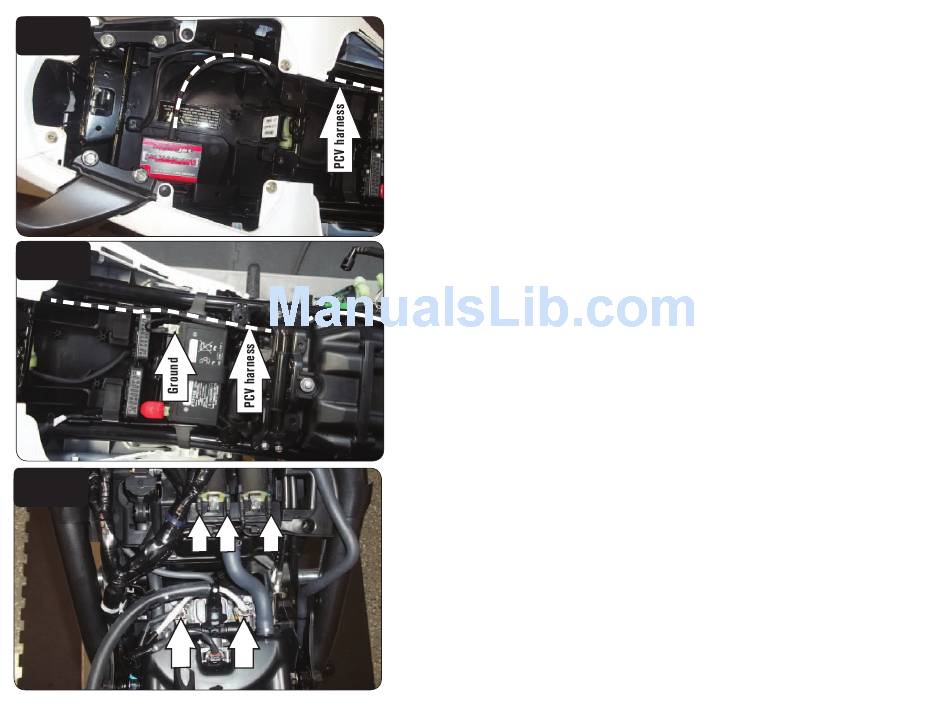

FIG.A
FIG.B
FIG.C
16-067 www.powercommander.com
1 Remove the main seat, passenger seat and both side panels.
2 Remove the right hand fairing.
3 Prop the fuel tank up.
4 Lay the PCV in the tail section temporarily and route the harness down the left
side of the tail section (Fig. A).
5 Attach the ground wire from the PCV to the negative terminal of the bike's
battery (Fig. B).
6 Route the PCV harness to the inside of the fuel tank bracket.
7 Unplug the stock wiring harness from each fuel injector (Fig. C).
8 Unplug the stock wiring harness from the ignition coils (Fig. C).
2016-2017 Honda CB500/CBR500R - PCV F/I - 3
