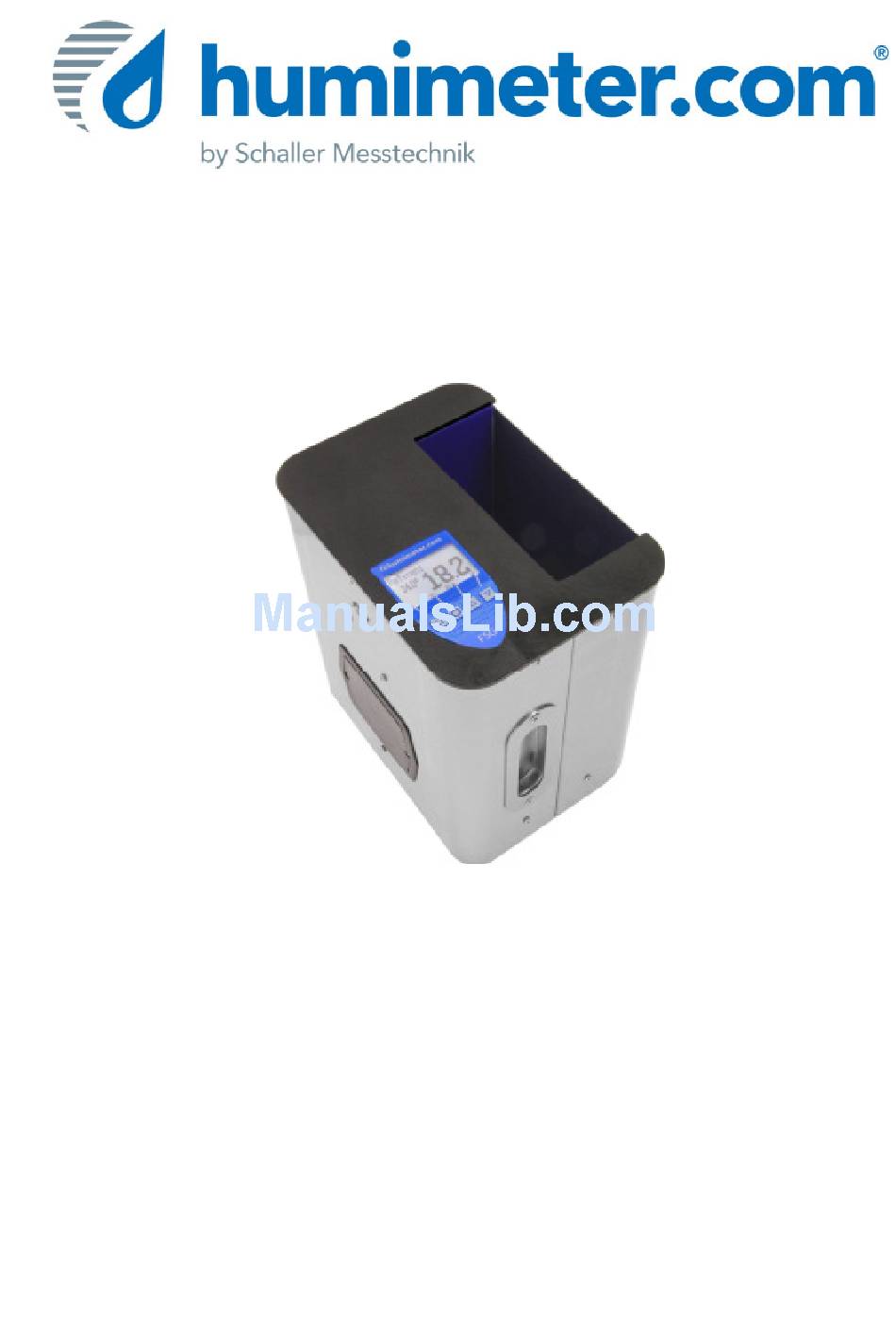

- Page 1 User manual Moisture meter for a quick determination of water content of special products humimeter FSG Version 1.1_en © Schaller GmbH 2016...
- Page 2 Design of the device measuring chamber water content calibration Temperatur curve temperature USB interface (optional) Power button batteries slot page 2 version 1.1_en...
-
Page 3: Measuring Procedure
Measuring procedure 1. Make sure that the measuring chamber is completely empty. It is important that no material is left in the measuring chamber when you turn on the device. 2. Switch on the instrument by pressing the power button ( ) for 3 sec. - Page 4 8. The display shows the measuring result. If the measuring value is blinking, the valid measuring range been exceeded (for limits see list on page 5). In this case the accuracy decreases. 9. To save the results in the store menu press the button).
-
Page 5: Calibration Curves
Calibration curves filling measuring calibration curve material quantity range 450g spiral nood spiral noodles 450g 5 to 15% 400g pean.w.shel peanuts with shell 400g 2 to 11% 1000g pean.peel peanuts peeled, with skin 1000g 2 to 10% 1000g pean.roast peanuts roasted 1000g 2 to 10% 550g waln.w.shel... - Page 6 Determination of the material reference moisture The humimeter FSG determines the water content, which means that it calculates the moisture referred to the total mass: − × : Mass of the sample before drying : Mass of the dried sample...
-
Page 7: Menu Level Overview
Keypad symbols Menu level overview Measuring window: Rolling Menu Type selection menu Power ON / OFF Switch upper Switch lower Next calibration curve Save Previous calibration curve Hold Power off (3 sec.) Watch saved data Add suppliers´data Store menu Menu: Watch last saved data (logs) Enter Save new value (log) - Page 8 Transfer saved data to the PC (Only possible with humimeter USB interface module) To send your saved logs to the PC, connect the humimeter device to your PC using the USB cable that was delivered with your device. Carefully loose the protection cap on your humimeter and plug in the USB mini B connector.
- Page 9 Print saved data (only with optional USB interface) To print your saved data, connect the device to the printer using the printer cable that was delivered with your device. Carefully loose the protection cap on the humimeter. At first plug in this side of the connector having the plastic casing closer to the end at the humimeter.
- Page 10 Each device includes a serial number and the guarantee stamp. If those are broken, no claims for guarantee can be made. In case of a faulty device, please contact Schaller GmbH (www.humimeter.com) or our dealer. Operation and handling...
-
Page 11: Technical Data
226 x 165 x 240 mm Weight 3.0 kg (with batteries) Degree of protection IP 40 Scope of supply humimeter FSG digital scale 2200g plastic bucket 2.5 litres 4 pcs. 1.5 Volt AA Alkaline batteries USB data interface module with... -
Page 12: Important! Please Read
!IMPORTANT! Please read Most common reasons for misreadings • Product temperature out of application range Material below 0° C resp. above +50° C (32 to 122 °F) may cause faulty measurements. The storage of cold material in a warm storage area usually creates condensed water, which may lead to major measuring errors.
