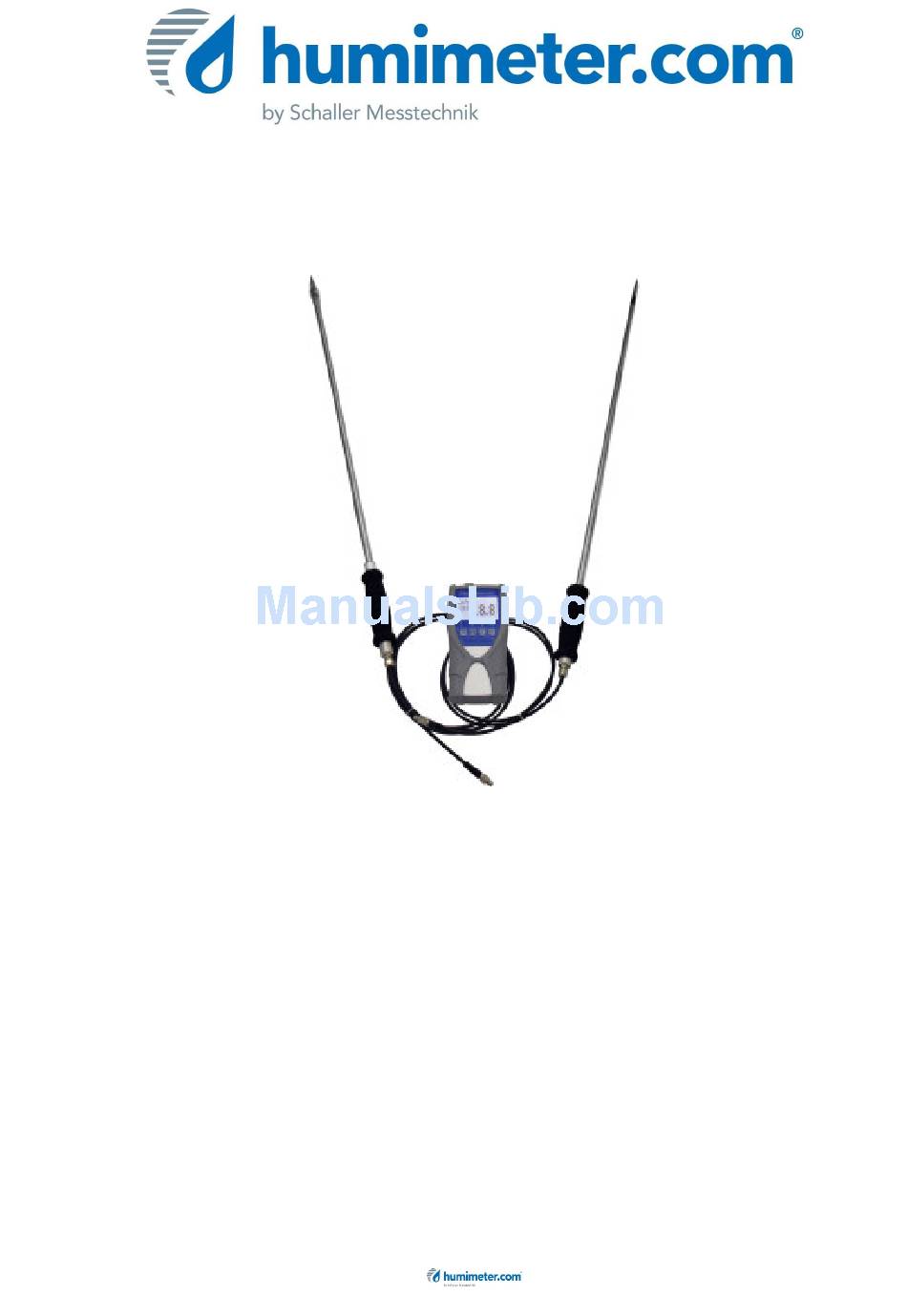

- Page 1 User manual Universal moisture meter for recycling-materials humimeter RM1 Version 1.2_en © Schaller GmbH 2014...
- Page 2 Page 2 Page 1.2_en...
- Page 3 Design RM1 recycling-material probe (art. no. 12518) Measuring head Insertion probe Handle Plug Sensor cable Version 1.2_en Page 3...
- Page 4 1. For a correct measurement please ensure that the device has the same temperature than the recycling material (+/-3°C). For that reason, let your humimeter RM1 adjust to the surrounding temperature of the material for at least half an hour before measuring.
- Page 5 Customer calibration made by Schaller GmbH Test block ! Only for testing the RM1 with the test block ! Recycling spez 1 and Recycling spez 2 include the possibility of a thin water film on the plastic pieces, if the plastic content is really high.
- Page 6 Determination of the reference water content The humimeter RM1 determines the water content, which means that it calculates the moisture referred to the total mass (EN ISO 287): Mass of the sample before drying −...
- Page 7 Menu level overview Keypad symbols Measuring window: Rolling Menu Store menu Power ON / OFF Watch the saved data (logs) Switch upper Save new value Power off (3 sec.) Switch lower Save Type selection menu Hold Next calibration curve Watch the Previous calibration curve Power off (3 sec.) saved data...
- Page 8 1.) At first remove the rubber protective housing. For that, hold the rubber housing at the upper side and pull it over. If your RM1 is provided with an optional USB port, you have to remove the protection cap before.
- Page 9 Running the instrument Switch on: Press the key for three seconds Set the clock: Press three times the key -> Options -> Date/Time Save measuring value: Save the measuring value by pressing the button below the symbol. The storage was successful when the number in front of the symbol increased.
- Page 10 It is not allowed to load the measuring head incorrect (stress, bending), otherwise it can be broken. Plug and remove the insertion probe of your RM1 straight into the recycling material. The instrument is not rainproof. Keep it in dry areas. When the device isn’t used for a longer period (2 months) or when the...
- Page 11 The bigger connector has to be connected to a USB slot on your PC. Start the LogMemorizer software on your PC and switch on your humimeter RM1. The data transfer can be started on your humimeter or on the software.
- Page 12 Carefully loose the protection cap on the humimeter RM1. At first plug in the side of the connector with the close plastic casing at the humimeter RM1. Then switch on the device.
- Page 13 Technical data RM1 (Art. Nr. 12109) Operation temperature 0°C to +50°C Storage temperature -20°C to +60°C Temperature compensation Automatically Data logger approximately 10.000 values Menu languages German, English, French, Italian, Spanish, Russian Power supply 4 pcs. 1.5 Volt AA Alkaline...
- Page 14 Technical data RM1 recycling-material probe (art. no. 12518) Resolution of display 0.5% water content 0.5°C temperature Measuring range 10% to 50% water content Operation temperature 0°C to +40°C Temperature measuring range -10°C to +80°C Dimension 1150 x 35 x 35 mm...
- Page 15 RM1 recycling- material probe straight into the recycling material. Do not move the RM1 probe crosswise to the insertion direction after plugging in. Do not drop the measuring head or use it for any ulterior purposes.
