Summary of Contents for humimeter.com BP1

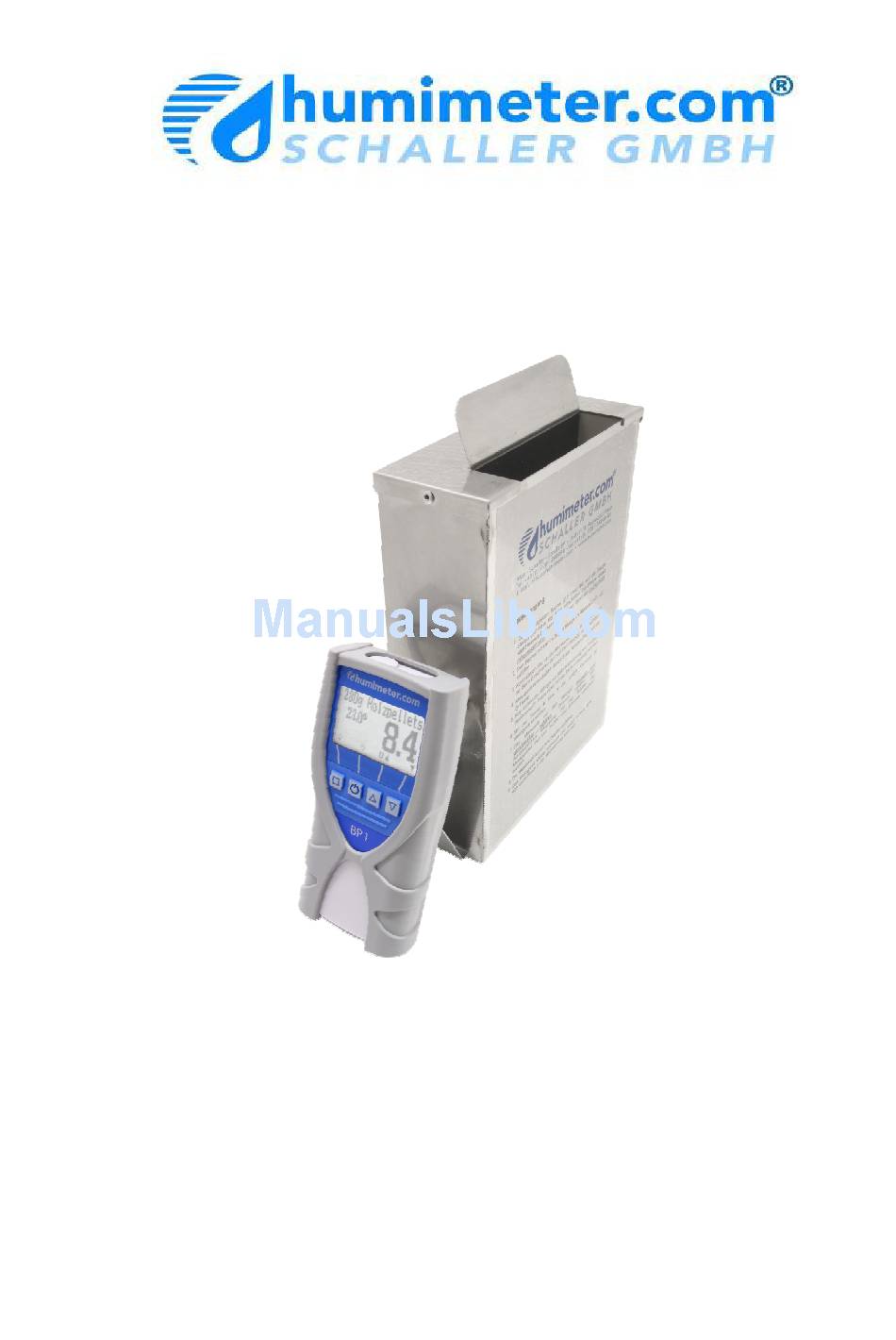

- Page 1 User manual Pellets moisture meter humimeter BP1 Version 2.1_en © Schaller GmbH 2014...
-
Page 2: Design Of The Device

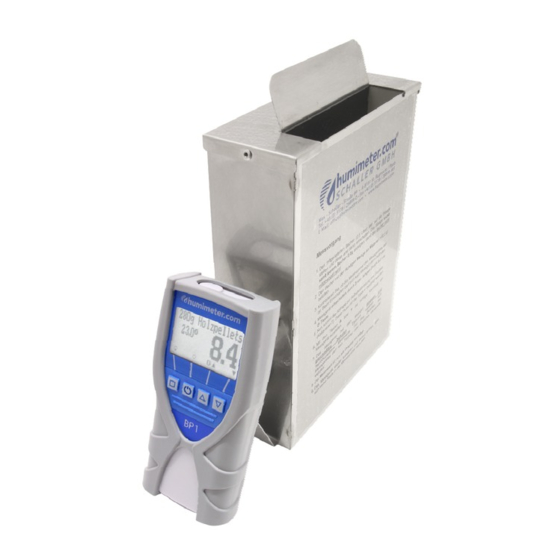

Design of the device Filling assistance Optional: PC Measuring Interface chamber Name of Moisture calibration content curve POWER Change the Button calibration curve wechseln Batteries slot (flipside) Page 2 version 2.1_en... -
Page 3: Measuring Procedure
Measuring procedure 1. Place the empty provided cup (0.5 litre) on the scale and turn the scale on. It shows 0,0 gram. 2. Fill up the cup with 280g sample material. (+/- 1,0g) 3. Make sure that the measuring chamber is completely empty. - Page 4 7. Fill up the measuring device with the sample pellets. The filling needs to be done slowly and constantly to ensure reproducible results. 8. The display shows the measuring result. To save the results in the storage menu press the ( button).
-
Page 5: Calibration Curves
CEN/TS 14774 once per sort and assign these to a sort calibration curve (special pellets 1 to 3). Fill up the BP1 and switch through all curves. The characteristic with the... - Page 6 Keypad symbols Menu level overview Measuring window: Rolling Menu Type selection menu Power ON / OFF Switch upper Switch lower Next calibration curve Save Previous calibration curve Hold Power off (3 sec.) Watch the saved data Store menu Suppliers data can be added Watch the saved data (logs) Menu:...
- Page 7 Changing batteries Your new device is provided with batteries. Change of batteries: 1.) Press with your finger onto the arrow of the battery cap und pull it back. 2.) Remove the empty batteries 3.) Put four new batteries in the device. Make sure the position of the battery poles is correct.
- Page 8 Transfer saved data to the PC To send your saved logs to the PC, connect the humimeter device to your PC using the USB cable that was delivered with your device. Carefully loose the protection cap on your humimeter and plug in the USB mini B connector.
- Page 9 Print saved data To print your saved data, connect the device to the printer using the printer cable that was delivered with your device. Carefully loose the protection cap on the humimeter. At first plug in the side of the connector with the close plastic casing at the humimeter.
-
Page 10: Exemption From Liability
In case of a faulty device, please send your device back to Schaller GmbH or your dealer. Include a short description of the failure. Use a protected package for shipping. (www.humimeter.com) Activation of the “super user” function 2 times - Options –... -
Page 11: Technical Data
260 x 70 x 250 mm app. 1,3 kg (with batteries) Weight IP 40 Degree of protection Scope of supply BP1 incl. plastic case digital scale (max.500g, 0,1g) measuring cup 0,5 liter 4 x 1,5Volt AA Alkaline batteries Optionally accessories USB interface for PC transfer... -
Page 12: Important ! Please Read
! IMPORTANT ! please read Most common reasons for miss readings • Product temperature out of application range Pellets below 0° C resp. above 40° C (32 to 104 ° F) may cause faulty measurements. The storage of cold pellets in a warm storage area usually creates condensed water which may lead to major measuring errors.
