3: OPERATIONS & MAINTENANCE
MANUAL

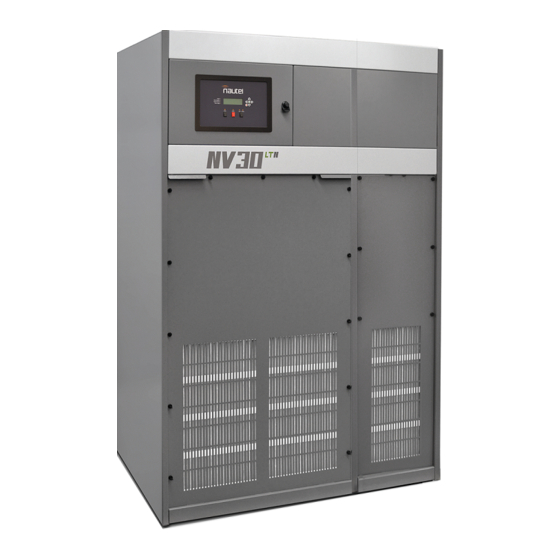

NV30LT-N
T
RANSMITTER
Document ID:
NHB-NV30LTN-OPS
Version:
0.1
Issue Date:
2015-03-01
Status:
Preliminary
Making Digital Radio
Work
