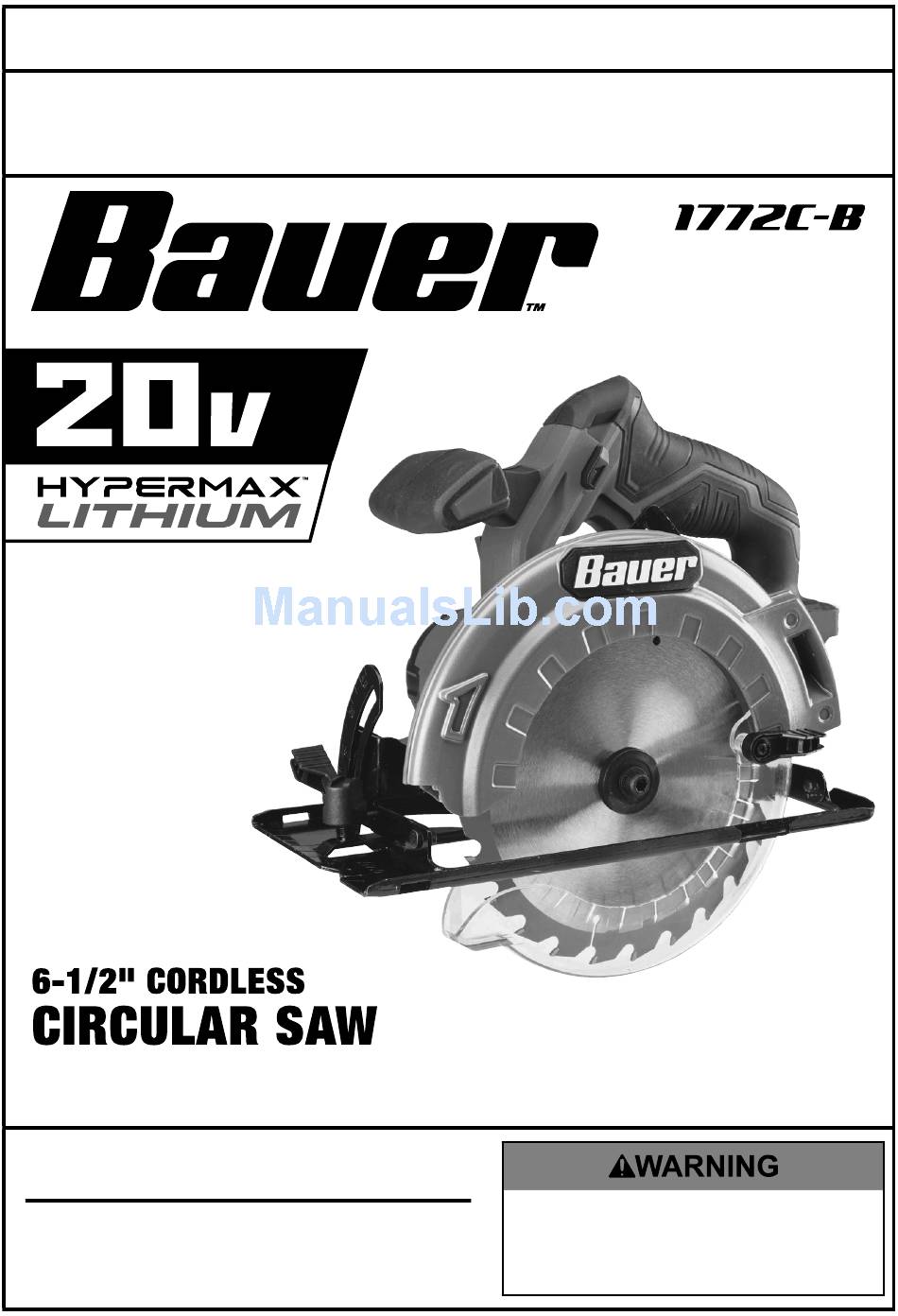

Cordless circular saw 20v hypermax lithium 6-1/2 in.
Hide thumbs
Table of Contents

Advertisement

Quick Links

Owner's Manual & Safety Instructions
Save This Manual
operating, inspection, maintenance and cleaning procedures. Write the product's serial number in the
back of the manual near the assembly diagram (or month and year of purchase if product has no number).
Keep this manual and the receipt in a safe and dry place for future reference.
When unpacking, make sure that the product is intact
and undamaged. If any parts are missing or broken,
please call 1-888-866-5797 as soon as possible.
©
Copyright
2017 by Harbor Freight Tools
No portion of this manual or any artwork contained herein may be reproduced in
any shape or form without the express written consent of Harbor Freight Tools.
Diagrams within this manual may not be drawn proportionally. Due to continuing
improvements, actual product may differ slightly from the product described herein.
Tools required for assembly and service may not be included.
Keep this manual for the safety warnings and precautions, assembly,
Visit our website at: http://www.harborfreight.com
Email our technical support at: productsupport@harborfreight.com
®
. All rights reserved.
Read this material before using this product.
Failure to do so can result in serious injury.
SAVE THIS MANUAL.
17d

Advertisement

Table of Contents
loading

Related Manuals for Bauer 1772C-B

Summary of Contents for Bauer 1772C-B

  • Page 1 Owner’s Manual & Safety Instructions Save This Manual Keep this manual for the safety warnings and precautions, assembly, operating, inspection, maintenance and cleaning procedures. Write the product’s serial number in the back of the manual near the assembly diagram (or month and year of purchase if product has no number). Keep this manual and the receipt in a safe and dry place for future reference.

  • Page 2: Table Of Contents

    Table of contents Safety ............2 Maintenance ..........12 Specifications ..........8 Parts List and Diagram ......14 Setup ............9 Warranty ............ 16 Operation ........... 10 WARNING SyMBOLS AND DEFINITIONS This is the safety alert symbol. It is used to alert you to potential personal injury hazards.

  • Page 3: Electrical Safety

    Electrical Safety Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock. personal Safety 1. Stay alert, watch what you are doing 4. Remove any adjusting key or wrench and use common sense when operating before turning the power tool on.

  • Page 4: Circular Saw Safety Warnings

    Battery tool use and care 1. Recharge only with the charger specified by 3. When battery pack is not in use, keep it away the manufacturer. A charger that is suitable from other metal objects, like paper clips, for one type of battery pack may create a risk coins, keys, nails, screws or other small metal of fire when used with another battery pack.
  • Page 5 9. causes and Operator prevention of Kickback: g. Use extra caution when making a ″plunge cut″ into existing walls or other • Kickback is a sudden reaction to a pinched, blind areas. The protruding blade may bound or misaligned saw blade, causing cut objects that can cause kickback.
  • Page 6 19. Blades must be rated to at least the 27. This product is not a toy. maximum speed marked on the tool. Keep it out of reach of children. 20. Maintain labels and nameplates on the tool. 28. People with pacemakers should consult their These carry important safety information.

  • Page 7: Vibration Safety

    Vibration Safety This tool vibrates during use. 2. Do not smoke during use. Nicotine reduces Repeated or long-term exposure to vibration may the blood supply to the hands and fingers, cause temporary or permanent physical injury, increasing the risk of vibration-related injury. particularly to the hands, arms and shoulders.

  • Page 8: Specifications

    Specifications Battery Bauer 20  V Li-ion (sold separately) No Load Speed 4000 RPM Maximum Blade Diameter 6-1/2″ (165mm) Arbor 5/8″ round Page 8 For technical questions, please call 1-888-866-5797. Item 63634...

  • Page 9: Setup

    Setup - Before Use: Read the ENTIRE IMpORTANT SAFETy INFORMATION section at the beginning of this manual including all text under subheadings therein before set up or use of this product. Note: For additional information regarding the parts listed in the following pages, refer to Parts List and Diagram on page 14.

  • Page 10: Operation

    Operating Instructions Read the ENTIRE IMpORTANT SAFETy INFORMATION section at the beginning of this manual including all text under subheadings therein before set up or use of this product. Tool Set Up TO pREVENT SERIOUS INJURy FROM AccIDENTAL OpERATION: Make sure that the Trigger is in the off-position and remove its Battery pack before performing any procedure in this section.

  • Page 11: General Operating Instructions

    Adjusting Fence 1. Loosen Fence Lock Knob and slide the Note: The ruler on the fence shows Fence to the desired width of cut. the approximate width of cut. 2. If needed, remove the Fence entirely. Otherwise, tighten the Fence Lock Knob after adjustment. WARNING! Tighten Fence Lock Knob before use.

  • Page 12: Maintenance

    Maintenance and Servicing procedures not specifically explained in this manual must be performed only by a qualified technician. TO pREVENT SERIOUS INJURy FROM AccIDENTAL OpERATION: Make sure that the Trigger is in the off-position and remove its Battery pack before performing any procedure in this section. TO pREVENT SERIOUS INJURy FROM TOOL FAILURE: Do not use damaged equipment.

  • Page 13: Troubleshooting

    Troubleshooting problem possible causes Likely Solutions Tool will not start. 1. Battery Pack not properly connected. 1. Remove Battery Pack, make sure there are no obstructions, reinsert the Battery Pack according to its shape (it should only fit one way), and press firmly until the Battery Pack locks in place.

  • Page 14: Parts List And Diagram

    parts List and Diagram pLEASE READ THE FOLLOWING cAREFULLy THE MANUFACTURER AND/OR DISTRIBUTOR HAS PROVIDED THE PARTS LIST AND ASSEMBLY DIAGRAM IN THIS MANUAL AS A REFERENCE TOOL ONLY. NEITHER THE MANUFACTURER OR DISTRIBUTOR MAKES ANY REPRESENTATION OR WARRANTY OF ANY KIND TO THE BUYER THAT HE OR SHE IS QUALIFIED TO MAKE ANY REPAIRS TO THE PRODUCT, OR THAT HE OR SHE IS QUALIFIED TO REPLACE ANY PARTS OF THE PRODUCT.

  • Page 15: Assembly Diagram

    Assembly Diagram Item 63634 For technical questions, please call 1-888-866-5797. Page 15...

  • Page 16: Warranty

    Limited 90 Day Warranty Harbor Freight Tools Co. makes every effort to assure that its products meet high quality and durability standards, and warrants to the original purchaser that this product is free from defects in materials and workmanship for the period of 90 days from the date of purchase. This warranty does not apply to damage due directly or indirectly, to misuse, abuse, negligence or accidents, repairs or alterations outside our facilities, criminal activity, improper installation, normal wear and tear, or to lack of maintenance.
