Operating Manual
1
B
A
A:
EXTEND TRIPOD LEGS.
B:
POSITION GRIP BALL HEAD.
4
USING THE MOUNTING
ADAPTER SECURE THE
CAMERA TO THE TRIPOD.
6
OPEN THE SIDE DOOR AND INSERT THE SD CARD.
Lt
2
ROTATE GRIP BALL HEAD
UNTIL SECURE ON TRIPOD.
5
7
INSERT THE I/O CABLE.

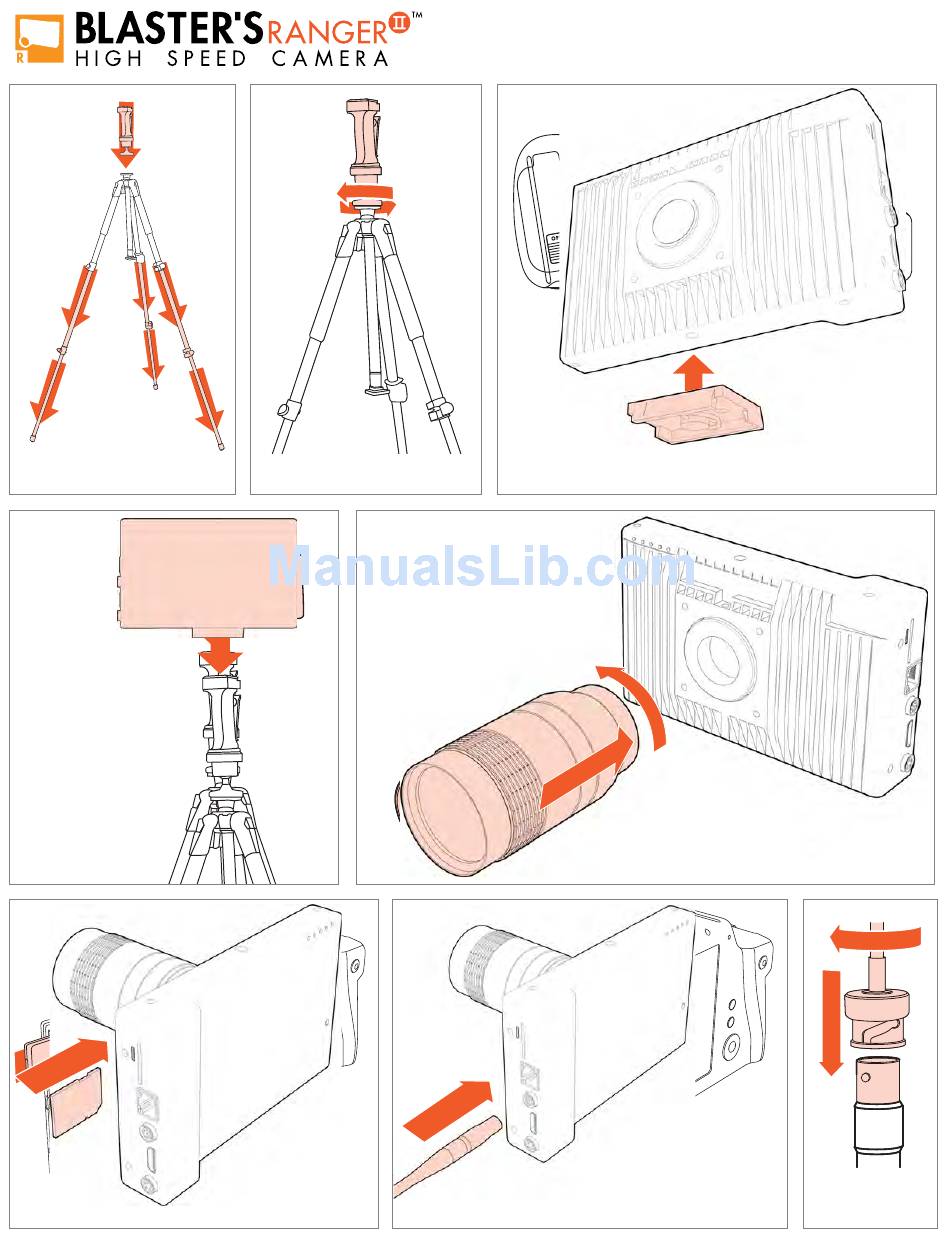

QUICK START GUIDE
3
SECURE THE MOUNTING ADAPTER ON TO CAMERA.
ENSURE A TIGHT FIT.
REMOVE THE LENS COVERS FROM BOTH THE
CAMERA AND THE LENS THEN ATTACH THE
CAMERA LENS TO THE CAMERA AND TWIST
INTO PLACE.
8
CONNECT THE
TRIGGER CABLE
TO THE I/O CABLE.
Advertisement
Related Manuals for MREL Blaster's Ranger II LT
Summary of Contents for MREL Blaster's Ranger II LT
-
Page 1: Quick Start Guide
QUICK START GUIDE EXTEND TRIPOD LEGS. ROTATE GRIP BALL HEAD SECURE THE MOUNTING ADAPTER ON TO CAMERA. POSITION GRIP BALL HEAD. UNTIL SECURE ON TRIPOD. ENSURE A TIGHT FIT. USING THE MOUNTING ADAPTER SECURE THE CAMERA TO THE TRIPOD. REMOVE THE LENS COVERS FROM BOTH THE CAMERA AND THE LENS THEN ATTACH THE CAMERA LENS TO THE CAMERA AND TWIST INTO PLACE. - Page 2 OPEN FASMOTION OR ANY BROWSER, FIND THE CONNECT AC ADAPTER TO A CAMERA AND SELECT THE POWER SOURCE AND THEN INSERT CONNECT THE ETHERNET SUITABLE FRAME RATE THE POWER CABLE INTO THE CAMERA CABLE BETWEEN CAMERA AND LAPTOP AND RESOLUTION POWER ON THE CAMERA PRESS THE TRIGGER SWITCH AND THE SUBJECT WILL BE VIDEO RECORDED.
