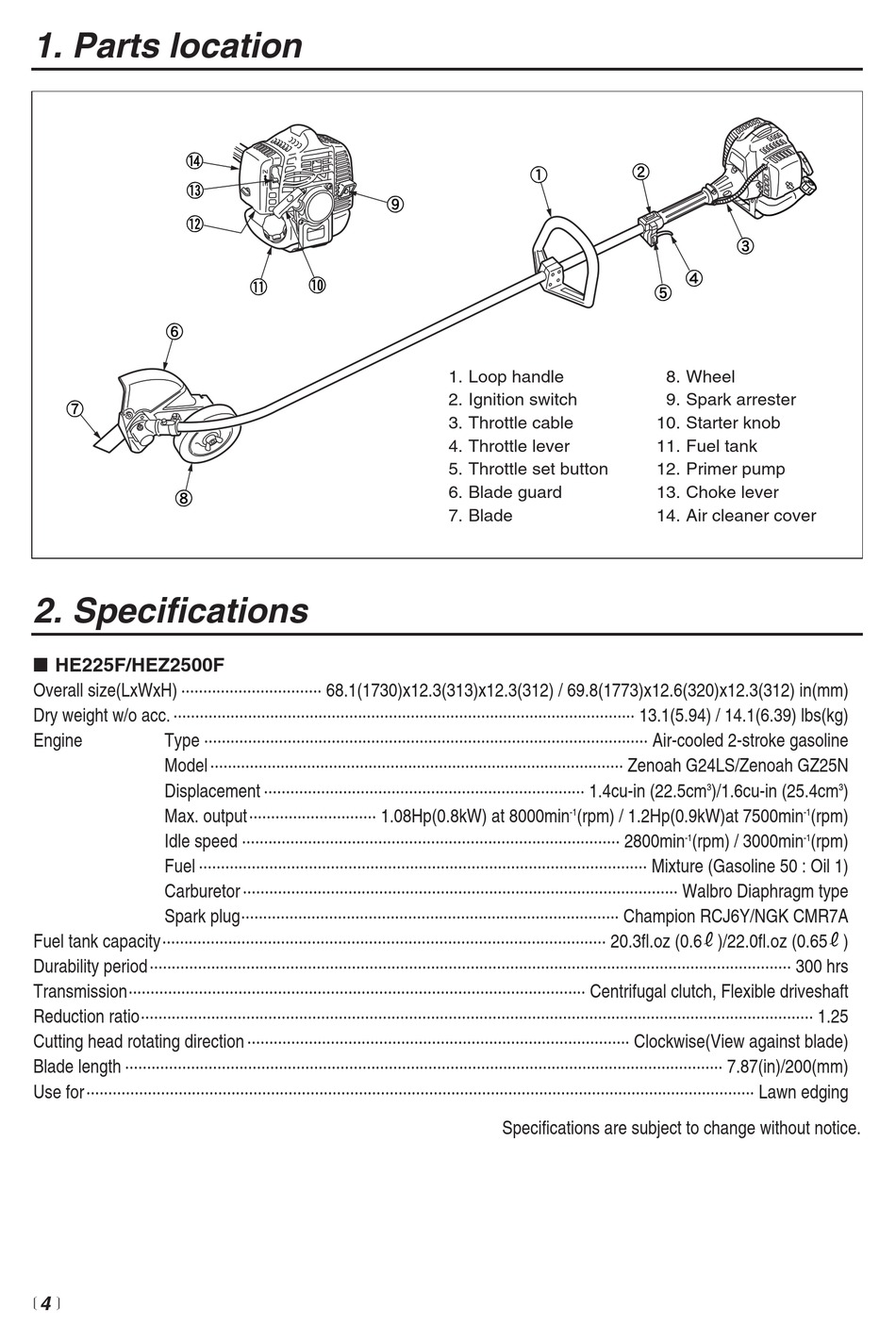

1. Parts location
2. Specifications
■ HE225F/HEZ2500F
Overall size(LxWxH) ································ 68.1(1730)x12.3(313)x12.3(312) / 69.8(1773)x12.6(320)x12.3(312) in(mm)
Dry weight w/o acc. ········································································································· 13.1(5.94) / 14.1(6.39) lbs(kg)
Engine
Type ····································································································· Air-cooled 2-stroke gasoline
Model ······························································································ Zenoah G24LS/Zenoah GZ25N
Displacement ········································································· 1.4cu-in (22.5cm
Max. output····························· 1.08Hp(0.8kW) at 8000min
Idle speed ······················································································ 2800min
Fuel ······································································································ Mixture (Gasoline 50 : Oil 1)
Carburetor ··································································································· Walbro Diaphragm type
Spark plug······················································································ Champion RCJ6Y/NGK CMR7A
Fuel tank capacity····································································································· 20.3fl.oz (0.6 )/22.0fl.oz (0.65 )
Durability period·················································································································································· 300 hrs
Transmission········································································································ Centrifugal clutch, Flexible driveshaft
Reduction ratio························································································································································· 1.25
Cutting head rotating direction ······················································································· Clockwise(View against blade)
Blade length ········································································································································ 7.87(in)/200(mm)
Use for························································································································································ Lawn edging
4
1. Loop handle
2. Ignition switch
3. Throttle cable
4. Throttle lever
5. Throttle set button
6. Blade guard
7. Blade
(rpm) / 1.2Hp(0.9kW)at 7500min
-1
Specifications are subject to change without notice.
8. Wheel
9. Spark arrester
10. Starter knob
11. Fuel tank
12. Primer pump
13. Choke lever
14. Air cleaner cover
3
)/1.6cu-in (25.4cm
(rpm)
-1
(rpm) / 3000min
(rpm)
-1
-1
3
)
