Daikin FTKB09AXVJU Service Manual page 13

Inverter Single Split
1.2.2 Indoor PCB: FTKB18/24AXVJU, FTKN18/24AXVJU, FTXB18/24AXVJU,

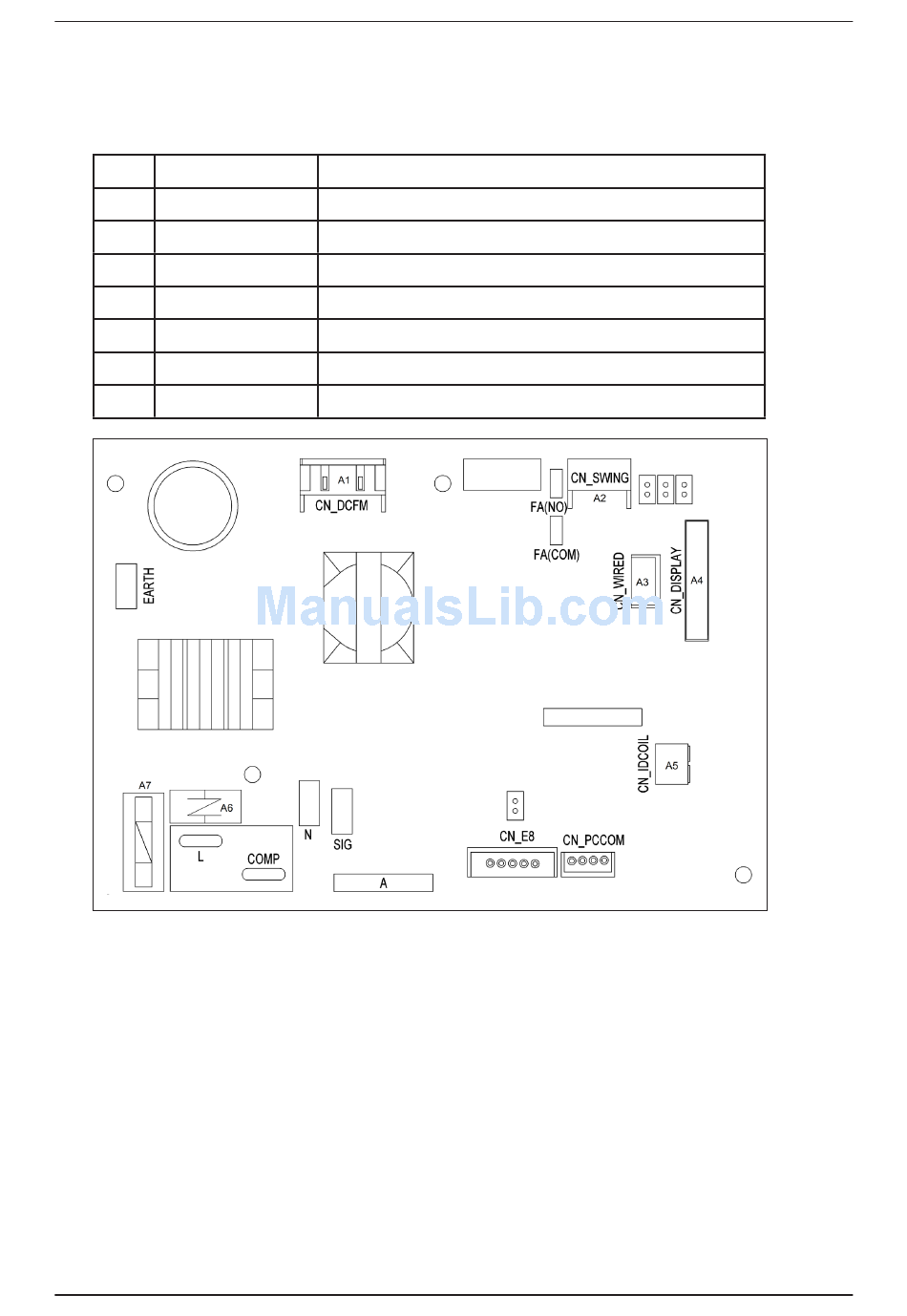

1.2.2.1 Main PCB: W_2_04A ; W_2_04B
Item Indication on PCB
1 A1
2 A2
3 A3
4 A4
5 A5
6 A6
7 A7
5
FTXN18/24AXVJU
Description
Connector for fan motor
Connector for swing motor
Connector for fan motor feedback
Fuse
Varistor
Connector for wired controller
Connector for signal receiver PCB
