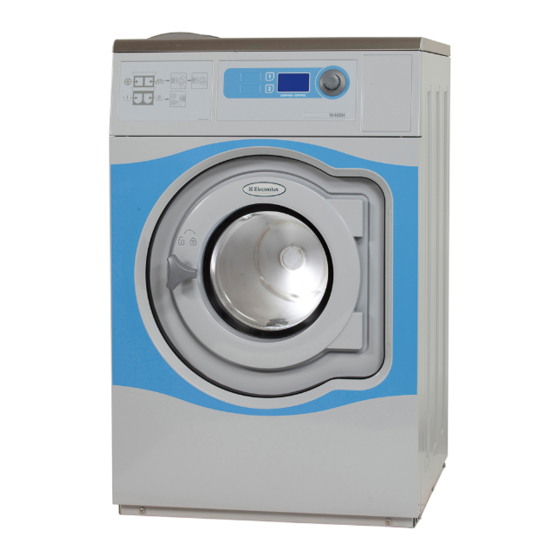

Electrolux W475N Installation Manual
Classic control
Hide thumbs
Also See for W475N:
- Specifications (2 pages) ,
- Service manual (140 pages) ,
- Installation manual (60 pages)
Related Manuals for Electrolux W475N
Summary of Contents for Electrolux W475N
- Page 1 Installation manual W475N, W485N, W4105N, W4130N, W4180N, W4250N, W4330N Classic Control 438 9211-01/EN 08.27...
-
Page 3: Table Of Contents
Contents Contents Safety precautions ..................5 Technical data ....................7 Installation ....................11 Siting....................11 Floor ....................11 Casting a plinth..................12 Installation on an excisting floor or foundation ........14 Installation on vinyl floor coverings .............15 Installation, ships, oil-rigs, etc .............16 Welding a foundation ................17 Installing the machine ................18 Water connections ................19 Drain connection .................21 Steam connection ................22... -
Page 5: Safety Precautions
Safety Precautions Safety Precautions The machine is only intended for water-wash use. Do not allow minors to use the machine. Do not hose down the machine with water. The machine's door lock must under no circumstances be bypassed. If the machine develops a fault, this must be reported to the person in charge as soon as possible. -
Page 7: Technical Data
Technical data Technical data W475N W485N W4105N W4130N W4180N W4250N W4330N Innerdrum volume litres 105 130 180 250 330 diameter 520 520 595 595 650 25 Drum speed wash extraction 528 528/694 494/649 494/649 41/619 446/58 42/561 Heating 2.0/3.0/ 2.0/3.0/5.6 3.0/6.5/ 3.0/... - Page 8 Steam connection Drain Liquid detergent supply Control panel Soap box Water reuse Door opening, W475N, W485N: ø10, W4105N: ø65, W410N: ø95, W4180N, W4250N, W40N: ø45 W475N 690 1115 55 45 100 215 1010 10 W485N 70 1115 55 45 100 215 1010 10...
- Page 9 Technical data W475N W485N W4105N W4130N W4180N W4250N W4330N Frequency of the dynamic force Max floor load at extraction kN 1.1±2.8 1.2±.1 1.4±.5 1.7±4.1 2.2±4.7 2.8±5. .8±6.0...
-
Page 11: Installation
Installation Installation Leave the machine on the transport pallet until it can be placed in the final, prepared position. Siting Install the machine close to a floor drain or open drain. In order to make installation and servicing the machine easier the following clearances are recommended: •... -
Page 12: Casting A Plinth
Installation Casting a plinth A plinth should be used where the existing floor is less than 100 mm thick or in order to ensure that the machine is above the level of any water leakages. The plinth should be approximately 150 - 200 mm in height. - Page 13 They shall be placed between the machine and foundation. • Mount the expenderbolts in the drilled holes and fasten the machine. Don´t forget the washers. W475N 685 660 495 95 115 65 W485N 725 660 495 445 115 665...
-
Page 14: Installation On An Excisting Floor Or Foundation
Installation Installation on an excisting floor or foundation Instead of braking up the excisting floor or foun- dation, chemical bolts M16 can be used. A set of four HILTI HVU bolts can be ordered from our Spares Dept, part No. 471 6699-64. Mounting instruction 5917 •... -
Page 15: Installation On Vinyl Floor Coverings
Installation Installation on vinyl floor coverings If chemical anchors are to be used, drill holes for the mounting points. Cut the flooring material around the washers (washers and sealant are supplied in installation kit). Apply sealant to the hole cut in the vinyl floor covering. -
Page 16: Installation, Ships, Oil-Rigs, Etc
Installation Installation, ships, oil-rigs, etc Leave the machine on the transport pallet until it can be placed in the final, prepared position. Siting Install the machine close to a deck drain or open drain. In order to make installation and servicing the machine easier the following clearances are recommended: Floor In this type of machine, the drum is attached directly to the frame. -
Page 17: Welding A Foundation
Bolt M16x45 Washer 44/16.5x6 ��� Washer 72x72x8 Welded Washer, welded 66x40x4 FRONT 1. L-profile, dim. R W475N-W410N 80x80x8 W4180N-W40N 100x100x10 587 A W475N 660 685 495 80 95 115 0 455 85 W485N 660 725 495 80 445 115 0 505 85... -
Page 18: Installing The Machine
Installation Installing the machine To install the machine: • Remove the transport packaging • Remove the front panel. • Remove the machine from the transport pallet and locate it on the bolts. When the machine is lifted off the pallet: Make sure that the machine does not come down on the floor with either of the rear corners first. -
Page 19: Water Connections
Installation Water connections All intake connections to the machine are to be fitted with manual shut-off valves and filters, to facilitate installation and servicing. Water pipes and hoses should be flushed clean before installation. After installation hoses should hang in gentle arcs. All connectors present on the machine must be connected up. - Page 20 Installation Water type Water connection cold and cold cold and W475N, W485N, cold cold*/ W4105N W410N 528 * For detergent container. W4180N, W4250N, W40N 59...
-
Page 21: Drain Connection
Installation Drain connection Connect a 75 mm (") pipe or rubber hose to the machine’s drain pipe, ensuring a downward flow from the machine. Avoid sharp bends which may prevent proper draining. The drainage pipe should be located over a floor drain, drainage channel or the like so that the distance between the outlet and the drain is at least 25 mm (1"). -
Page 22: Steam Connection
Installation Steam connection The water supply to the machine should be fitted with manual shut-off valves and filters to facili- tate installation and servicing. The connection hose must be of type ISO/107- 198 or equivalent. Connection size at filter: DN 15 (BSP 1/2"). Steam pressure required: 5861 •... -
Page 23: Connection Of External Liquid Supplies
Installation Connection of external liquid supplies Electrical installation must be carried out by an authorized personnel! All optional equipment connected must be EMC-approved to EN 50081-1 or EN 50082- Distribution card A can be used to control exter- nal functions, output and input signals. 51 Outputs (110-240V AC): Only Classic Control... - Page 24 Installation PCB (Coges) X70:1 X70:2 X70:2 X70: Available, signal when door is closed but program not started. Booked. X70:3 X70:4 Booked. Closing relay. X70:4 PCMX X70:1 Start 611 X70:2 Start X70: "Go on" X70:4 X70:1 Central Payment (France)/External start X70:2 X70:1 L (20V), output X70:2...
- Page 25 Installation Option card spare jumpers There are some possibilities to alter the standard parameters in the wash programs by moving or adding jumpers on the option card. • When adding a jumper on N or M gives warm rinses instead of cold. M shall be used on W620, 60 and N on W640, 655 and 675.
- Page 26 Installation • When adding a jumper on O there will be no prewash in the programs. The timer rapid advances the prewash automatically. Remember that "Delicate" is always without prewash. • When adding a jumper on P there will be two rinses instead of three.
- Page 27 Installation • In standard position on R, low level is used in prewash, main wash and high level in rinses. If jumper is moved to S it will be high level also in prewash and mainwash. 5606...
-
Page 28: Electrical Installation
Installation Electrical installation Electrical installation must be carried out by an authorized personnel! 1NAC Machines with frequency-controlled motors can be incompatible with certain types of earth leakage circuit breaker. It is important to know that the machines are designed to provide a high level of personal safety, which is why items of external equipment such as earth leakage circuit breakers 52... - Page 29 Installation Three-phase connection: Connect the earth, neutral and phase wires as shown in example ”AC” and ”N AC” in the figure. When the installation is completed, check: • that the drum is empty. • that the machine operates by turning on the mains switch, starting the machine and using RAPID ADVANCE to reach the spin cycle (see operations manual).
- Page 30 Installation W475N Heating Voltage Total Fuse alternative alternative No heating 190-200 V AC or Steam 20-240 V 1 AC heating 200-240 V AC 240 V AC 0.75 80-415 V /N AC El heating 200 V AC...
- Page 31 Installation W485N Heating Voltage Total Fuse alternative alternative No heating 120 V 1 AC or Steam 190-200 V AC heating 208-240 V 1 AC 200-240 V AC El heating 200 V AC 20-240 V 1 AC 20-240 V 1 AC 20-240 V 1 AC 208-240 V 1 AC 20-240 V 1 AC...
- Page 32 Installation W4105N Heating Voltage Total Fuse alternative alternative No heating 190-200 V AC or Steam 200-240 V AC heating 80-415 V /N AC 415 V N AC 415-480 V AC 400-415 V /N AC El heating 200 V AC 200 V AC 20 V AC 20 V AC...
- Page 33 Installation W4130N Heating Voltage Total Fuse alternative alternative No heating 190-200 V AC or Steam 208-240 V 1 AC heating 200-240 V AC 20-240 V 1 AC 80-415 V /N AC 415 V N AC 400-415 V /N AC 415-480 V AC El heating 200 V AC...
- Page 34 Installation W4180N Heating Voltage Total Fuse alternative alternative No heating 190-200 V AC or Steam 208-240 V 1 AC 200-240 V AC heating 400-415/20 V /N AC 80-415 V /N AC 415 V N AC 415-480 V AC 200 V AC El heating 220-240 V 1 AC...
- Page 35 Installation W4250N Heating Voltage Total Fuse alternative alternative 190-200 V AC No heating 208-240 V 1 AC or Steam 200-240 V AC heating 80-415 V /N AC 415-480 V AC 200 V AC 1.2 El heating 20 V AC 17.2 220-240 V AC...
- Page 36 Installation W4330N Heating Voltage Total Fuse alternative alternative No heating 190-200 V AC or Steam 200-240 V AC 80-415 V /N AC heating 415-480 V AC 200 V AC 15.4 El heating 220-20 V AC 19.2 20 V AC 240 V AC...
-
Page 37: Function Checks
Function checks Function checks Perform the following checks once the machine is installed: • Open the manual water valves. • Turn on the power at the external switch. • Choose a high-temperature program. • Put detergent i compartment 2. • Press the START button or if equipped with coin-meter, insert coin(-s). Check: •... - Page 40 Share more of our thinking at www.electrolux.com...
